Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

• See Fig 1
• See Fig 3
• See Fig 5
• See Fig 6
• See Fig 7
• WIPERS INOPERATIVE - ONE OR MORE MODES

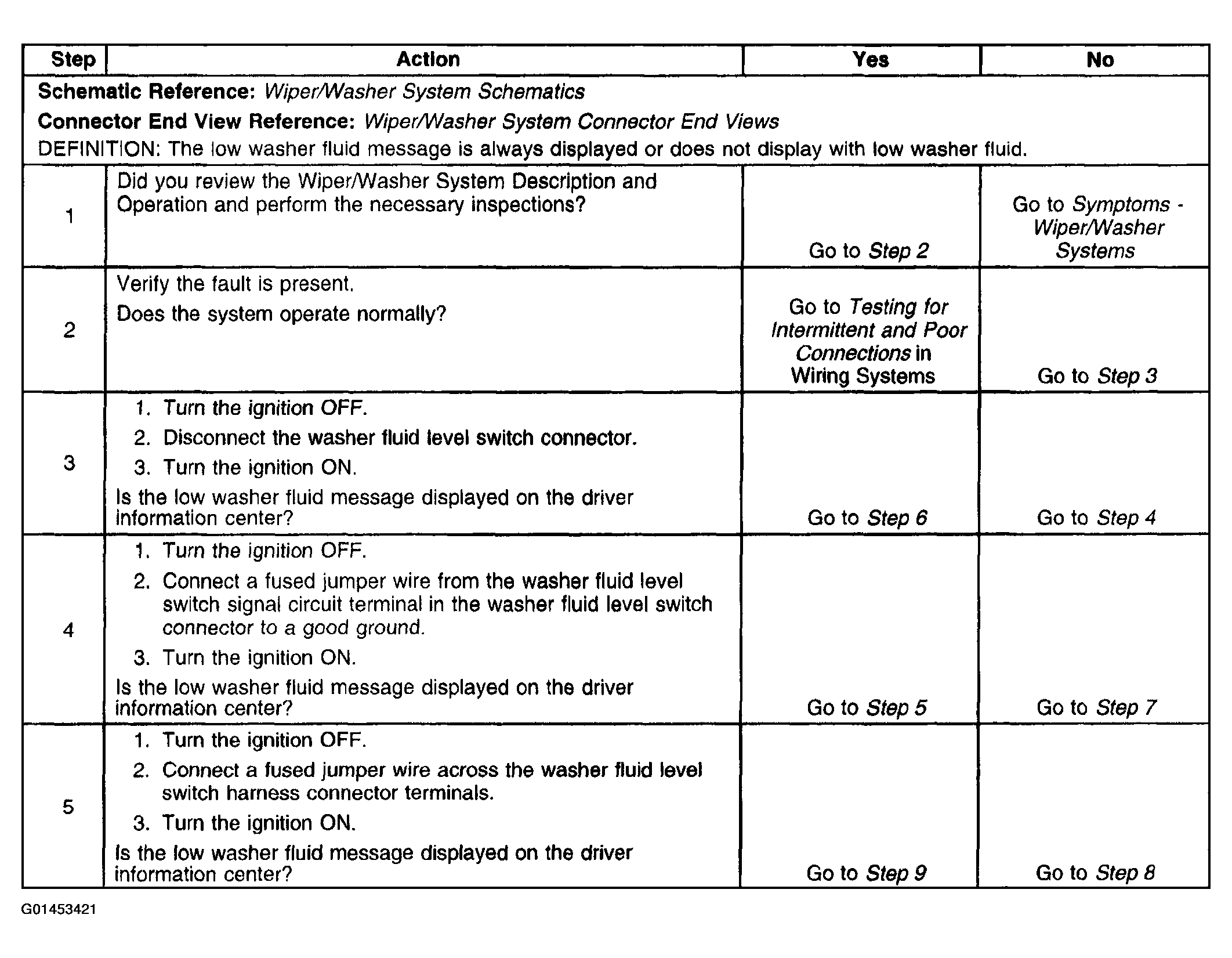

  Fig 1: Low Washer Fluid Indicator Malfunction (1 Of 2)

  Courtesy of GENERAL MOTORS CORP.

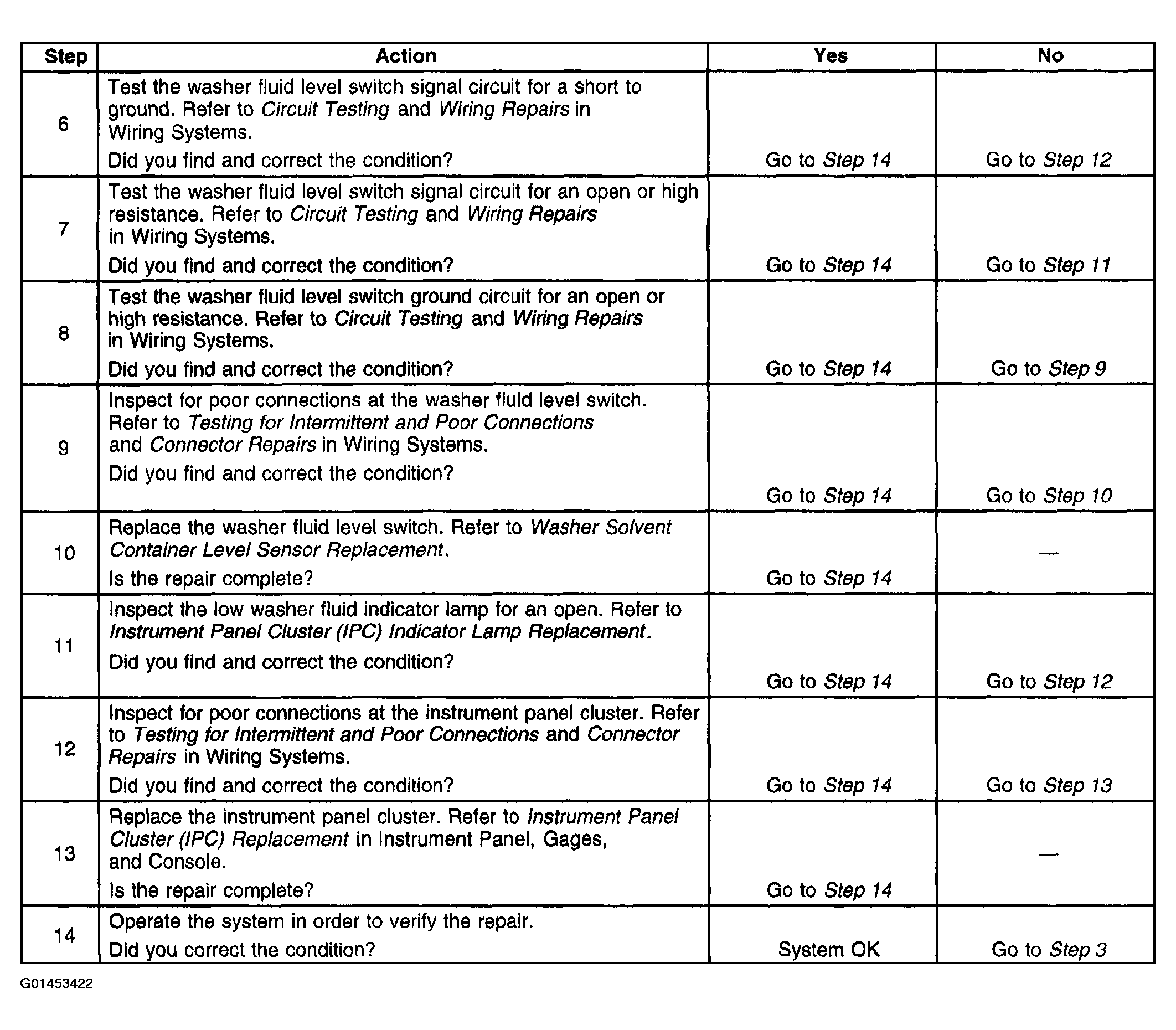

Fig 2: Low Washer Fluid Indicator Malfunction (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

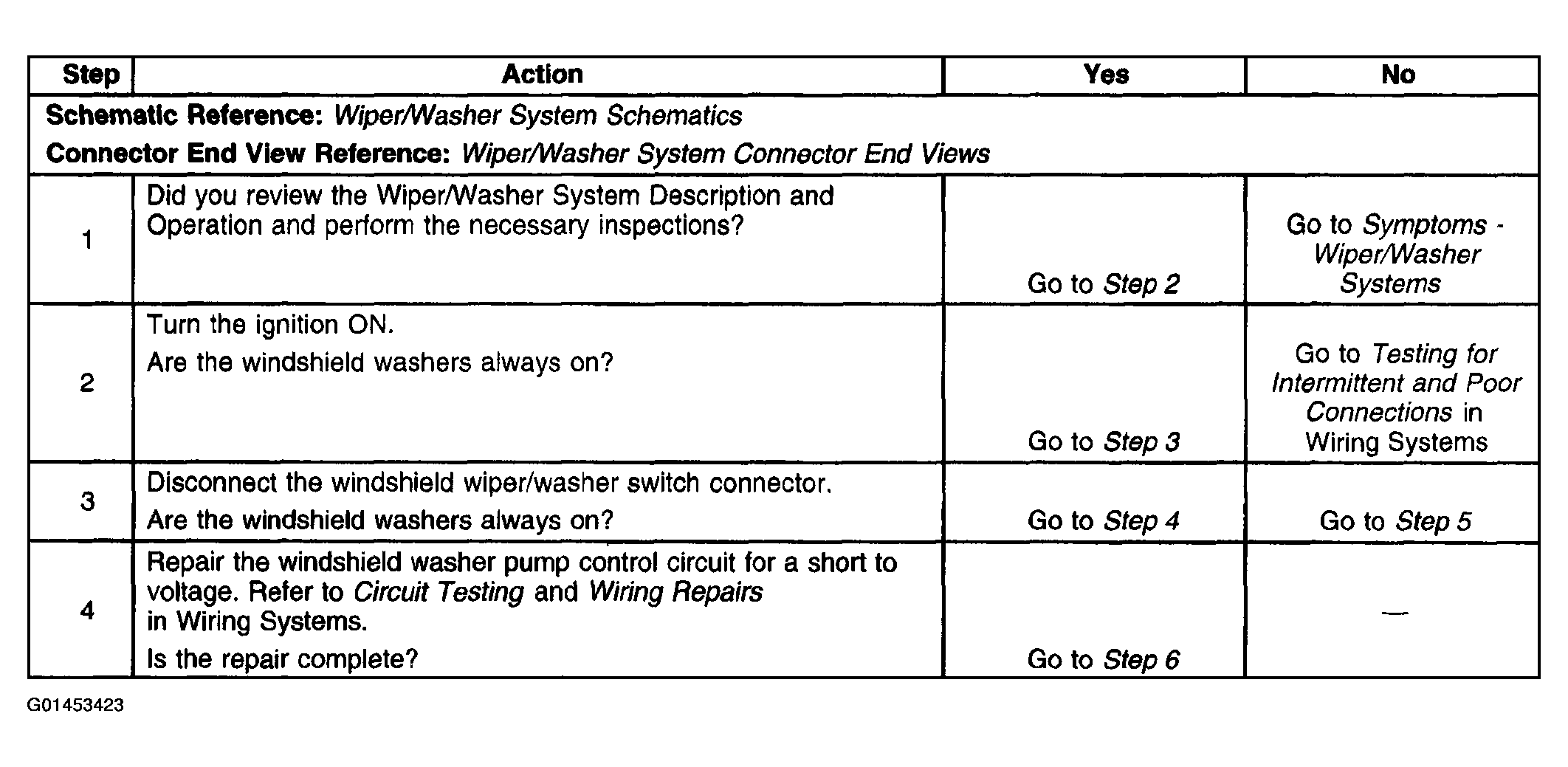

Fig 3: Diagnosis Procedures - Washers Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

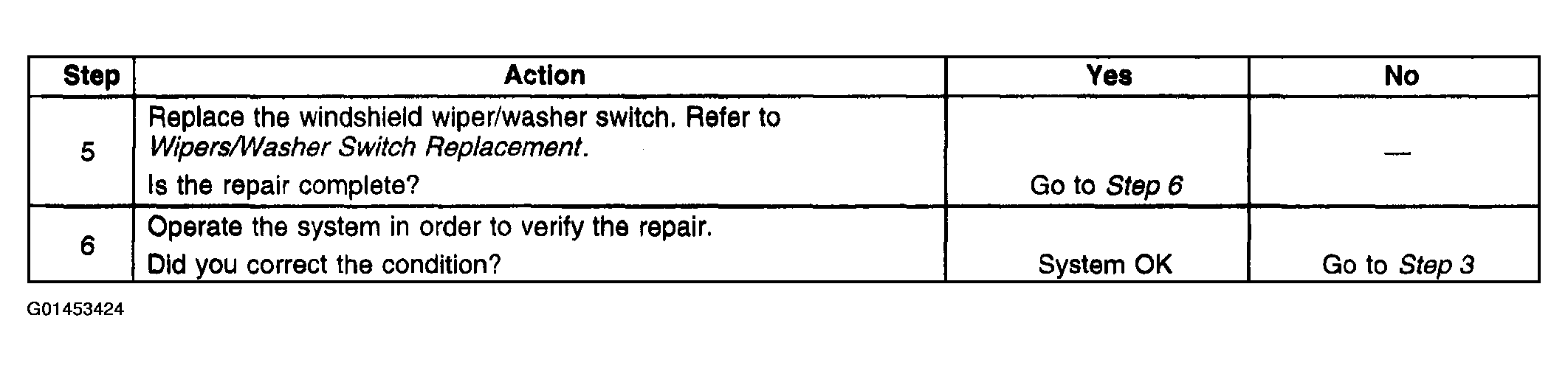

Fig 4: Diagnosis Procedures - Washers Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

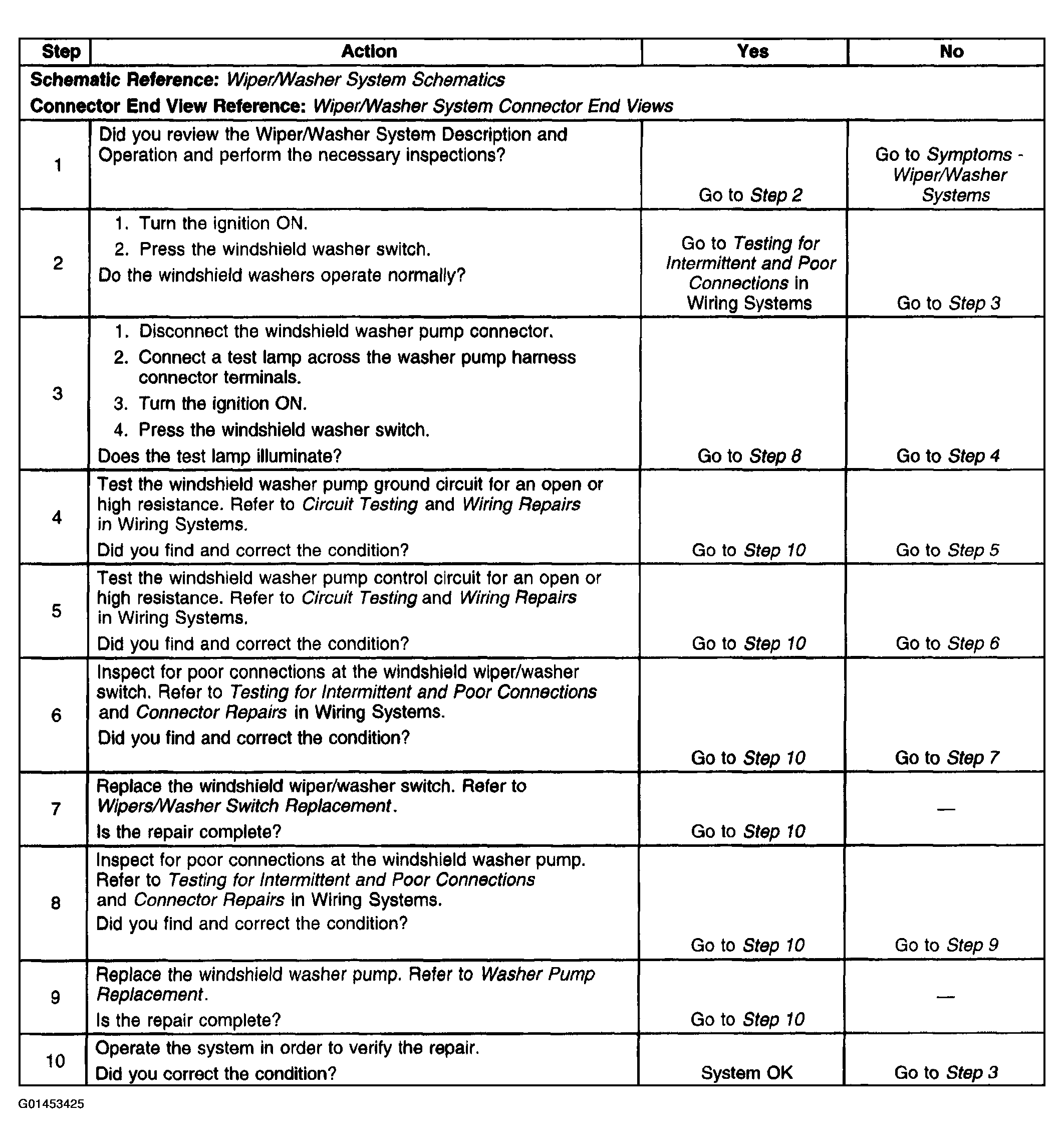

Fig 5: Washers Inoperative

Courtesy of GENERAL MOTORS CORP.

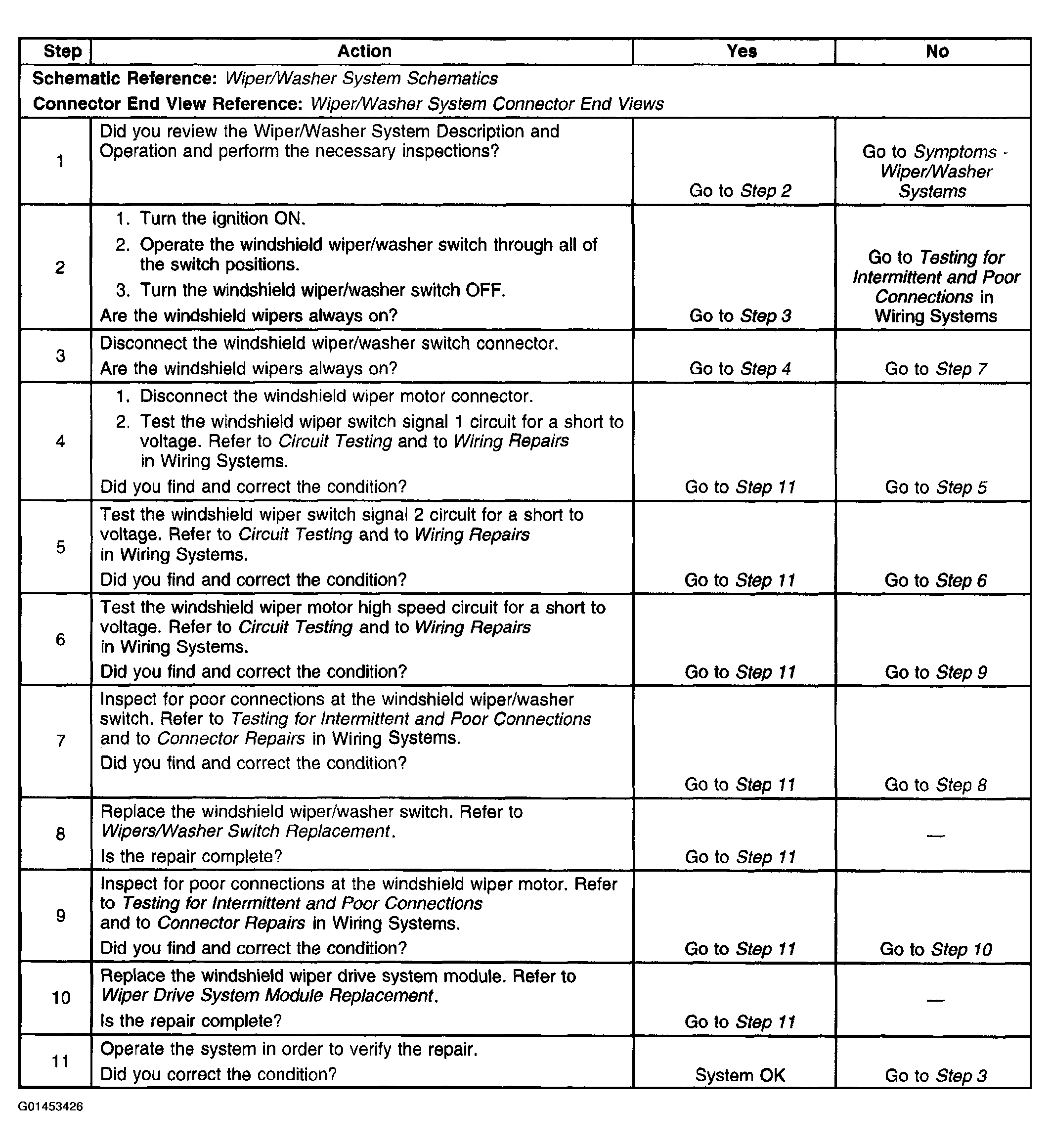

Fig 6: Wipers Always On

Courtesy of GENERAL MOTORS CORP.

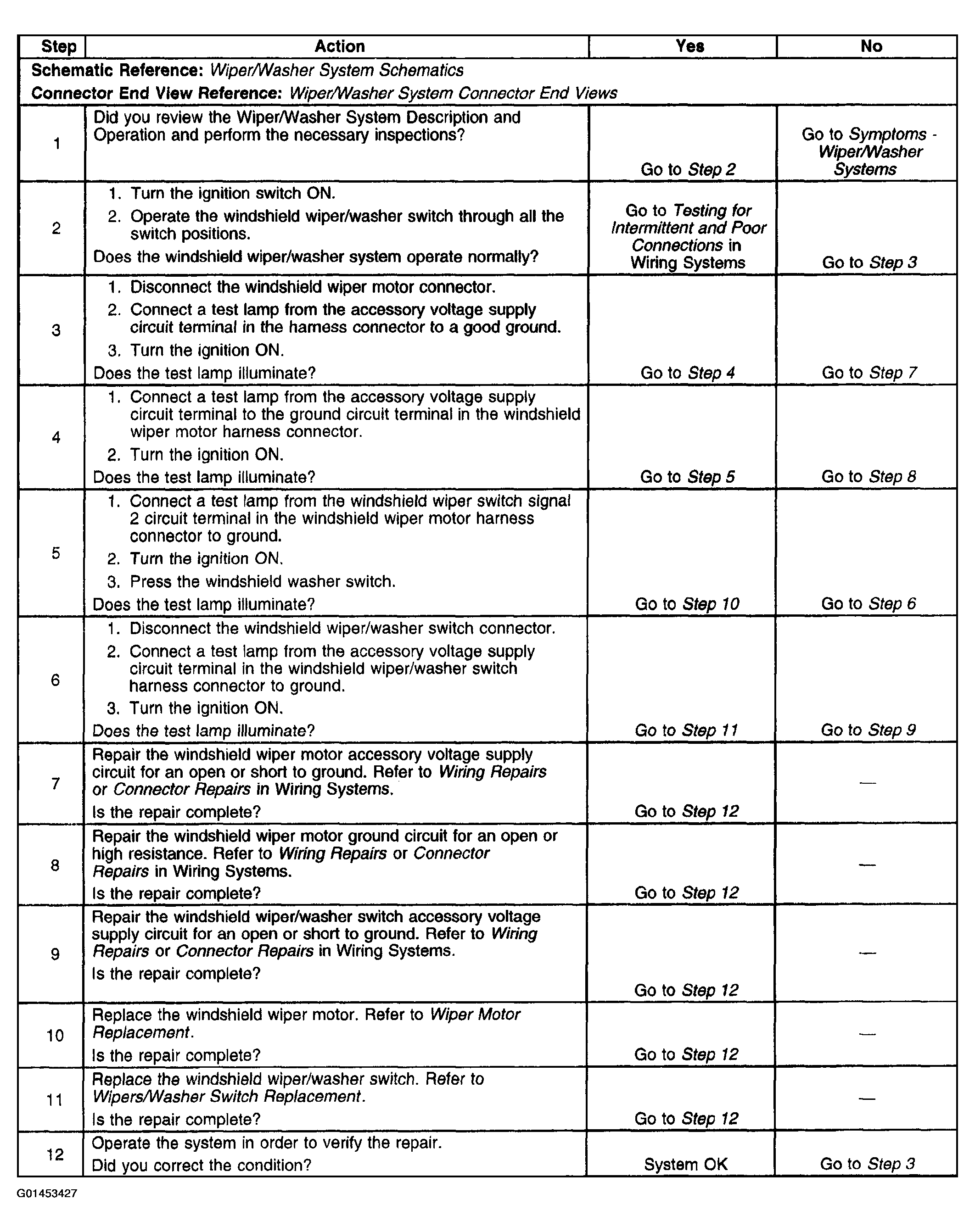

Fig 7: Wipers Inoperative - All Modes

Courtesy of GENERAL MOTORS CORP.
