Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws retaining the tail/turn signal lamp assembly to the rear fascia.
  2. Remove the lamp from the fascia to gain access to the tail and turn signal lamp sockets.
  3. Remove the sockets from the lamp assembly.
  4. Remove the bulbs from the sockets, if replacing the bulbs.
  5. Remove the lamp from the vehicle.

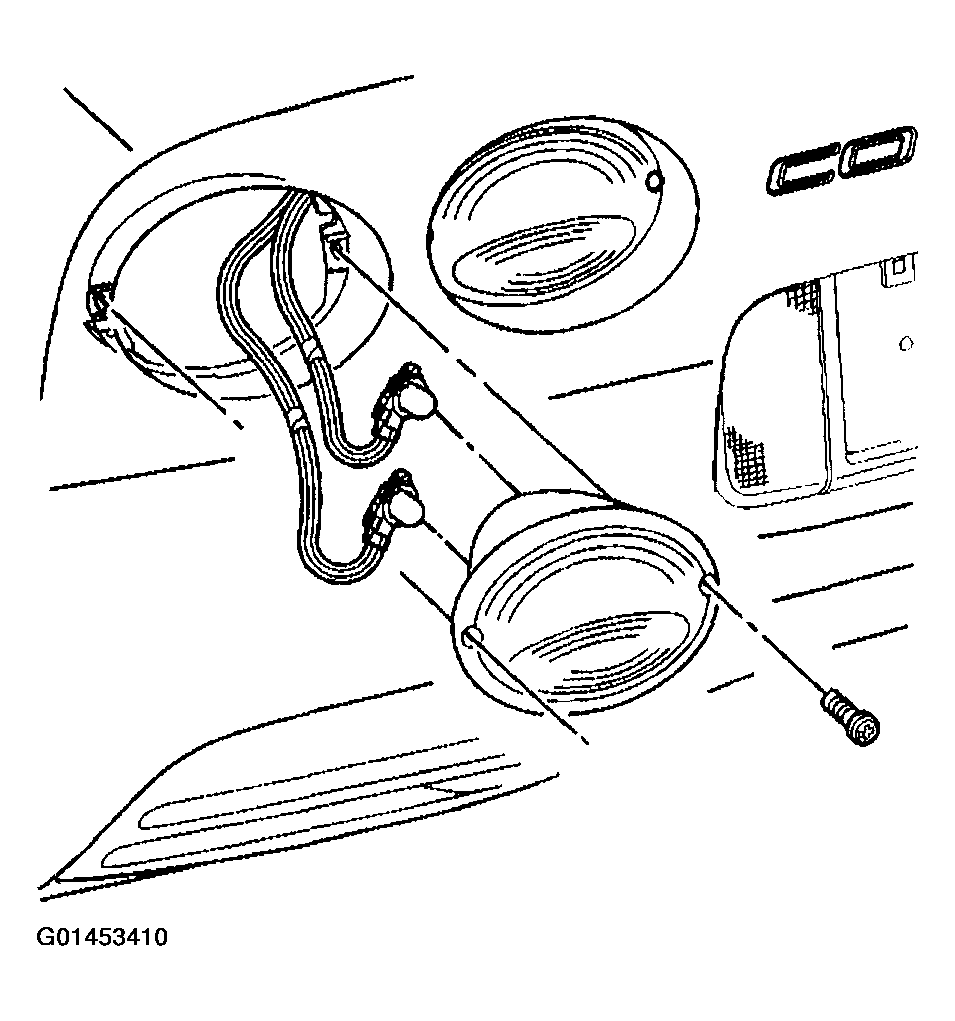

    Fig 1: Removing Lamp From Vehicle
    G01453410Courtesy of GENERAL MOTORS CORP.
