Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tail/turn signal lamp. Refer to TAIL/TURN SIGNAL LAMP REPLACEMENT (EUROPE, JAPAN) .
  2. Remove the rear fog lamp socket from the rear fog lamp assembly.

    Access the rear fog lamp through the tail lamp opening.

  3. Remove the bulb from the socket.

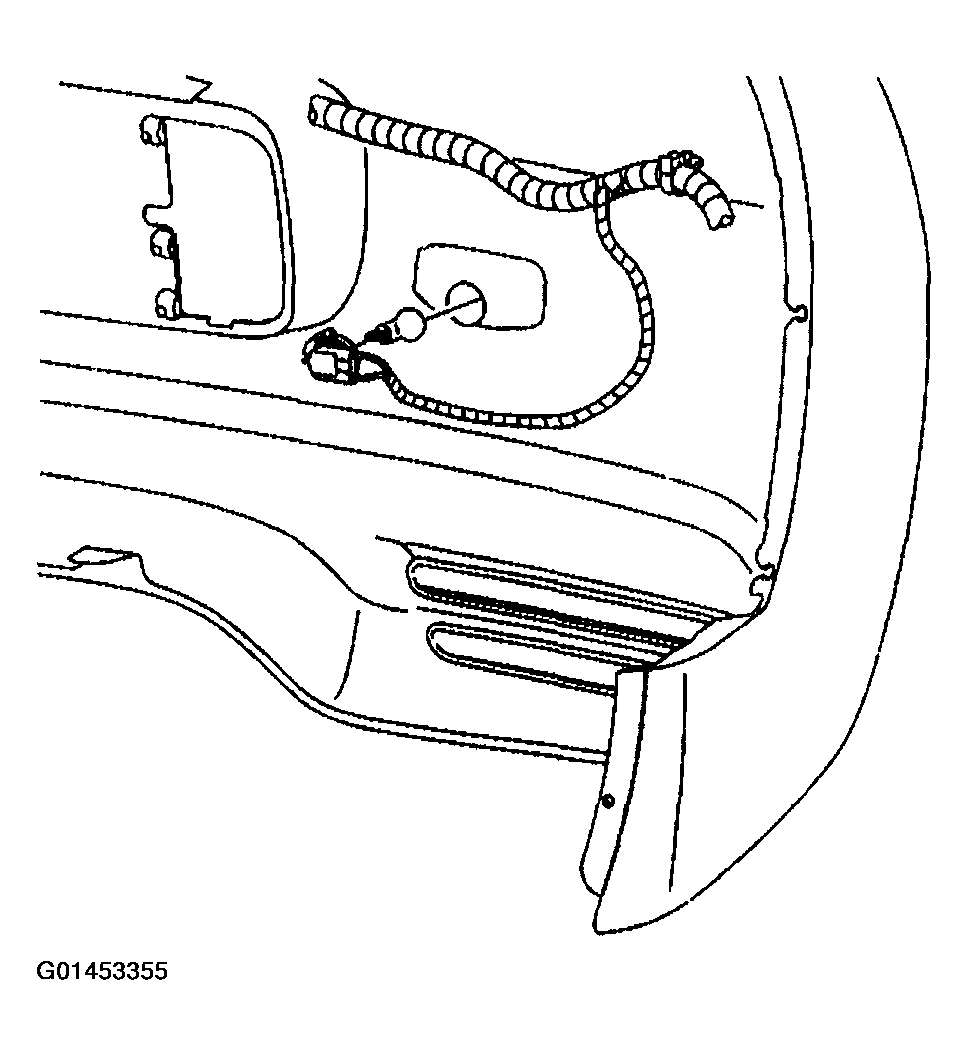

    Fig 1: Removing Bulb From Socket
    G01453355Courtesy of GENERAL MOTORS CORP.
