Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Install the socket to the lamp.
  3. Install the tail/turn signal lamp. Refer to TAIL/TURN SIGNAL LAMP REPLACEMENT (EUROPE, JAPAN) .

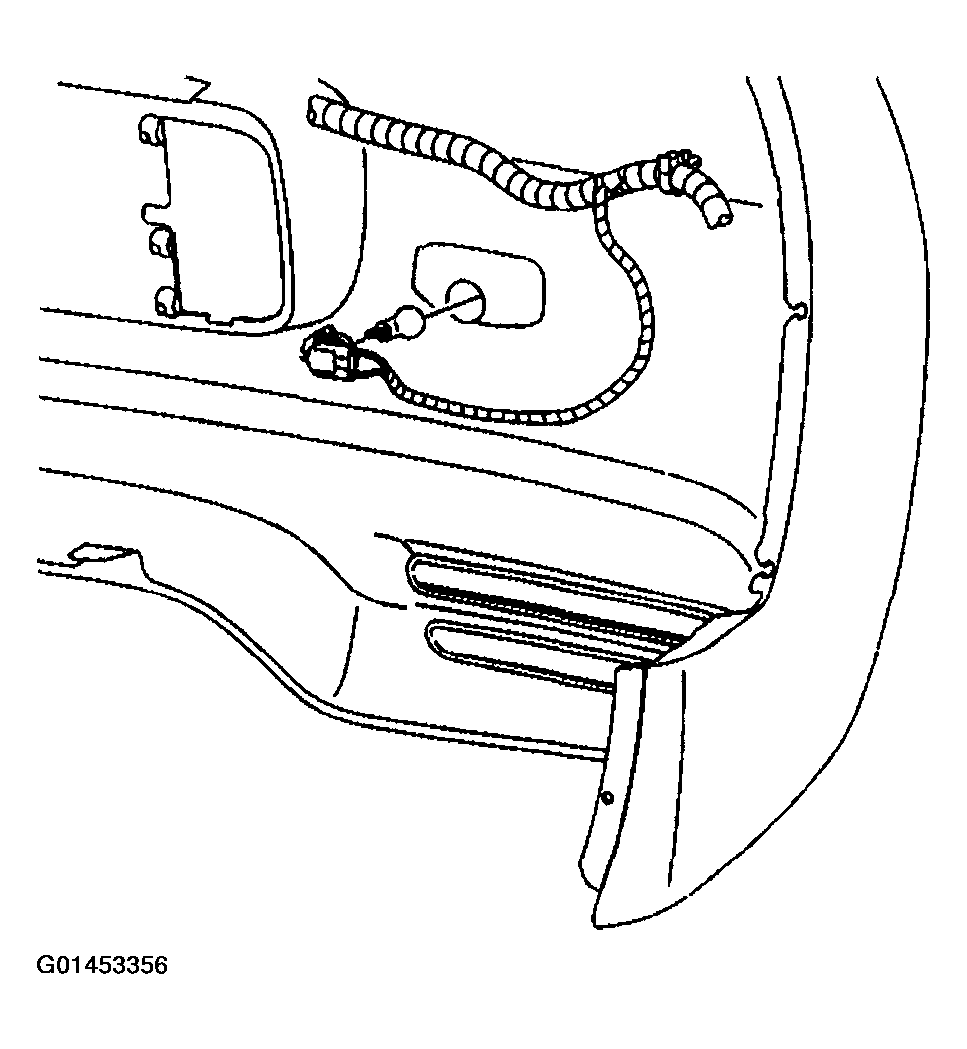

    Fig 1: Installing Bulb To Socket
    G01453356Courtesy of GENERAL MOTORS CORP.
