Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route and position the park/lock cable through the IP center support bracket as noted during removal.

    Be sure to route the cable under the wiring harness and above the floor rear outlet duct as shown.

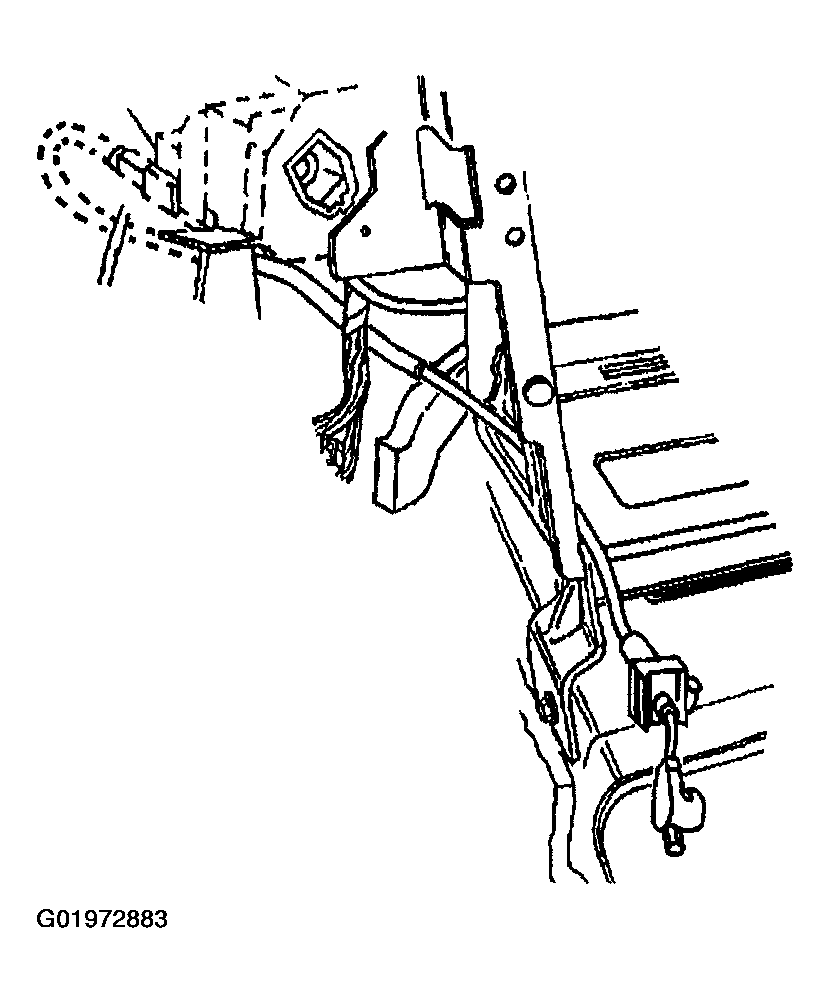

    Fig 1: Positioning Park/Lock Control Cable
    G01972883Courtesy of GENERAL MOTORS CORP.
  2. Install the park/lock cable to the ignition switch.

    Insert the cable into the ignition switch slot, then push in to lock the retaining tab.

  3. Turn the ignition to OFF.

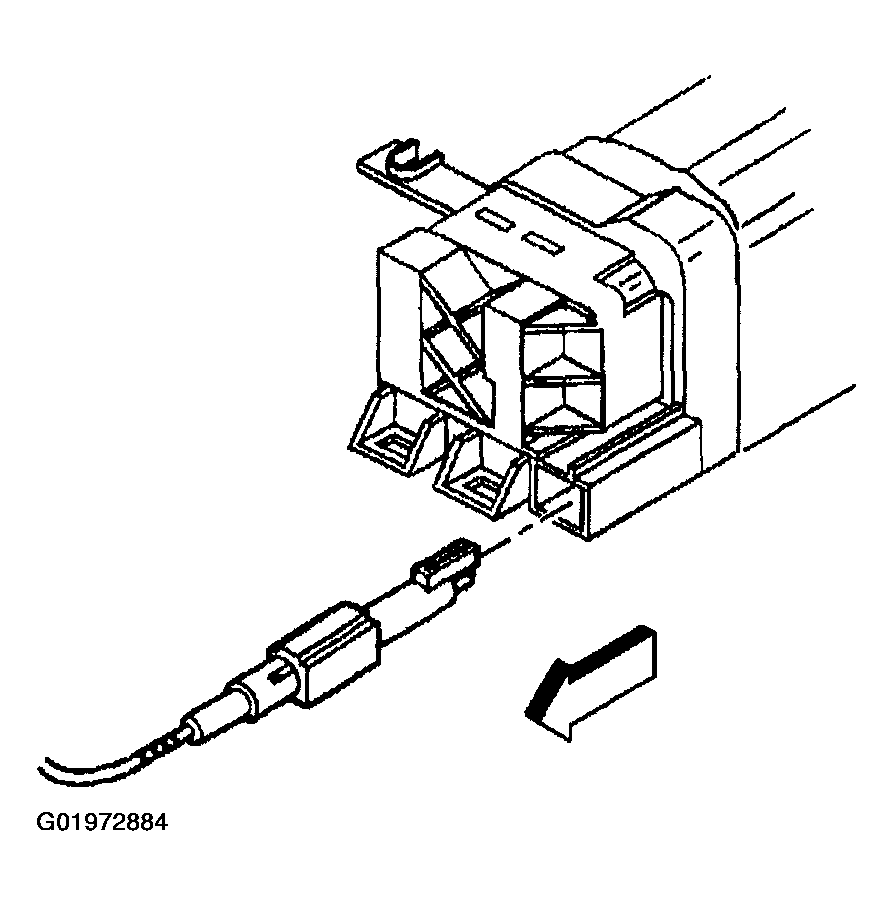

    Fig 2: Installing Park/Lock Cable To Ignition Switch
    G01972884Courtesy of GENERAL MOTORS CORP.
  4. Install the park/lock cable to the shift control pivot arm stud.

    Align the cable onto the arm stud then pull forward to lock.

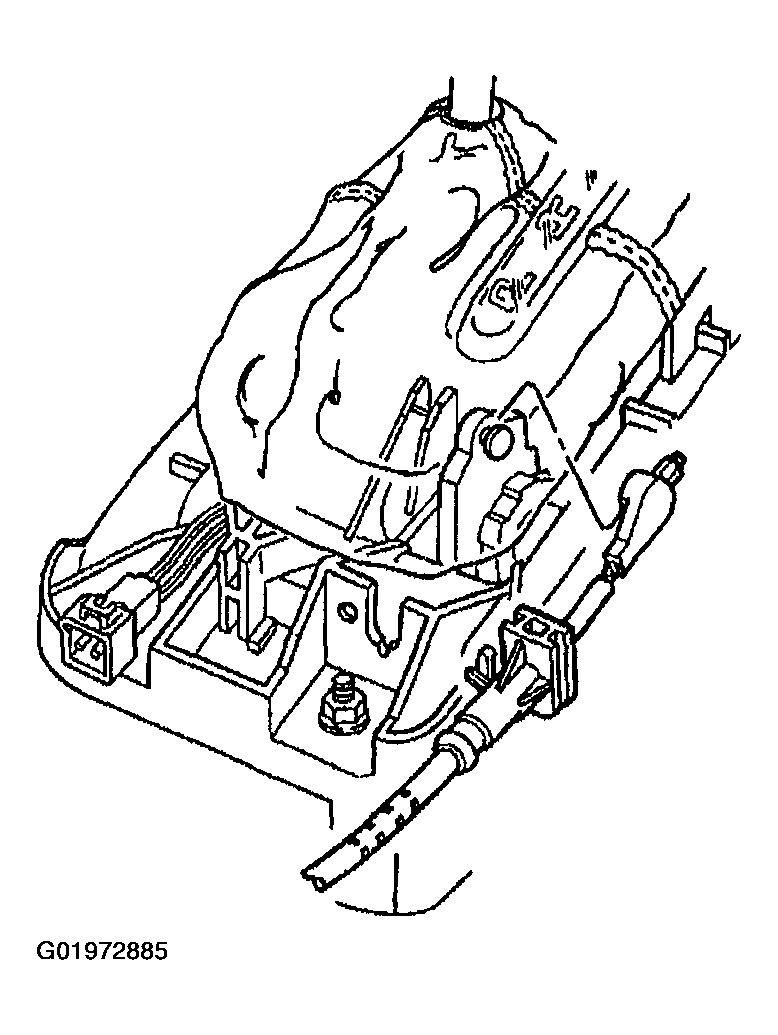

    Fig 3: Installing Park/Lock Cable To Shift Control Pivot Arm Stud
    G01972885Courtesy of GENERAL MOTORS CORP.
  5. Insert the cable into the slot on the shift control.

    Be sure the cable retaining tab locks in place.

  6. Inspect the functional operation of the park/lock system:
    1. 6.1. Install the ignition key and turn the ignition to ON.
    2. 6.2. Place the shift lever in each position (other than PARK) and attempt to turn the ignition all the way to OFF and remove the ignition key.

      If the ignition cannot be turned all the way to the OFF position and if the ignition key cannot be removed (except in PARK), the park/lock system is functioning properly.

  7. Place the shift lever in PARK.
  8. Turn the ignition to OFF and remove the ignition key.

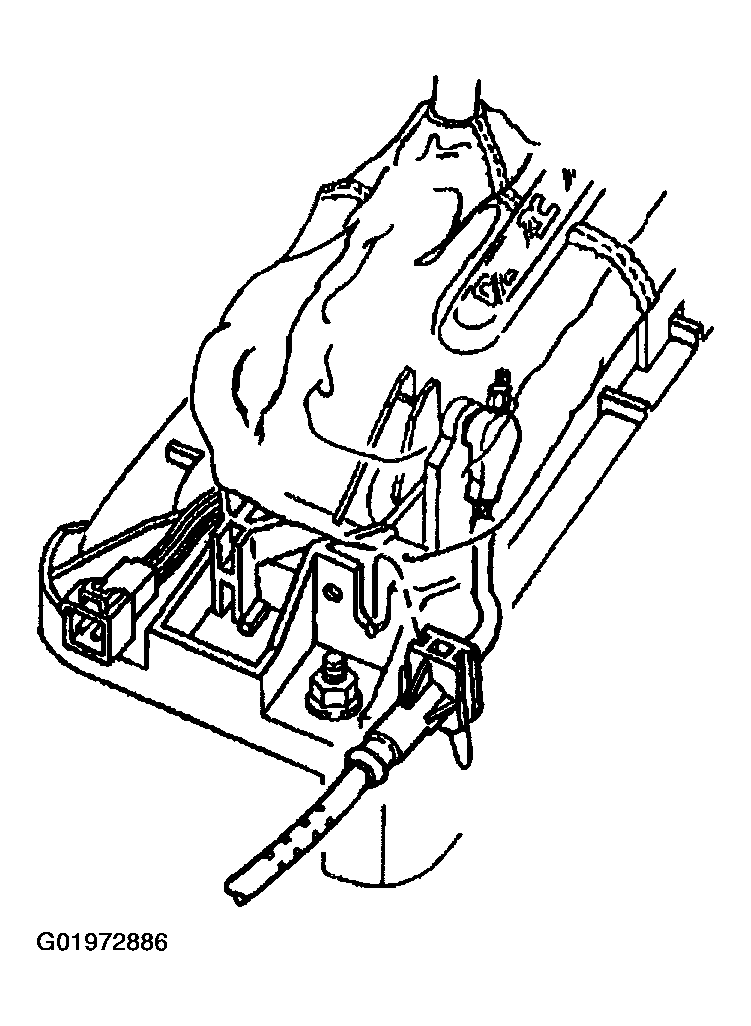

    Fig 4: Inspecting Functional Operation Of Park/Lock System
    G01972886Courtesy of GENERAL MOTORS CORP.
  9. Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
  10. Install the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
  11. Install the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages and Console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Important:  Prior to restoring battery power, check to be certain that the ignition key is removed from the ignition switch.

  12. Connect the negative battery cable.

    Tighten

    Tighten the cable bolt to 15 N.m (11 lb ft).

  13. Program the transmitters.
  14. Unblock the wheels.
  15. Release the parking brake.
