Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4. This step tests the function of the 2-3 SS valve and the automatic transmission (AT) wiring harness assembly.
  2. 5. This step tests for power to the 2-3 SS valve from the ignition through the fuse.
  3. 6. This step tests the ability of the PCM and the wiring to control the ground circuit.
  4. 8. This step measures the resistance of the AT wiring harness assembly and the 2-3 SS valve.

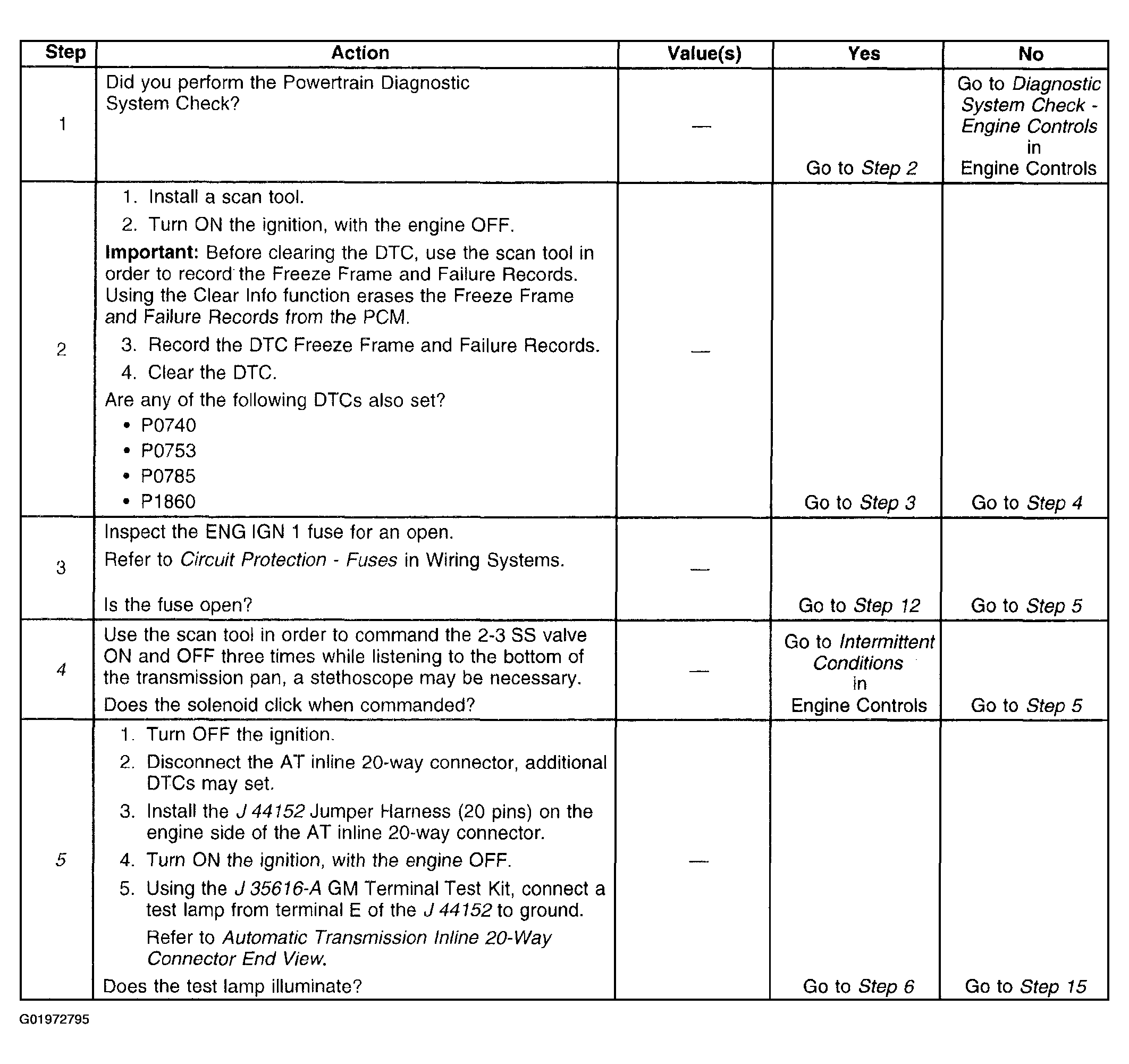

    Fig 1: DTC P0758 (1 Of 3)
    G01972795Courtesy of GENERAL MOTORS CORP.

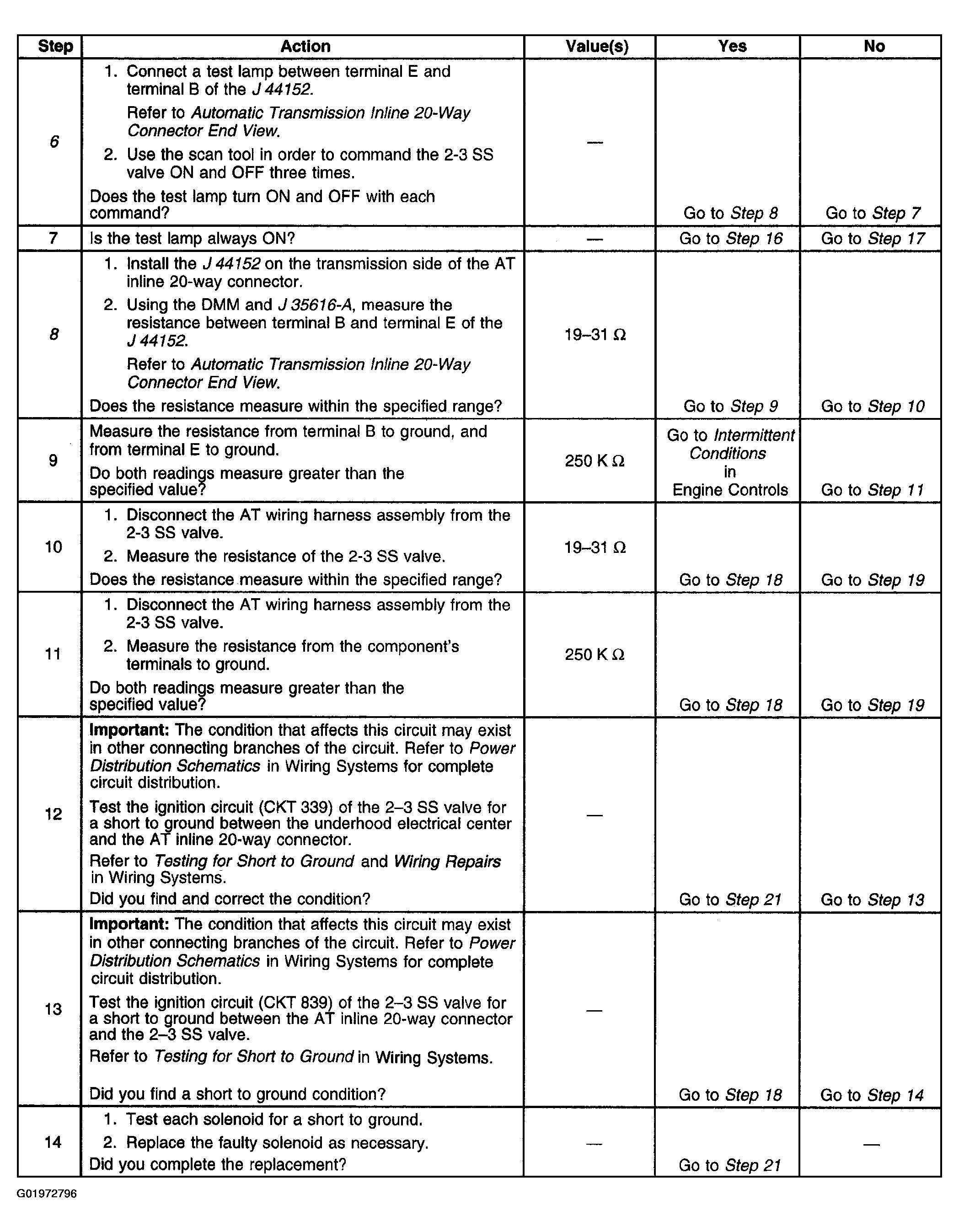

    Fig 2: DTC P0758 (2 Of 3)
    G01972796Courtesy of GENERAL MOTORS CORP.

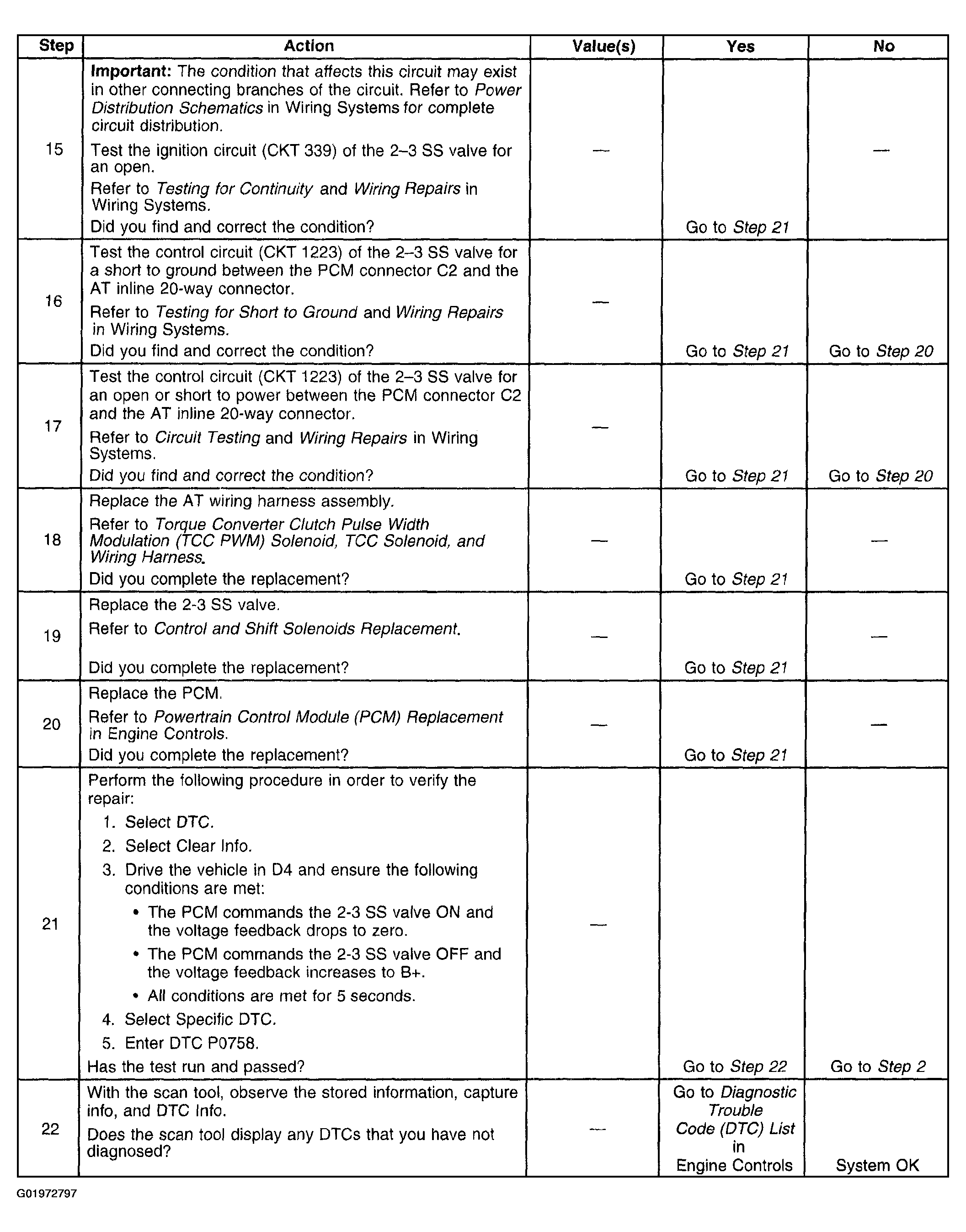

    Fig 3: DTC P0758 (3 Of 3)
    G01972797Courtesy of GENERAL MOTORS CORP.
