Section 659 (Manual Transmission - Mm6/M12): Specifications

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

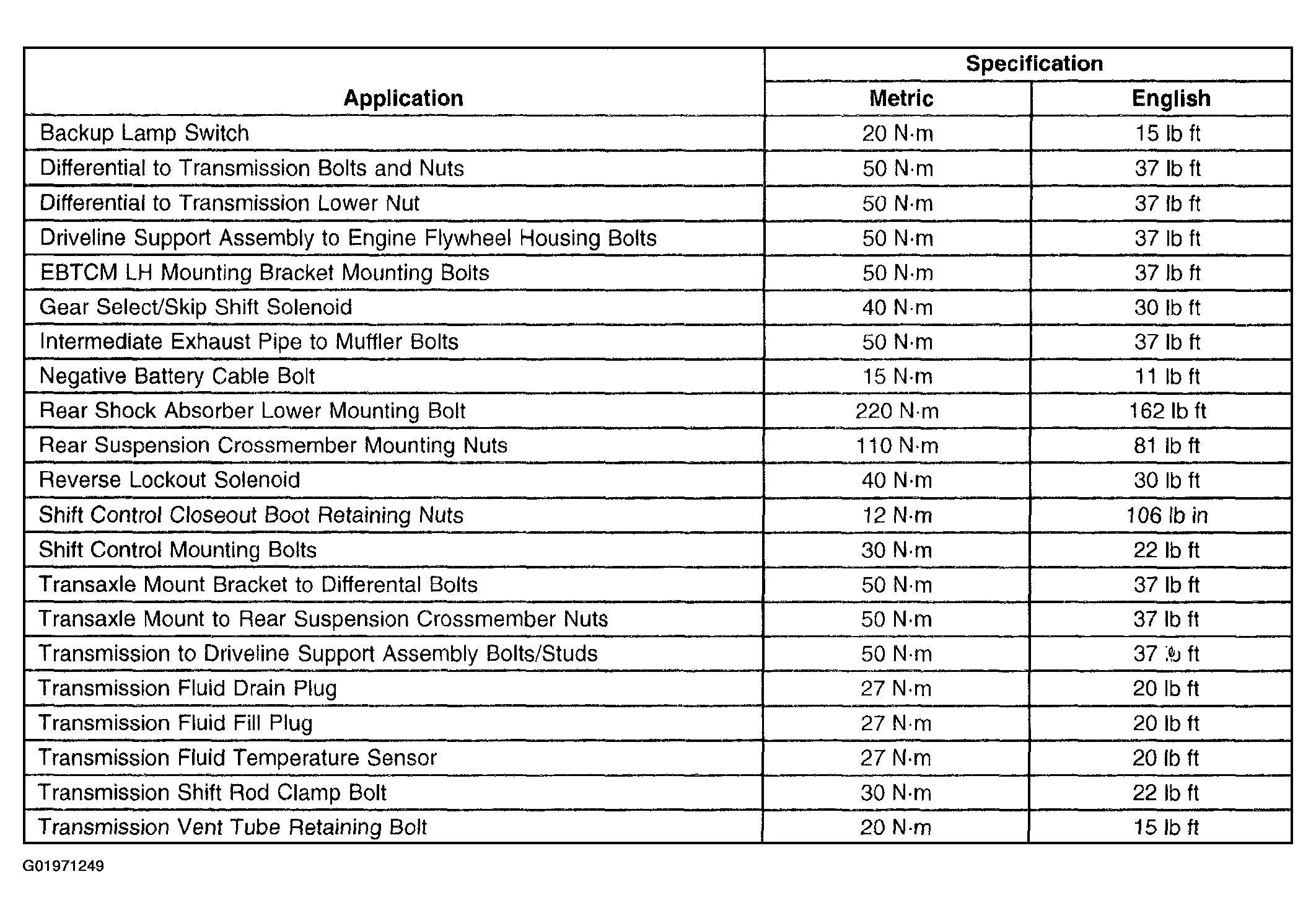

Fig 1: Fastener Specifications
G01971249Courtesy of GENERAL MOTORS CORP.
Fig 2: Lubrication Specifications
G01971250Courtesy of GENERAL MOTORS CORP.
