Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the air conditioning (A/C) drive belt idler pulley bolt.
  2. Remove the A/C drive belt. Refer to DRIVE BELT REPLACEMENT-AIR CONDITIONING  .
  3. Remove the A/C drive belt idler pulley.

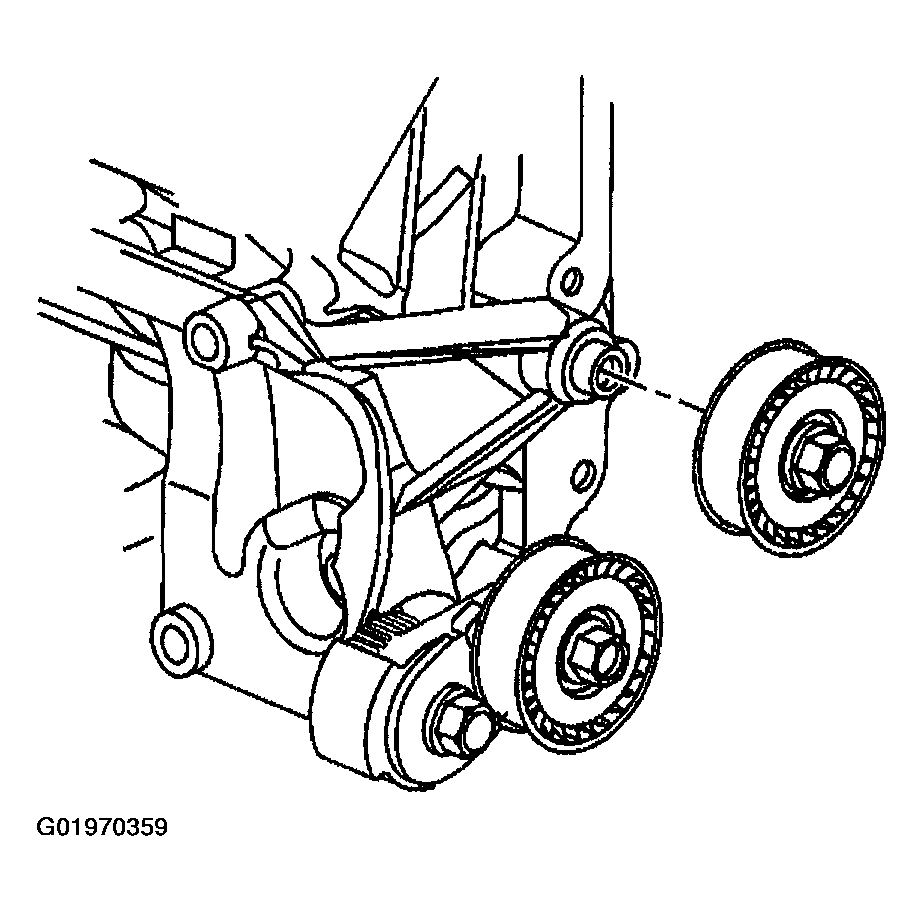

    Fig 1: Removing Air Conditioning Drive Belt Idler Pulley
    G01970359Courtesy of GENERAL MOTORS CORP.
