Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install NEW camshaft bearings, if required. Refer to CAMSHAFT BEARING INSTALLATION .
  2. Apply a 5 mm bead of sealant GM U.S. P/N 12378190, or equivalent 20 mm (0.8 in) long to the oil pan to engine block junction, if required.

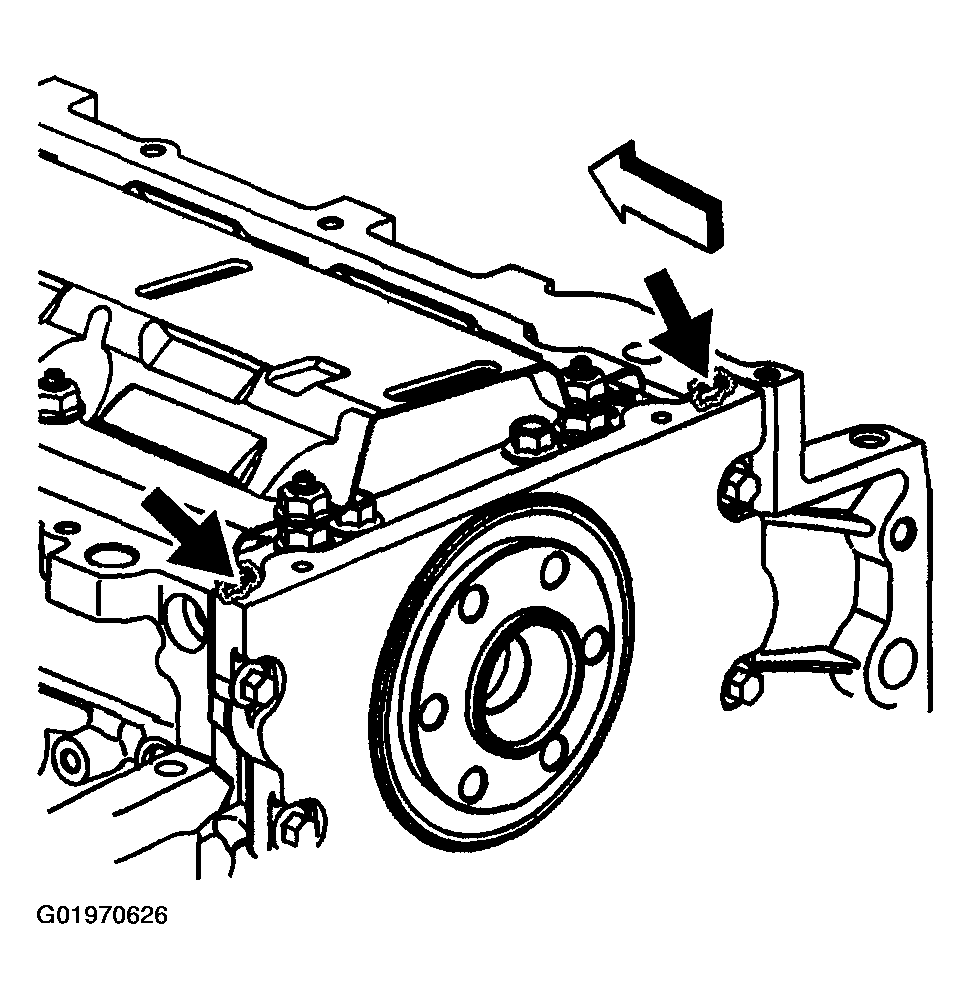

    Fig 1: Applying Sealant At Oil Pan To Engine Block Junction
    G01970626Courtesy of GENERAL MOTORS CORP.
  3. Install the rear cover and a new gasket, if required.
  4. Install the rear cover bolts until snug, if required.

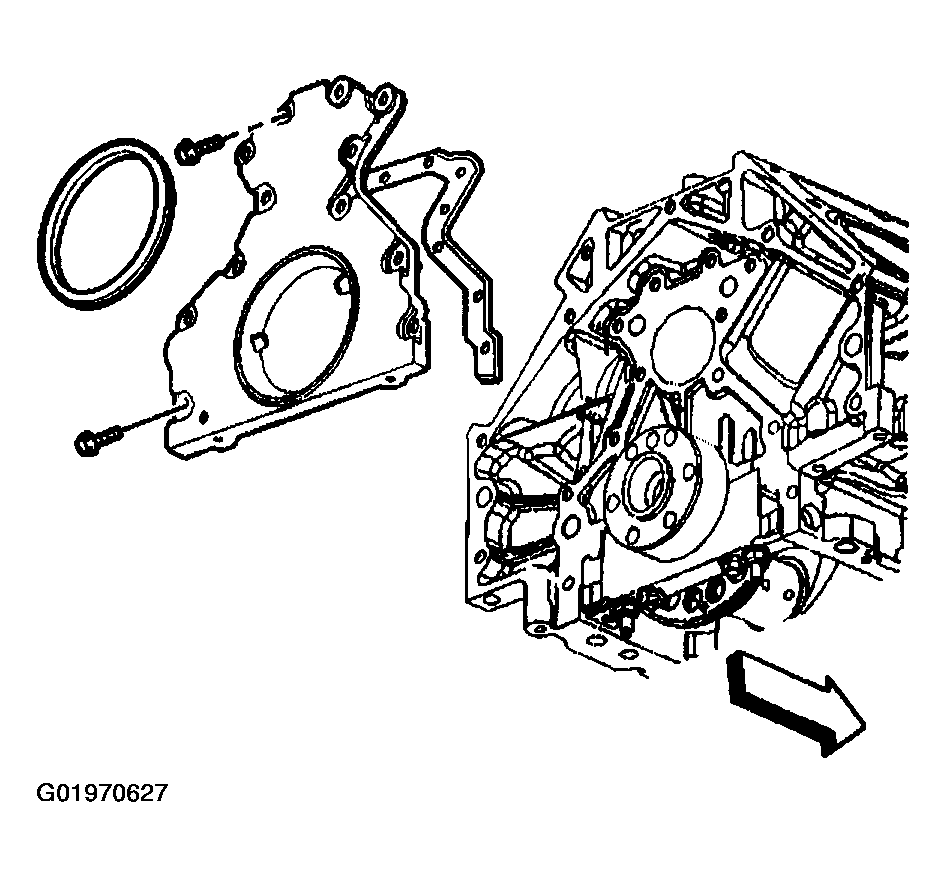

    Fig 2: Installing Rear Cover
    G01970627Courtesy of GENERAL MOTORS CORP.
  5. Install the oil pan-to-rear cover bolts (1) until snug, if required.

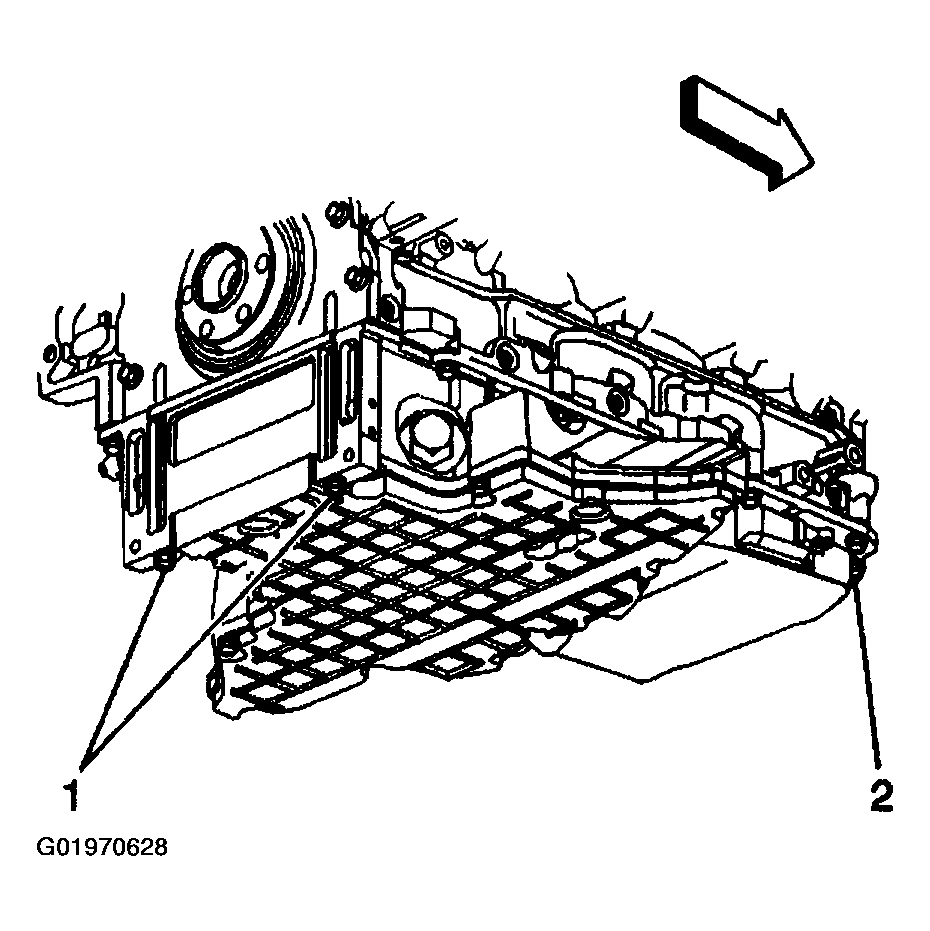

    Fig 3: Installing Oil Pan-To-Rear Cover Bolts
    G01970628Courtesy of GENERAL MOTORS CORP.
  6. Rotate the crankshaft as required until two opposing flywheel bolt holes are parallel to the oil pan surface, if required.
    NOTE: Refer to FASTENER NOTICE .

    Important:  The tapered legs of the alignment tool must enter the rear cover oil seal bore.

  7. Install the J 41476  bolts until snug. Do not overtighten, if required.

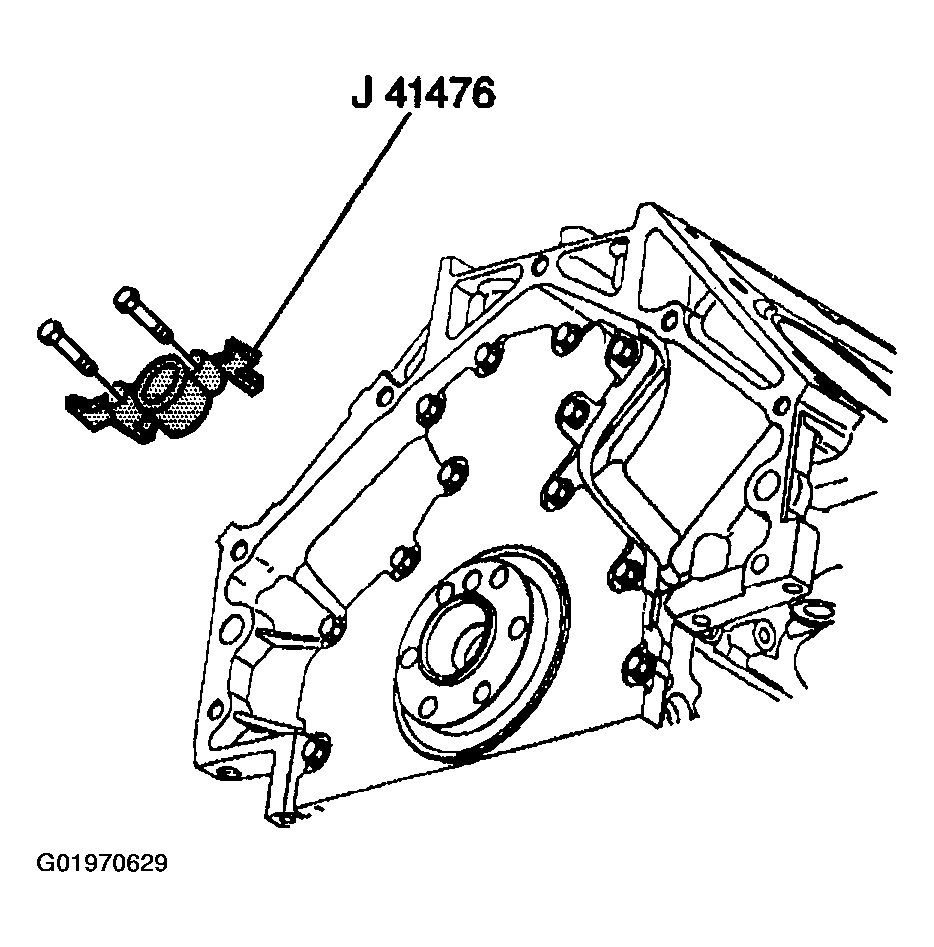

    Fig 4: Installing J 41476
    G01970629Courtesy of GENERAL MOTORS CORP.

    Tighten

    1. 7.1. Tighten the oil pan-to-rear cover bolts to 12 N.m (106 lb in).
    2. 7.2. Tighten the engine rear cover bolts to 25 N.m (18 lb ft).
  8. Remove the J 41476  .
  9. Install a NEW crankshaft rear oil seal, if required. Refer to CRANKSHAFT REAR OIL SEAL INSTALLATION  in Engine Mechanical - 5.7L Unit Repair.
  10. Install the camshaft. Refer to CAMSHAFT INSTALLATION  in Engine Mechanical - 5.7L Unit Repair.
  11. Align the camshaft sprocket alignment mark in the 6 o'clock position.

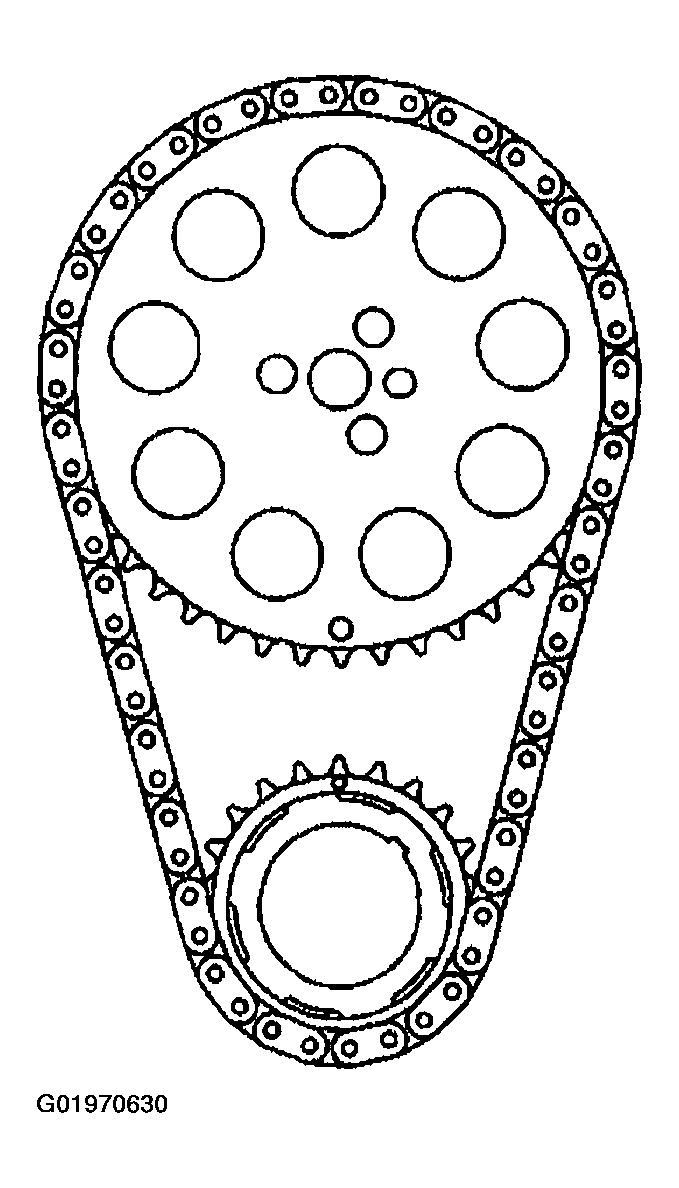

    Fig 5: Aligning Camshaft Sprocket
    G01970630Courtesy of GENERAL MOTORS CORP.
  12. Install the camshaft sprocket and timing chain.

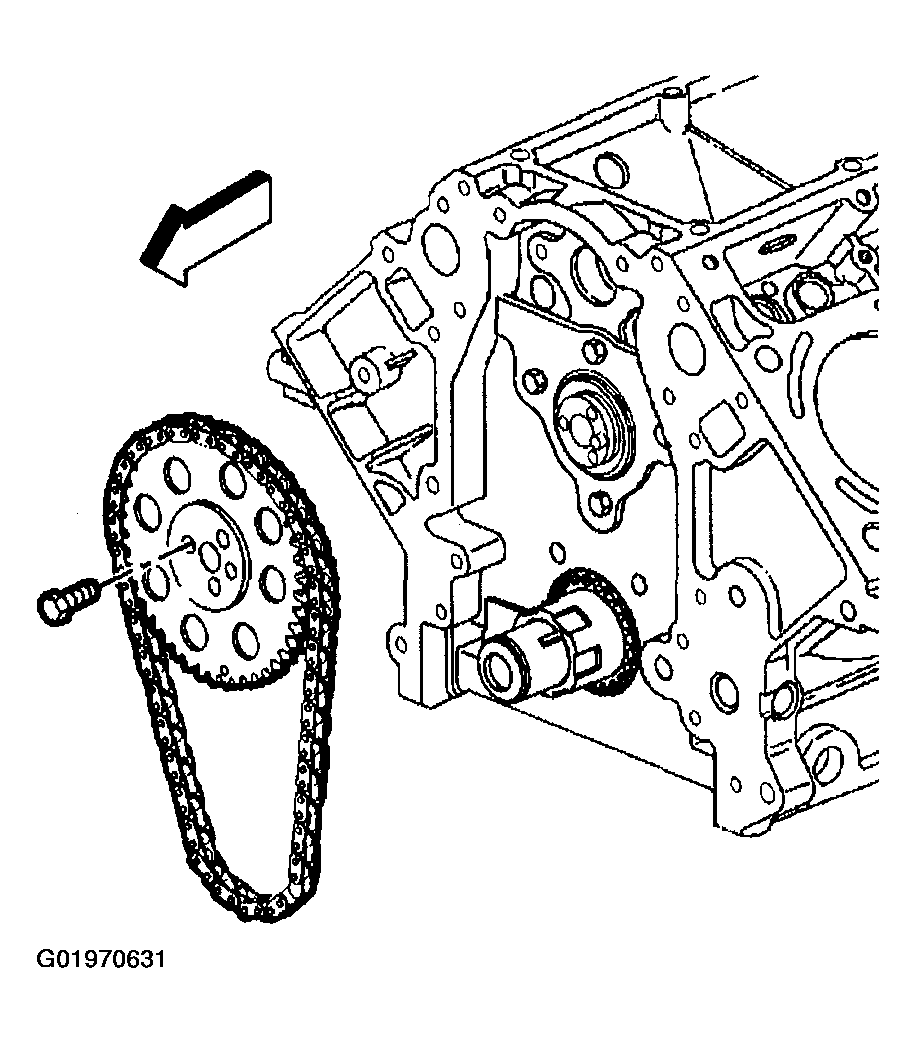

    Fig 6: Installing Camshaft Sprocket
    G01970631Courtesy of GENERAL MOTORS CORP.
  13. Install the camshaft sprocket bolts.

    Tighten

    Tighten the camshaft sprocket bolts to 35 N.m (26 lb ft).

  14. Apply a 5 mm bead of sealant GM U.S. P/N 12378190, or equivalent 20 mm (0.8 in) long to the oil pan to engine block junction.

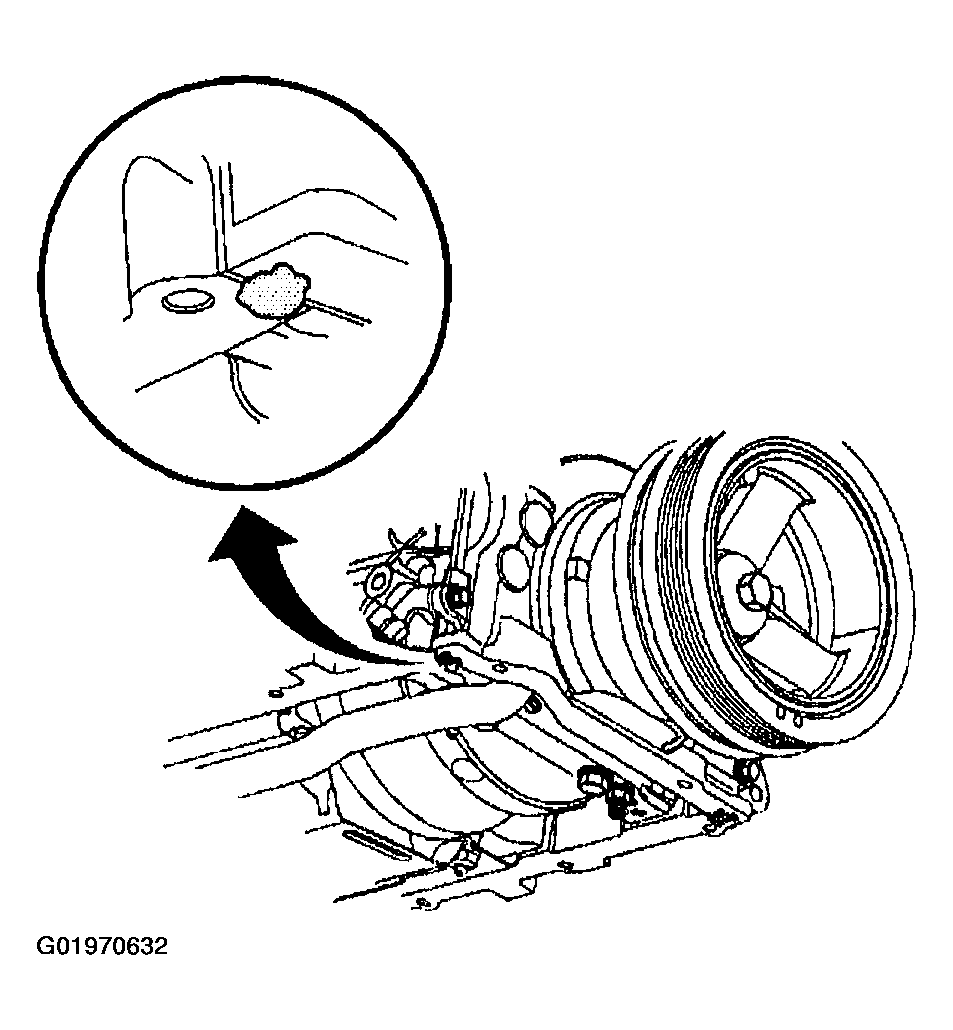

    Fig 7: Applying Sealant At Oil Pan To Engine Block Junction
    G01970632Courtesy of GENERAL MOTORS CORP.
  15. Install the front cover and a new gasket.
  16. Install the front cover bolts until snug.

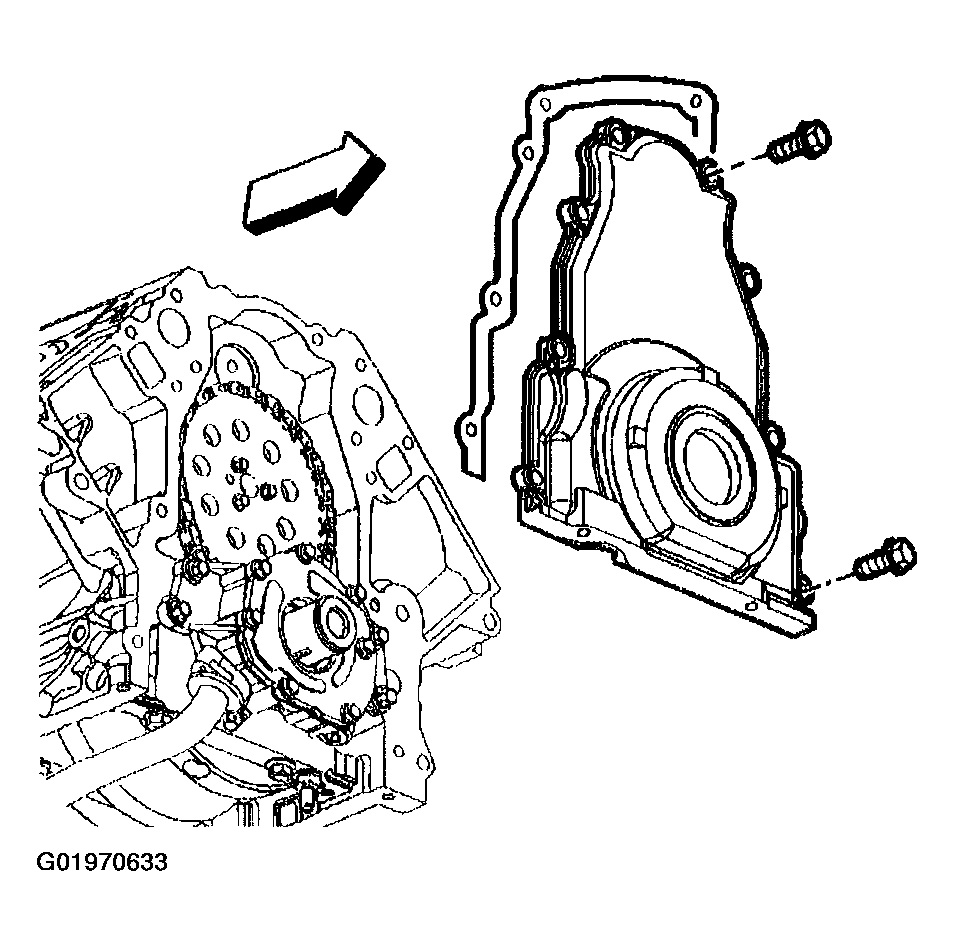

    Fig 8: Installing Front Cover
    G01970633Courtesy of GENERAL MOTORS CORP.
  17. Install the oil pan-to-front cover bolts (1) until snug.

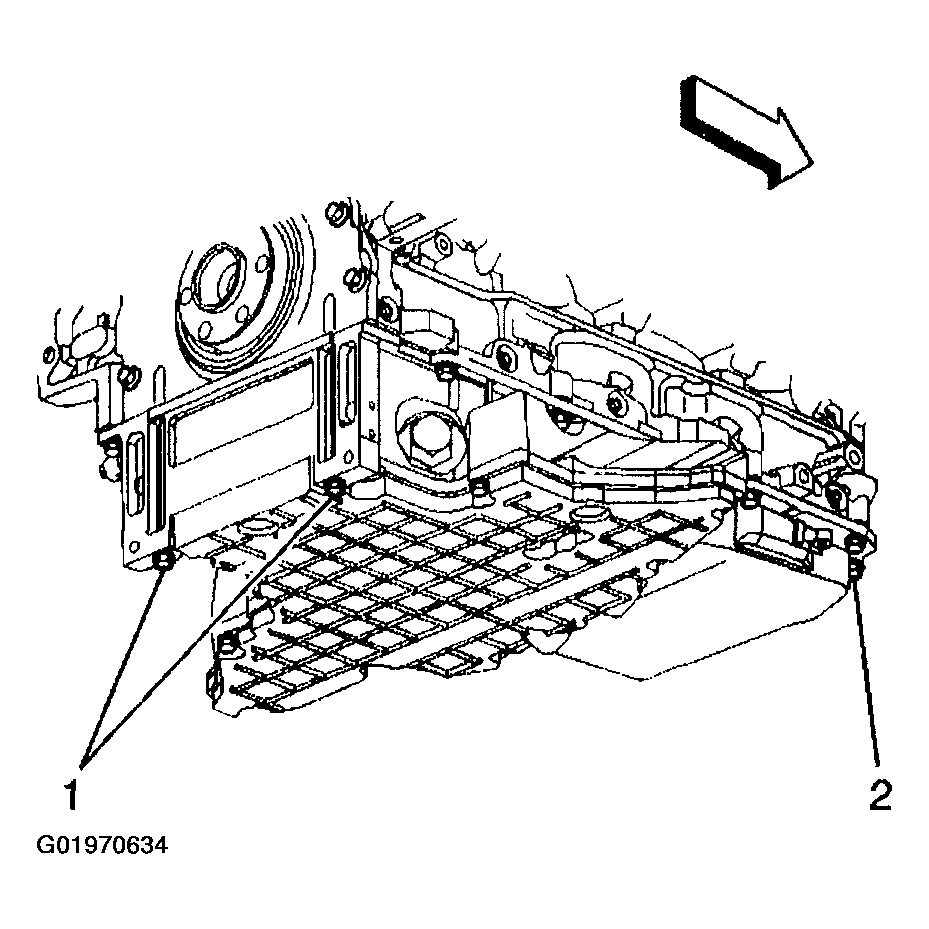

    Fig 9: Installing Oil Pan-To-Front Cover Bolts
    G01970634Courtesy of GENERAL MOTORS CORP.
  18. Install the J 41476  and crankshaft balancer bolt to the front cover.

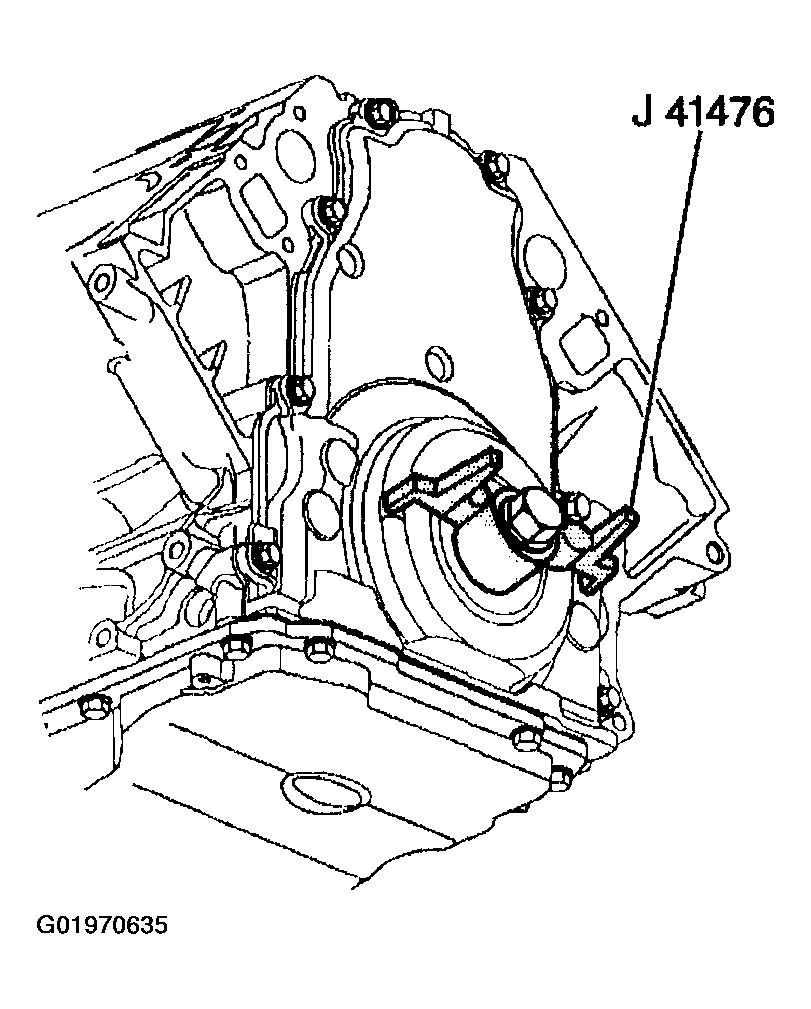

    Fig 10: Installing J 41476 And Crankshaft Balancer Bolt
    G01970635Courtesy of GENERAL MOTORS CORP.
  19. Align the tapered legs of the J 41476  with the machined alignment surfaces on the front cover.
  20. Install the crankshaft balancer bolt until snug. Do not overtighten.

    Tighten

    1. 20.1. Tighten the oil pan-to-front cover bolts to 25 N.m (18 lb ft).
    2. 20.2. Tighten the engine front cover bolts to 25 N.m (18 lb ft).
  21. Remove the J 41476  .
  22. Install a NEW crankshaft front oil seal. Refer to CRANKSHAFT FRONT OIL SEAL INSTALLATION .
  23. Install the valve lifters. Refer to VALVE LIFTER INSTALLATION .
  24. Install the right and left cylinder heads. Refer to CYLINDER HEAD INSTALLATION - RIGHT  and CYLINDER HEAD INSTALLATION - LEFT .
  25. Install the valve rocker arms and push rods. Refer to VALVE ROCKER ARM AND PUSH ROD INSTALLATION .
  26. Install the right and left valve rocker arm covers. Refer to VALVE ROCKER ARM COVER INSTALLATION - RIGHT  and VALVE ROCKER ARM COVER INSTALLATION - LEFT .
  27. Install the coolant air bleed pipe. Refer to COOLANT AIR BLEED PIPE INSTALLATION .
  28. Install the intake manifold. Refer to INTAKE MANIFOLD INSTALLATION .
  29. Install the water pump. Refer to WATER PUMP INSTALLATION .
  30. Install the left and right exhaust manifolds. Refer to EXHAUST MANIFOLD INSTALLATION - LEFT  and EXHAUST MANIFOLD INSTALLATION - RIGHT .
  31. Install the oil level indicator tube. Refer to OIL LEVEL INDICATOR AND TUBE INSTALLATION .
  32. Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER INSTALLATION .
  33. Install the engine assembly. Refer to ENGINE REPLACEMENT  .
