Water Pump Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump bolts.
  2. Remove the water pump and gaskets.
  3. Discard the water pump gaskets.

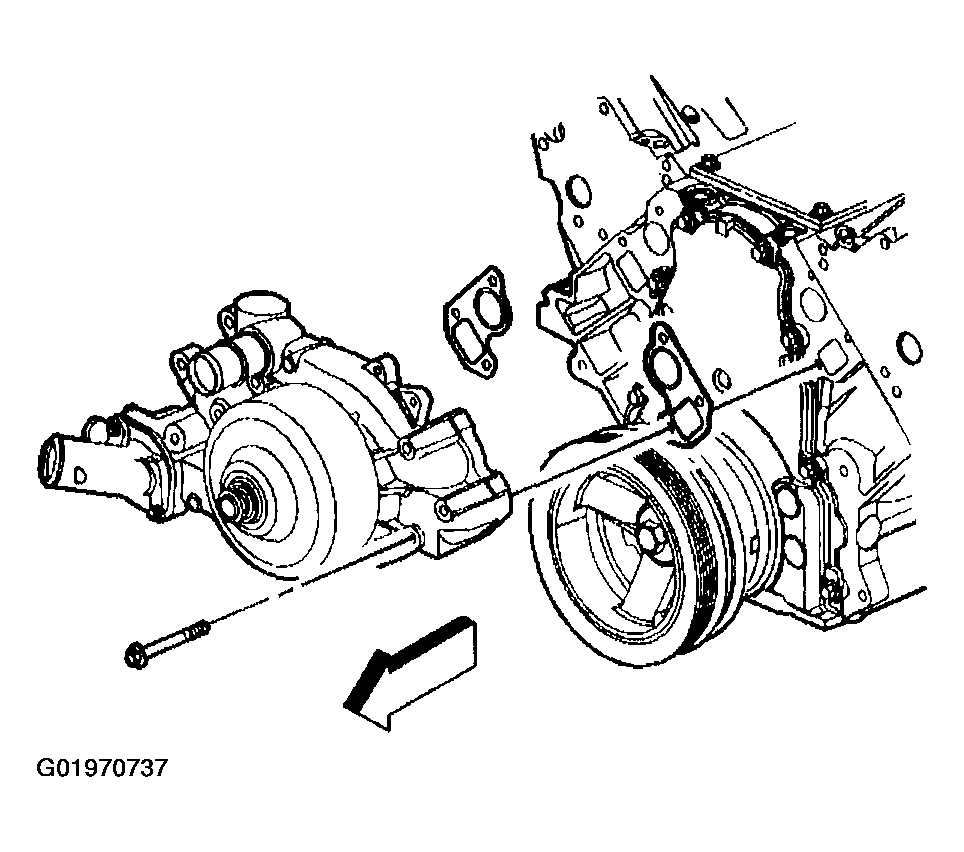

    Fig 1: Removing Water Pump
    G01970737Courtesy of GENERAL MOTORS CORP.
