Coolant Air Bleed Pipe Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine coolant air bleed pipe studs (1).
  2. Remove the pipe (2) and gaskets (3).
    Fig 1: Removing Coolant Air Bleed Pipe
    G01970751Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine coolant air bleed pipe hole cover bolts (1) and covers (2).

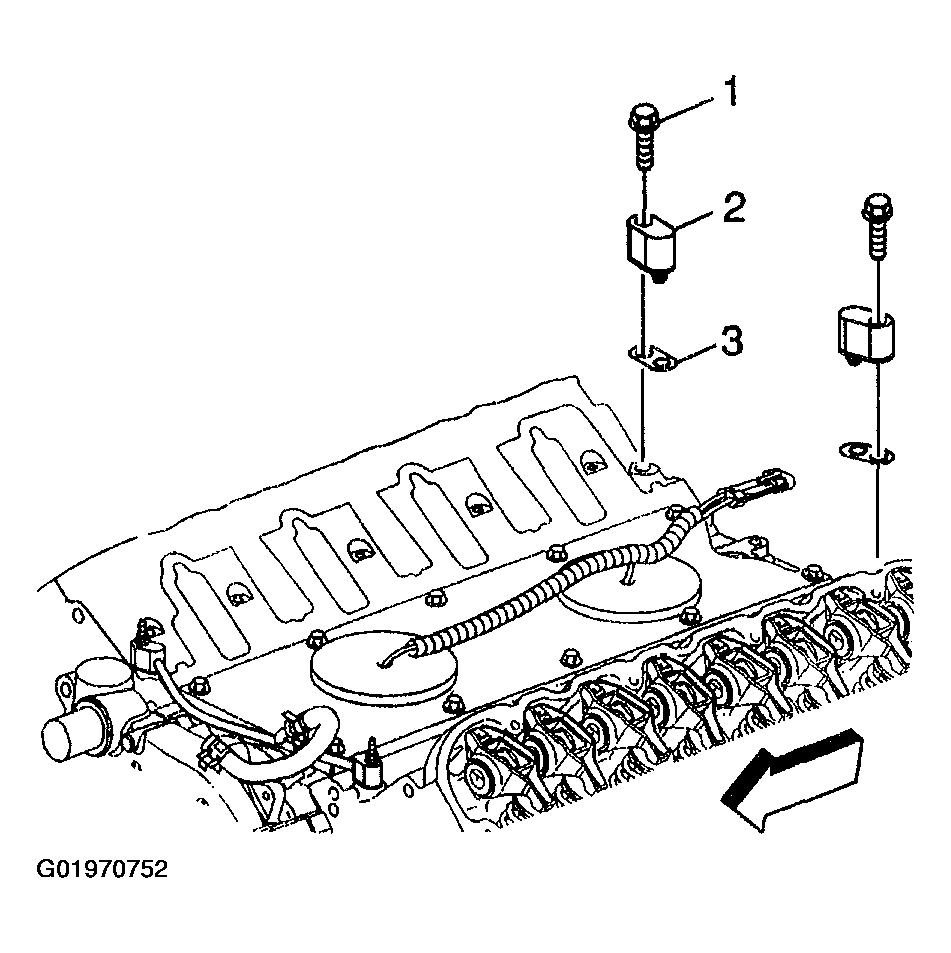

    Fig 2: Removing Coolant Air Bleed Pipe Hole Cover Bolts & Covers
    G01970752Courtesy of GENERAL MOTORS CORP.
  4. Remove the gaskets from the pipe and covers.
  5. Discard the gaskets.
    Fig 3: Removing Gaskets
    G01970753Courtesy of GENERAL MOTORS CORP.
  6. Remove the hose (2) from the pipe (1).
    Fig 4: Removing Hose From Pipe
    G01970754Courtesy of GENERAL MOTORS CORP.
