ABS Wiring Schematics (Brake Fluid Pressure Sensor, Lateral Accelerometer and Yaw Rate Sensor (JL4))

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

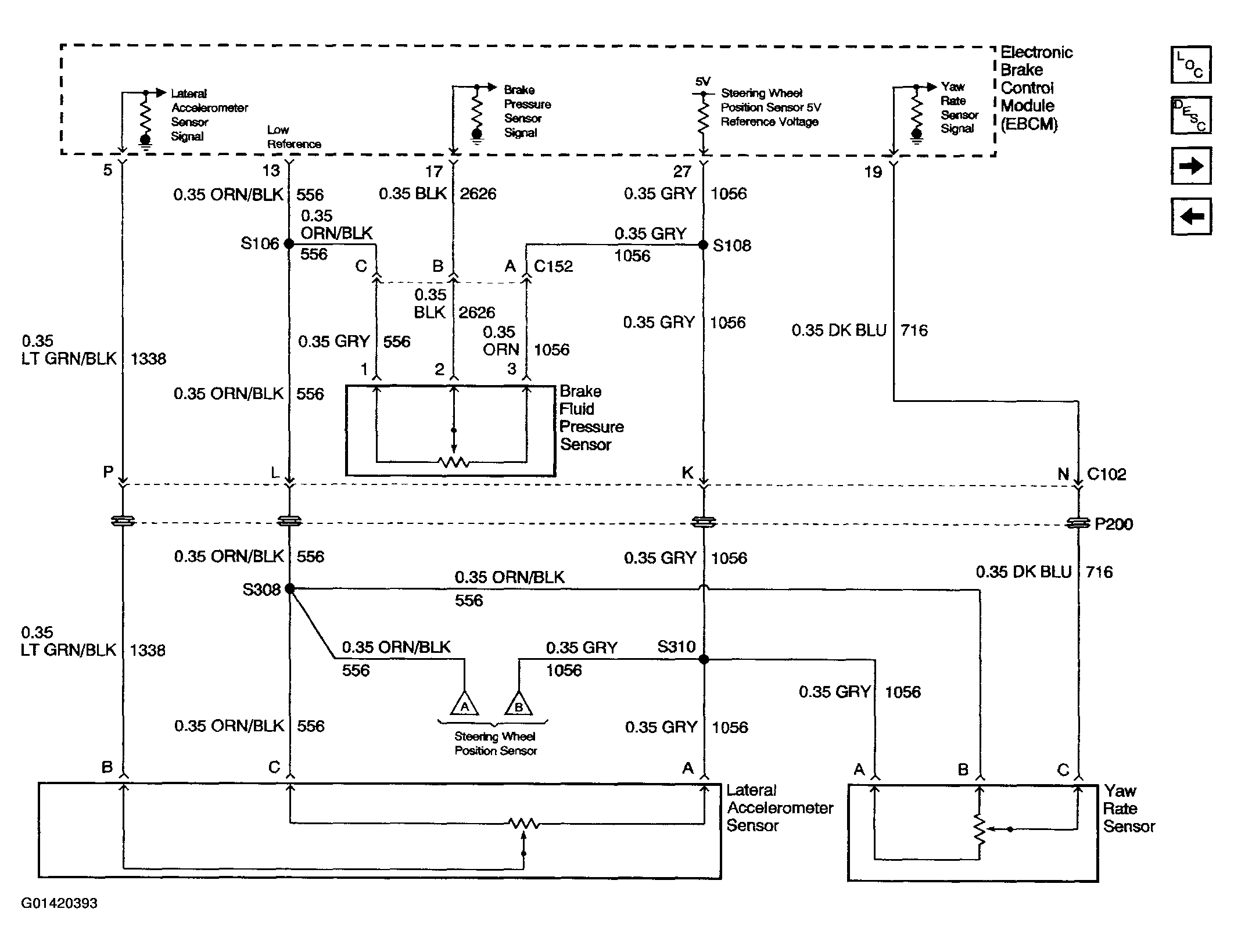

Fig 1: ABS Schematics (Brake Fluid Pressure Sensor, Lateral Accelerometer and Yaw Rate Sensor (JL4))
G01420393Courtesy of GENERAL MOTORS CORP.
