Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the ignition switch.
  2. Raise the vehicle on a suitable safety stand. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Disconnect the position sensor connector (2).
  5. Remove the position sensor harness retainers.
  6. Remove the position sensor link from the control arm link stud (1).
  7. Remove the position sensor mounting bolts (4).
  8. Remove the position sensor (3) from the vehicle.

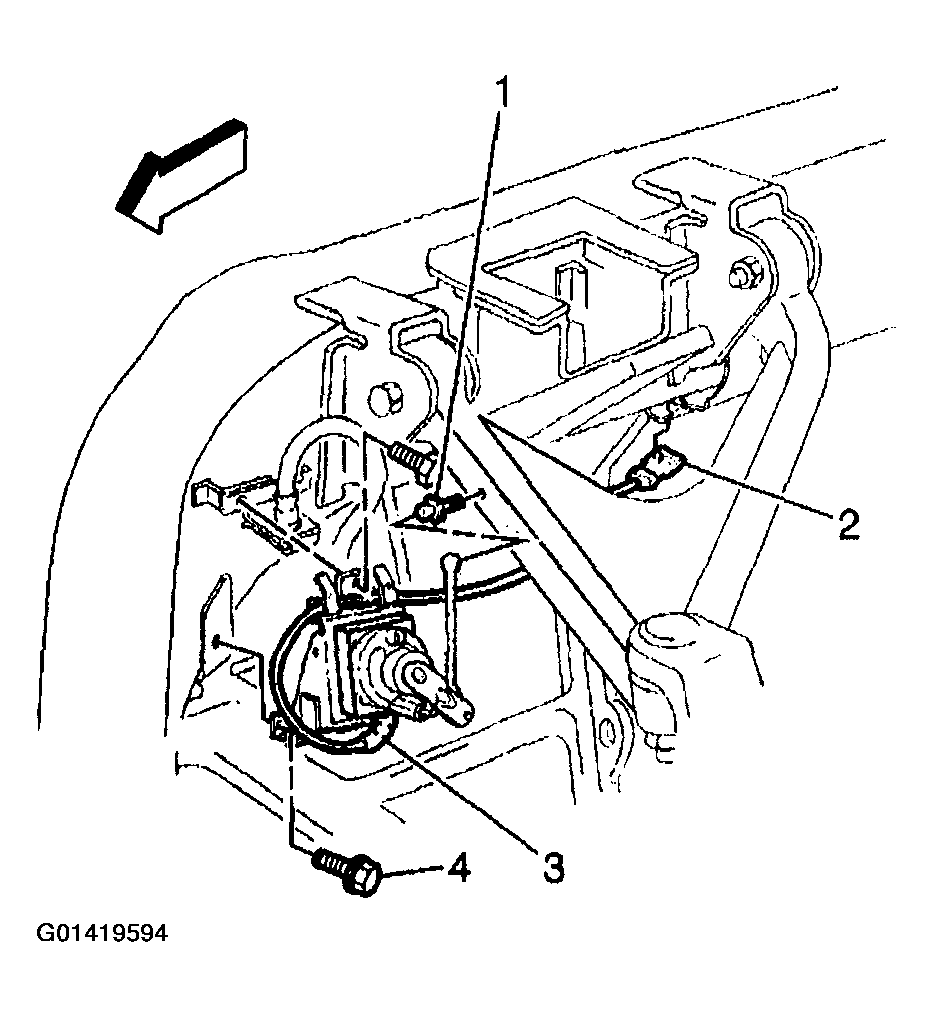

    Fig 1: Removing Rear Position Sensor
    G01419594Courtesy of GENERAL MOTORS CORP.
