Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

    Important:  If the steering column connectors are disconnected with the ignition in the ON position, the BCM will enter a fail enable mode and prevent steering column lock operation. The PCM will also inhibit vehicle motion by disabling fuel. To clear the BCM fail enable mode, disconnect the BCM fuse #25 for 15 seconds.

  2. Remove the upper and lower steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (TELESCOPING)   or  STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL)   .
  3. Remove the wire harness straps (2) from the tilt head assembly (1) and the column.

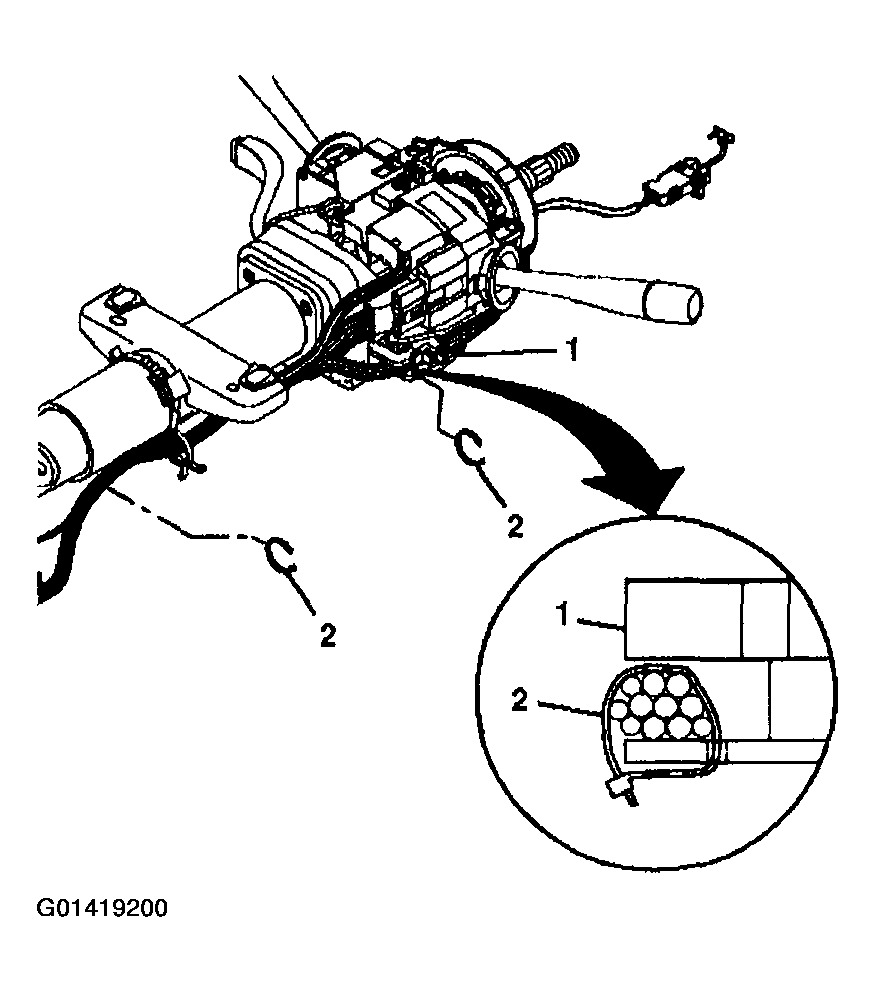

    Fig 1: Removing Wire Harness Straps From Tilt Head Assembly
    G01419200Courtesy of GENERAL MOTORS CORP.
  4. Install J 42640  to the steering column.
  5. Remove the tilt head assembly. Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (TELESCOPING)  or STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (MANUAL)  .
  6. Remove the steering wheel theft deterrent.
