Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering wheel theft deterrent.
  2. Route the wire harness assembly along the steering column jacket assembly.

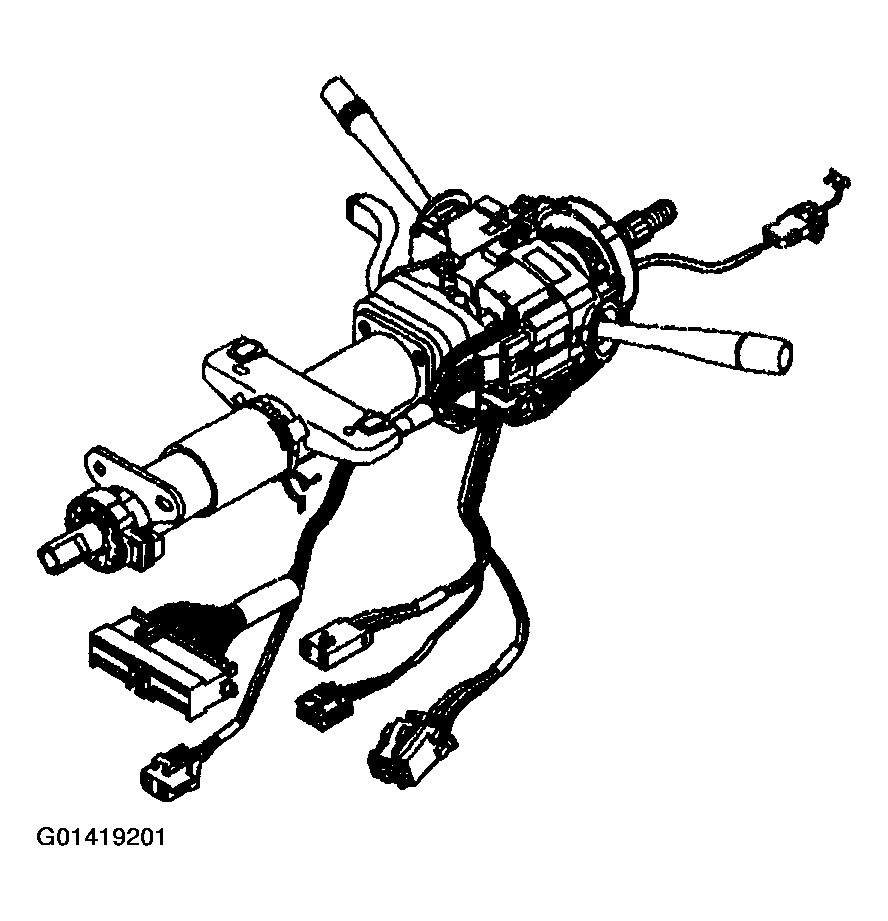

    Fig 1: Routing Wire Harness Assembly Along Steering Column Jacket Assembly
    G01419201Courtesy of GENERAL MOTORS CORP.
  3. Install the wire harness assembly (1) into the wire harness strap (2).

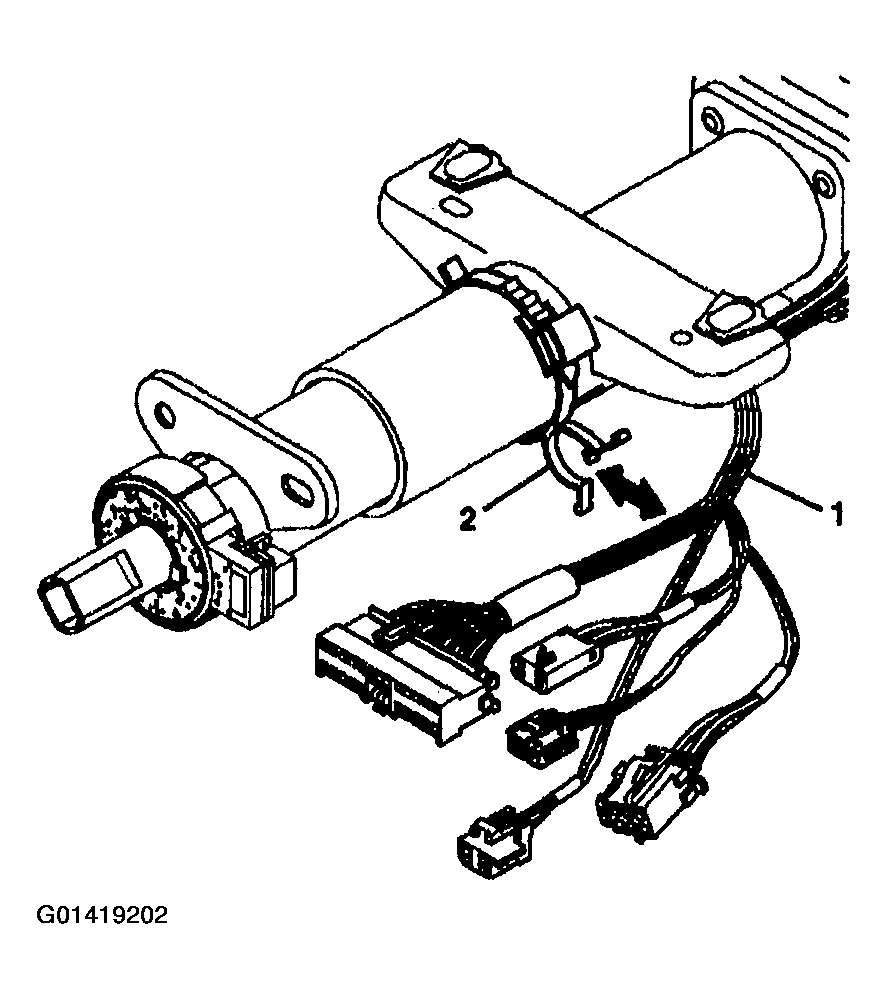

    Fig 2: Installing Wire Harness Assembly Into Wire Harness Strap
    G01419202Courtesy of GENERAL MOTORS CORP.
  4. Install the tilt head assembly. Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (TELESCOPING)  or STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (MANUAL)  .
  5. Remove J 42640  from the steering column.
  6. Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (TELESCOPING)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL)  .
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
