Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
  2. Remove the battery heat shield. Refer to BATTERY HEAT SHIELD REPLACEMENT in Engine Electrical.
  3. Remove the HVAC module drain tube from the HVAC module.

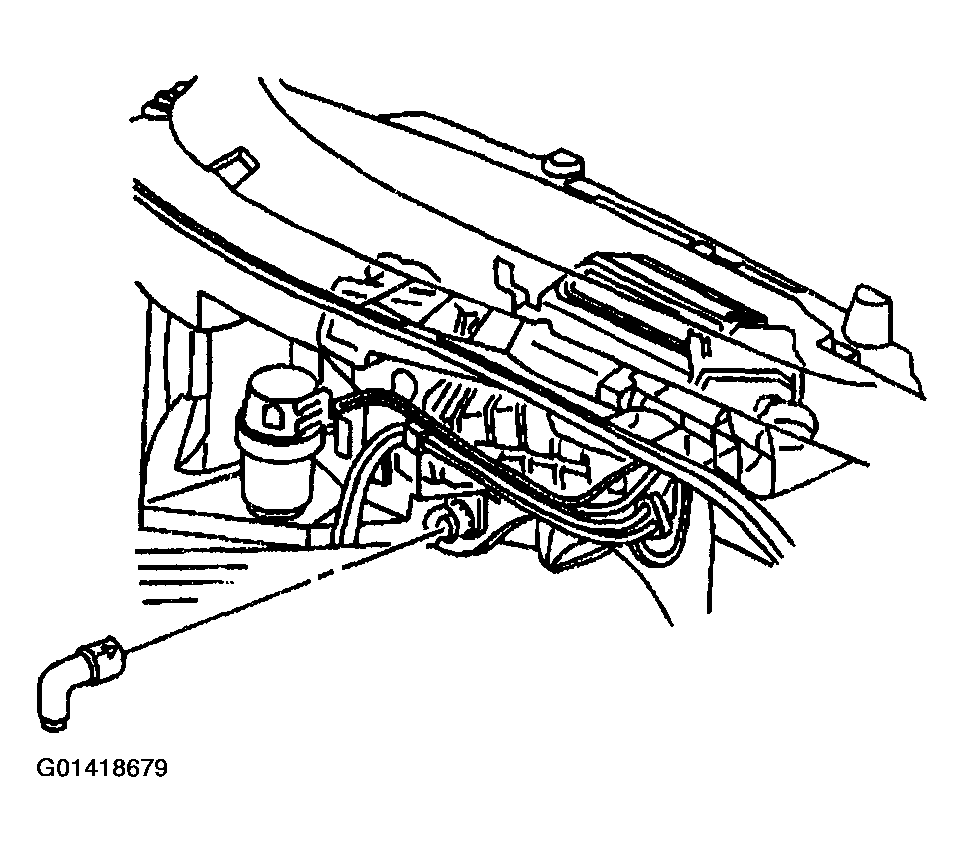

Fig 1: Removing HVAC Module Drain Tube From HVAC Module
G01418679Courtesy of GENERAL MOTORS CORP.
