Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the side window defogger upper outlet duct.
    1. 2.1. Remove the push-in retainers.
    2. 2.2. Use a twisting motion to release the upper duct from the lower duct.

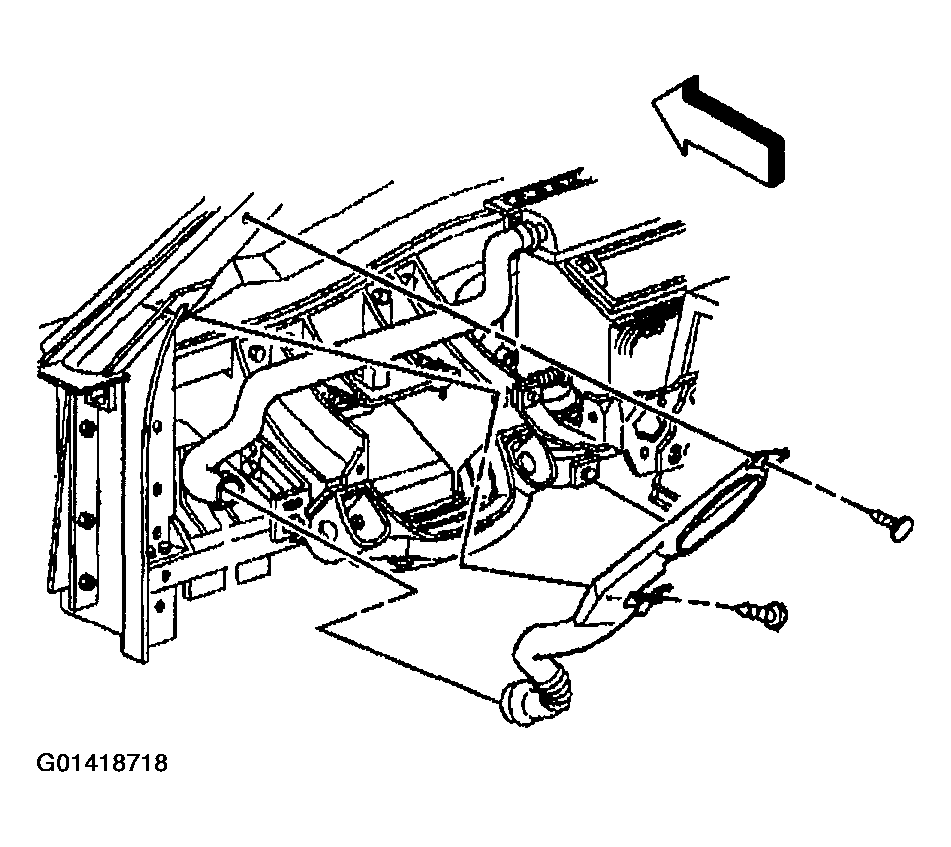

    Fig 1: Removing Side Window Defogger Upper Outlet Duct
    G01418718Courtesy of GENERAL MOTORS CORP.
  3. Remove the side window defogger lower outlet duct.
    1. 3.1. Remove the push-in retainer.
    2. 3.2. Use a twisting motion to release the lower duct from the windshield defroster duct.

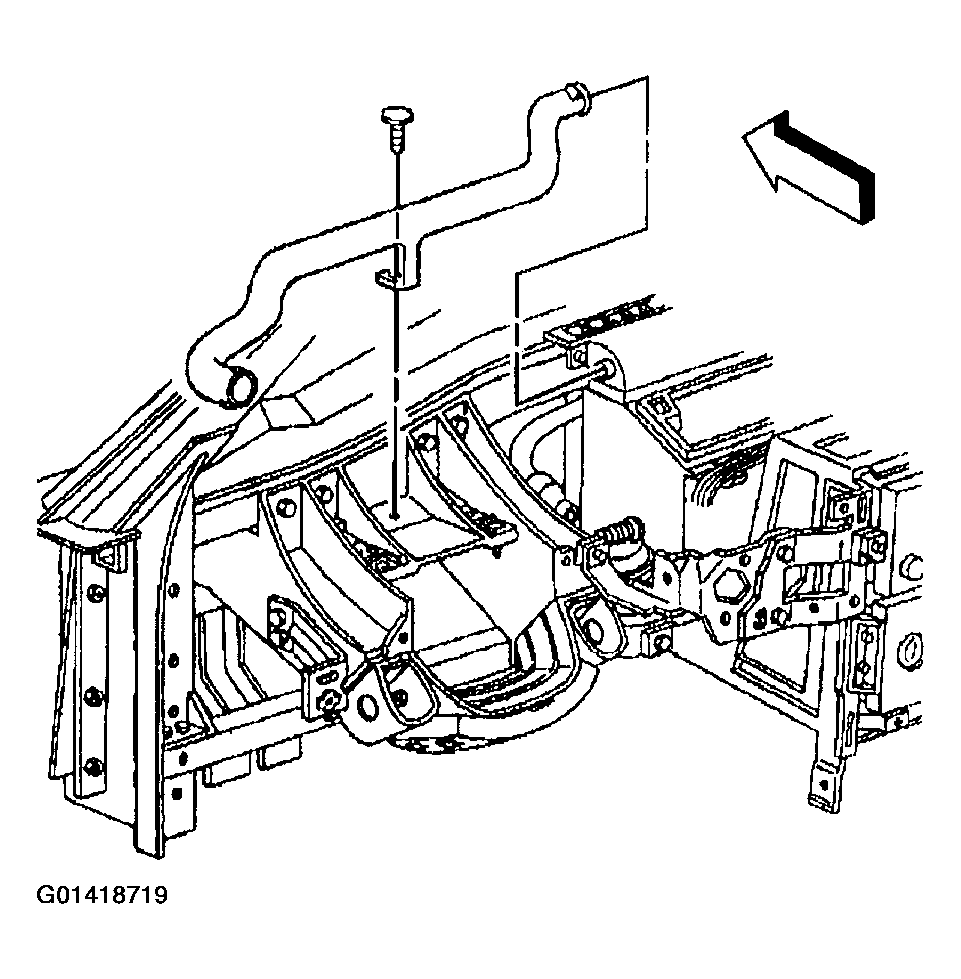

    Fig 2: Removing Side Window Defogger Lower Outlet Duct
    G01418719Courtesy of GENERAL MOTORS CORP.
