Tools Required

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

J 41790  A/C Compressor Holding Fixture

  1. Remove the A/C compressor from the vehicle.
  2. Clamp the J 41790  in a vise and attach the A/C compressor to the J 41790  .

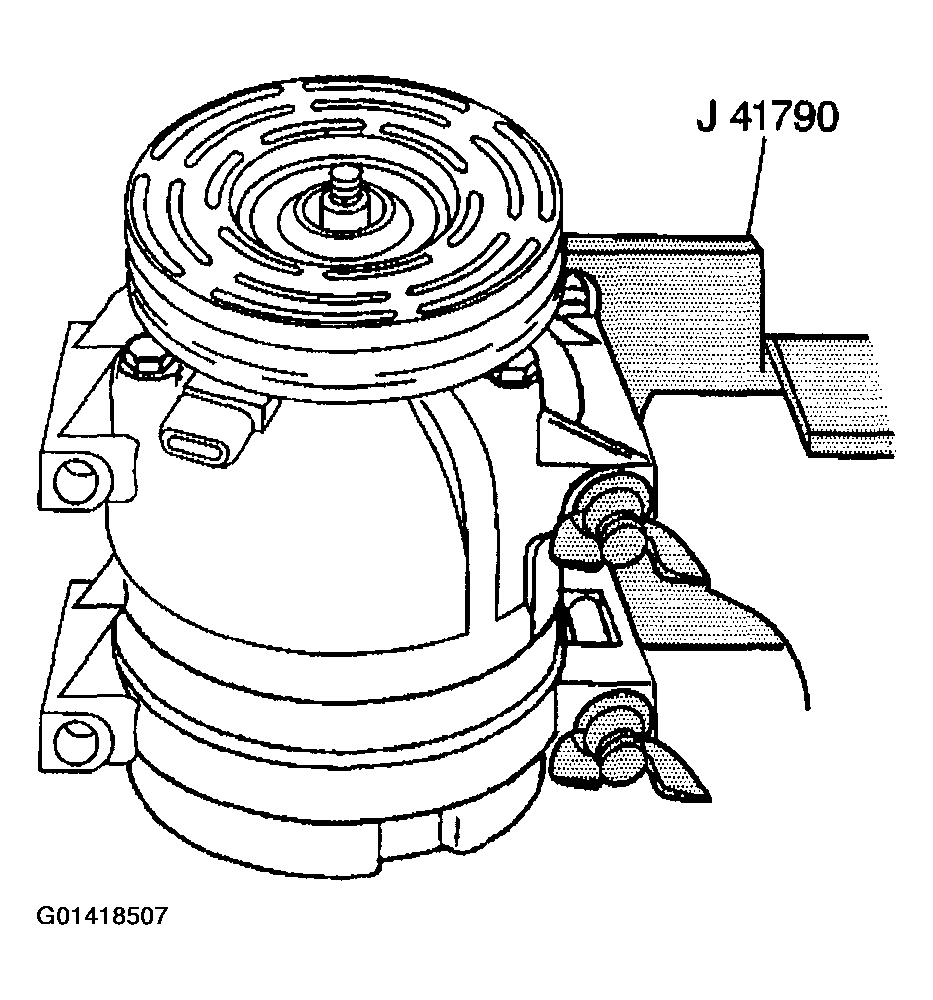

    Fig 1: Attaching A/C Compressor To J 41790
    G01418507Courtesy of GENERAL MOTORS CORP.
  3. Remove the pressure relief valve from the rear head of the A/C compressor.

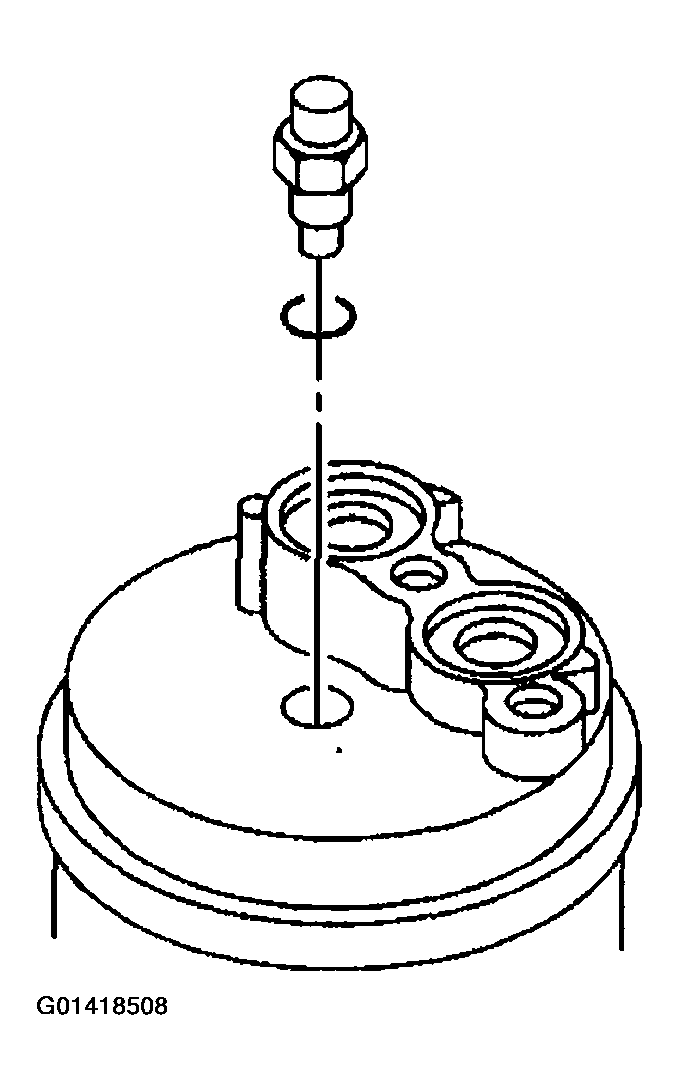

Fig 2: Removing Pressure Relief Valve From Rear Head Of A/C Compressor
G01418508Courtesy of GENERAL MOTORS CORP.
