Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air outlet into position on the upper trim pad.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws retaining the air outlet to the trim pad.

    Tighten

    Tighten the screws to 1.7 N.m (15 lb in).

    Fig 1: Installing Air Outlet
    G01418714Courtesy of GENERAL MOTORS CORP.
  3. Install the air distribution duct into position on the upper trim pad.

    Insert the duct retaining tabs into the trim pad slots.

  4. Install the screws retaining the air distribution duct to the trim pad.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

  5. Install the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.

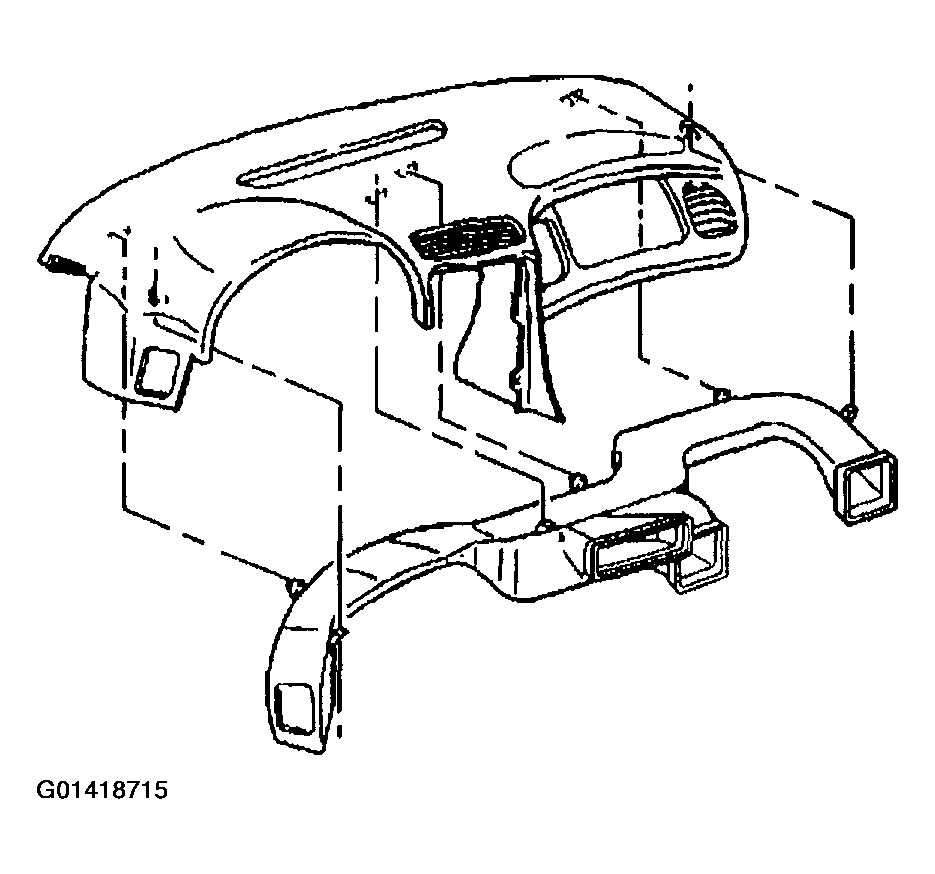

    Fig 2: Installing Air Distribution Duct
    G01418715Courtesy of GENERAL MOTORS CORP.
