Odor Diagnosis

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

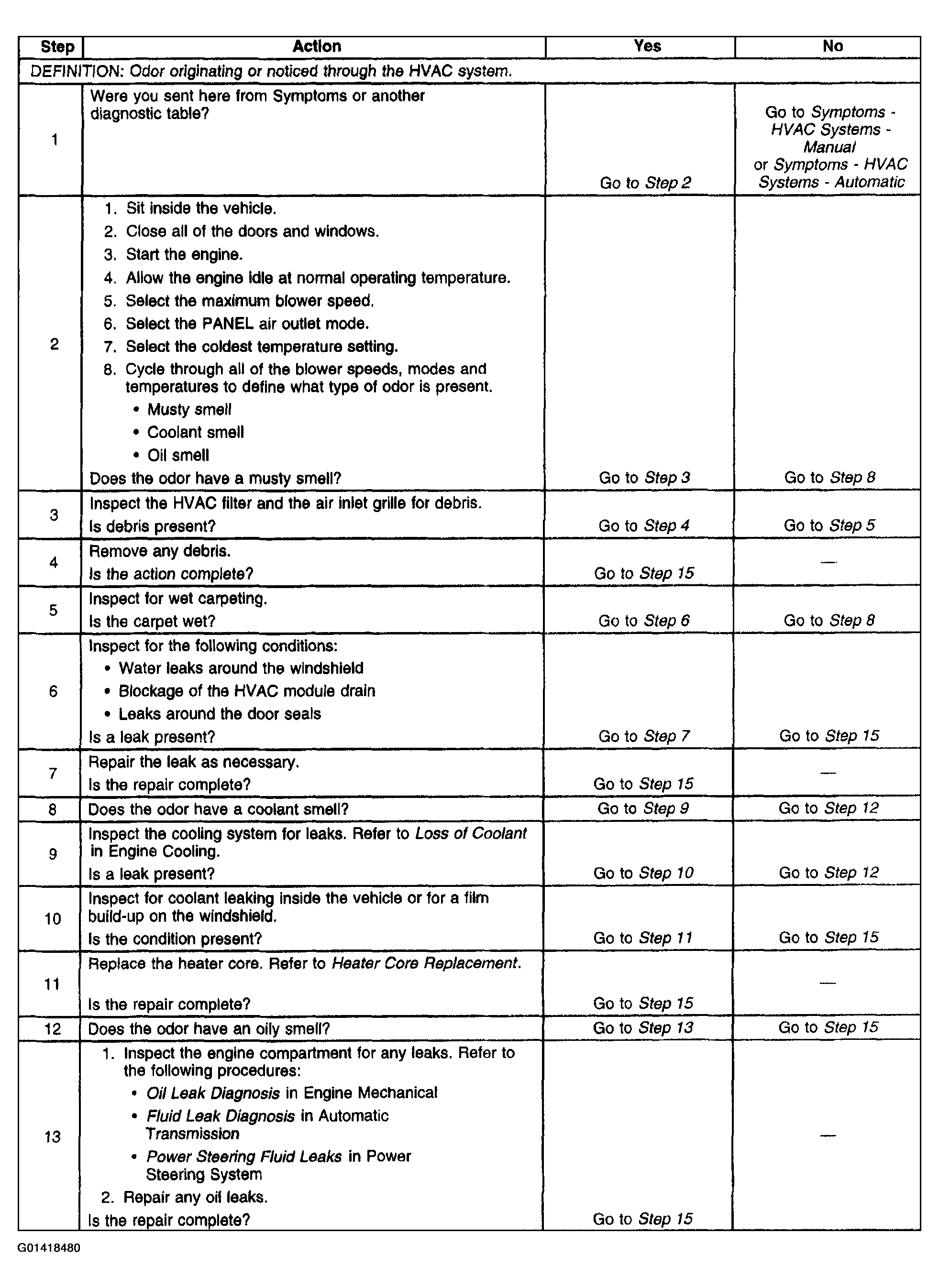

Fig 1: Odor Diagnosis Chart (Step 1-13)
G01418480Courtesy of GENERAL MOTORS CORP.

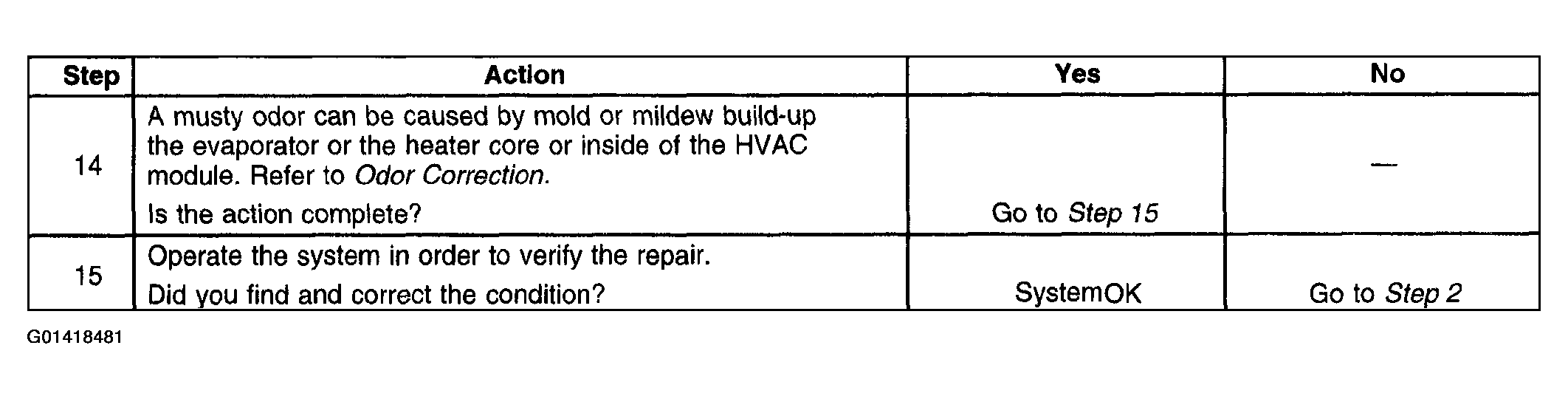

Fig 2: Odor Diagnosis Chart (Step 14-15)
G01418481Courtesy of GENERAL MOTORS CORP.
