Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition OFF.

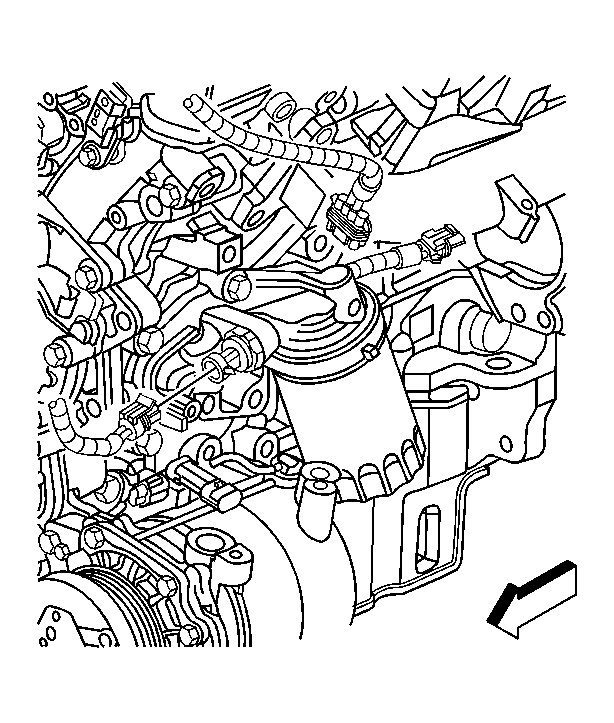

    2. Fig 1: Identifying Oil Pressure Sensor Electrical Connector
    GM1394025Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the oil pressure sensor electrical connector.

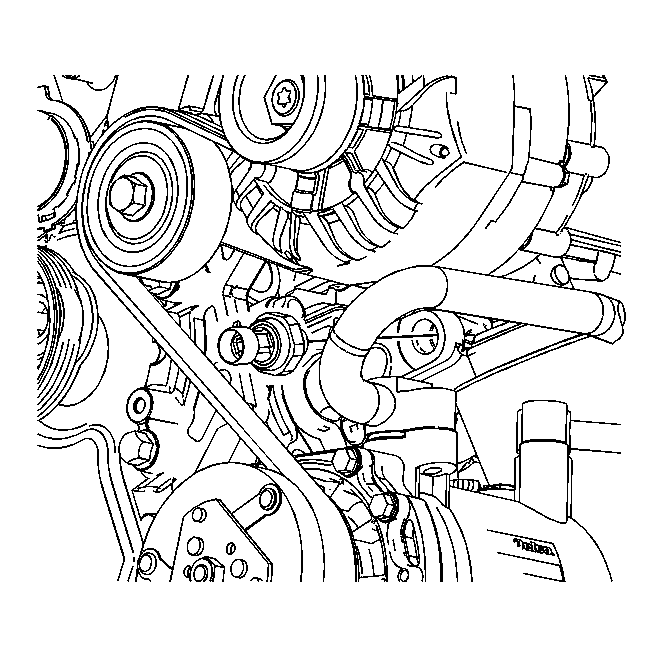

    3. Fig 2: Engine Oil Pressure Sensor
    GM1401653Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pressure sensor.
