Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: Remove the passenger side rear seat before removing the driver side rear seat.

Remove the seat leg trim covers.

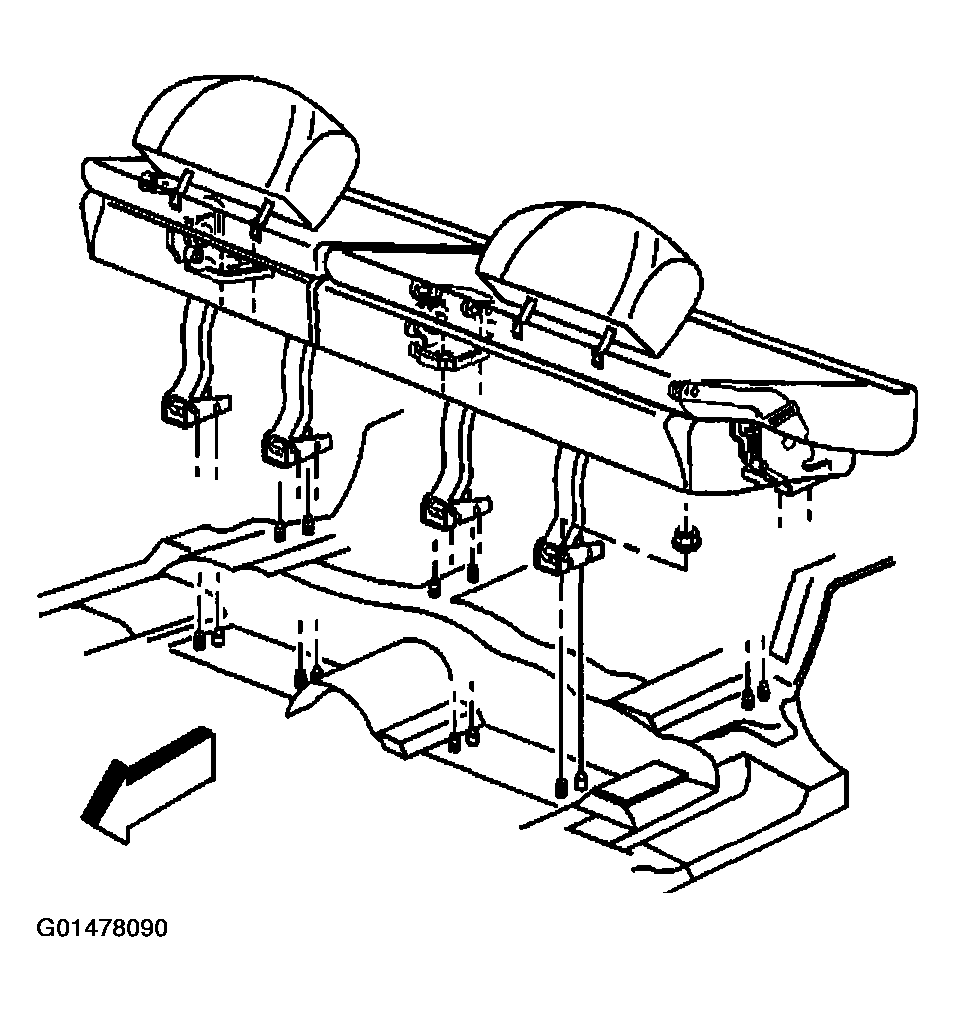

Fig 1: Seat Leg Trim Covers (4-Door Utility)
Courtesy of GENERAL MOTORS CORP.
Tilt the seat back slightly forward in order to remove the seat leg nuts.
Fold the seat in order to remove the rear seat nuts.
Remove the seat from the vehicle.

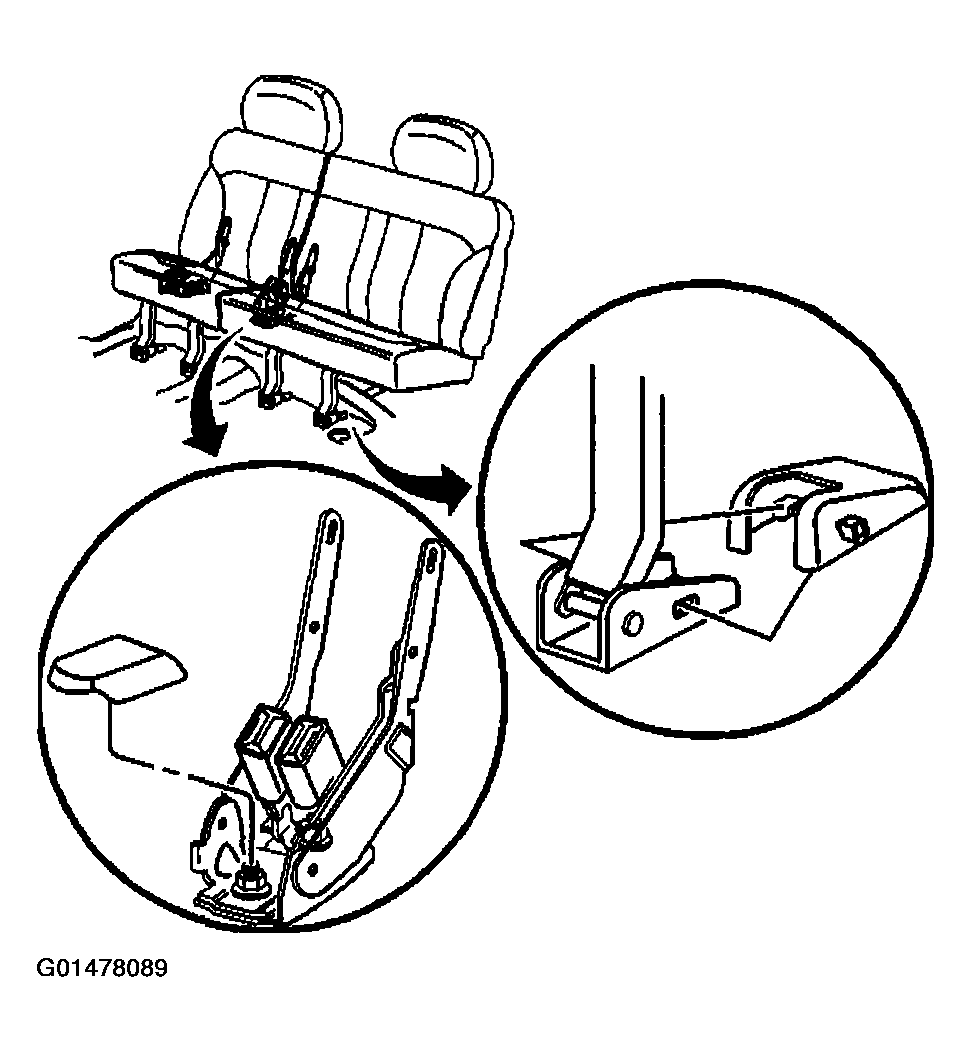

Fig 2: Removing Seat From Vehicle
Courtesy of GENERAL MOTORS CORP.
