Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Fold the seat back forward in order to install the rear seat mounting nuts.

    Tighten

    Tighten the rear seat mounting nuts to 80 N.m (59 lb ft).

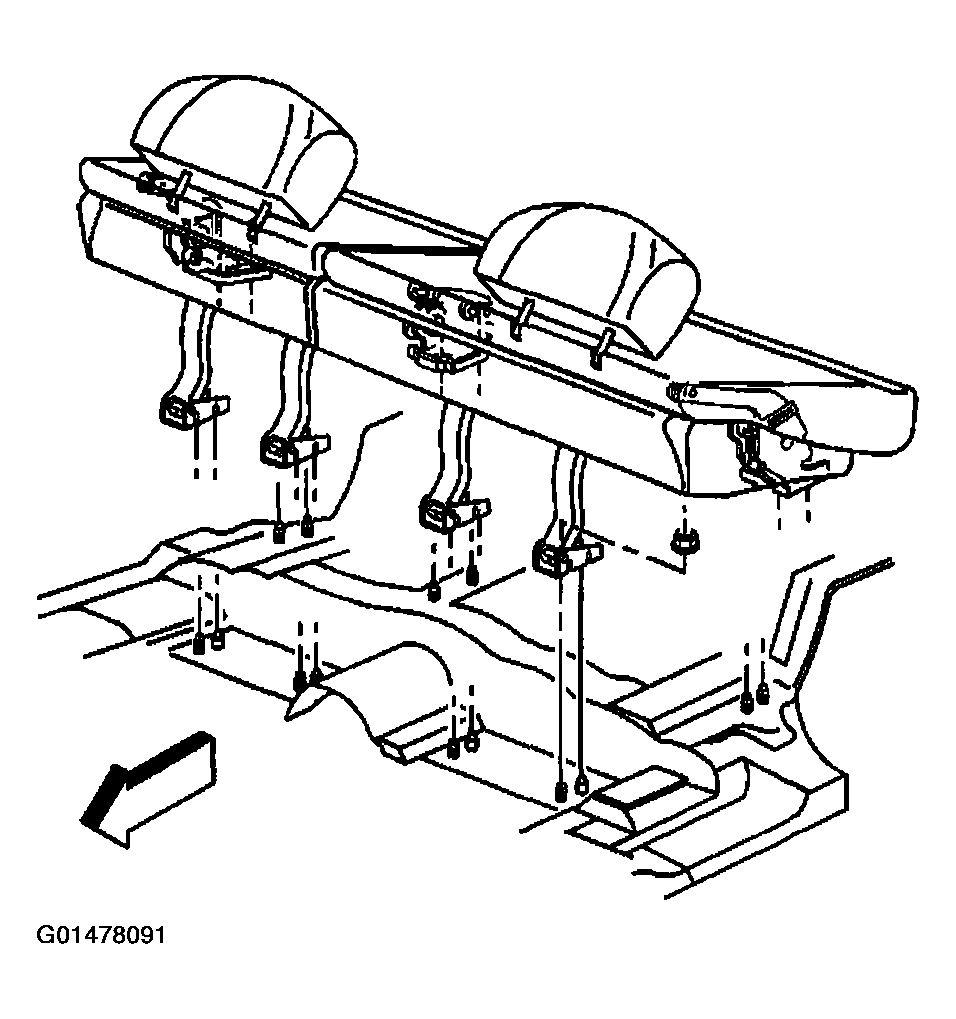

    Fig 1: Installing Seat To Vehicle
    G01478091Courtesy of GENERAL MOTORS CORP.
  3. Install the seat leg trim covers.

    Ensure that the covers lock into place.

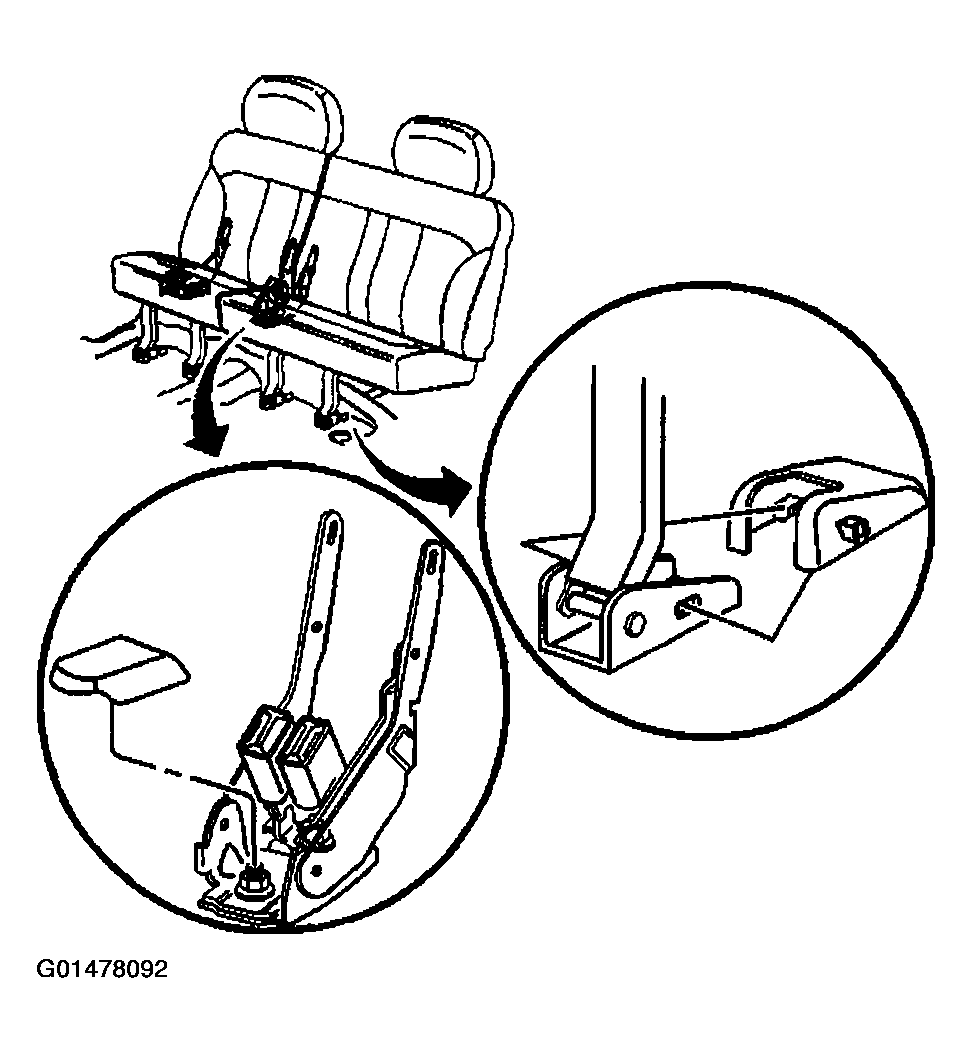

    Fig 2: Seat Leg Trim Covers (4-Door Utility)
    G01478092Courtesy of GENERAL MOTORS CORP.
