Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bench .
  2. Remove the seat back release lever, if equipped.

    Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - Front .

  3. Remove the seat back. Refer to SEAT BACK REPLACEMENT - Front (Bench Seat)  or SEAT BACK REPLACEMENT - Front (Bucket Seat) .
  4. Separate the J-strips from the seat bottom frame.
  5. Remove the manual lumbar knob lever, if equipped. Refer to LUMBAR SUPPORT KNOB REPLACEMENT .

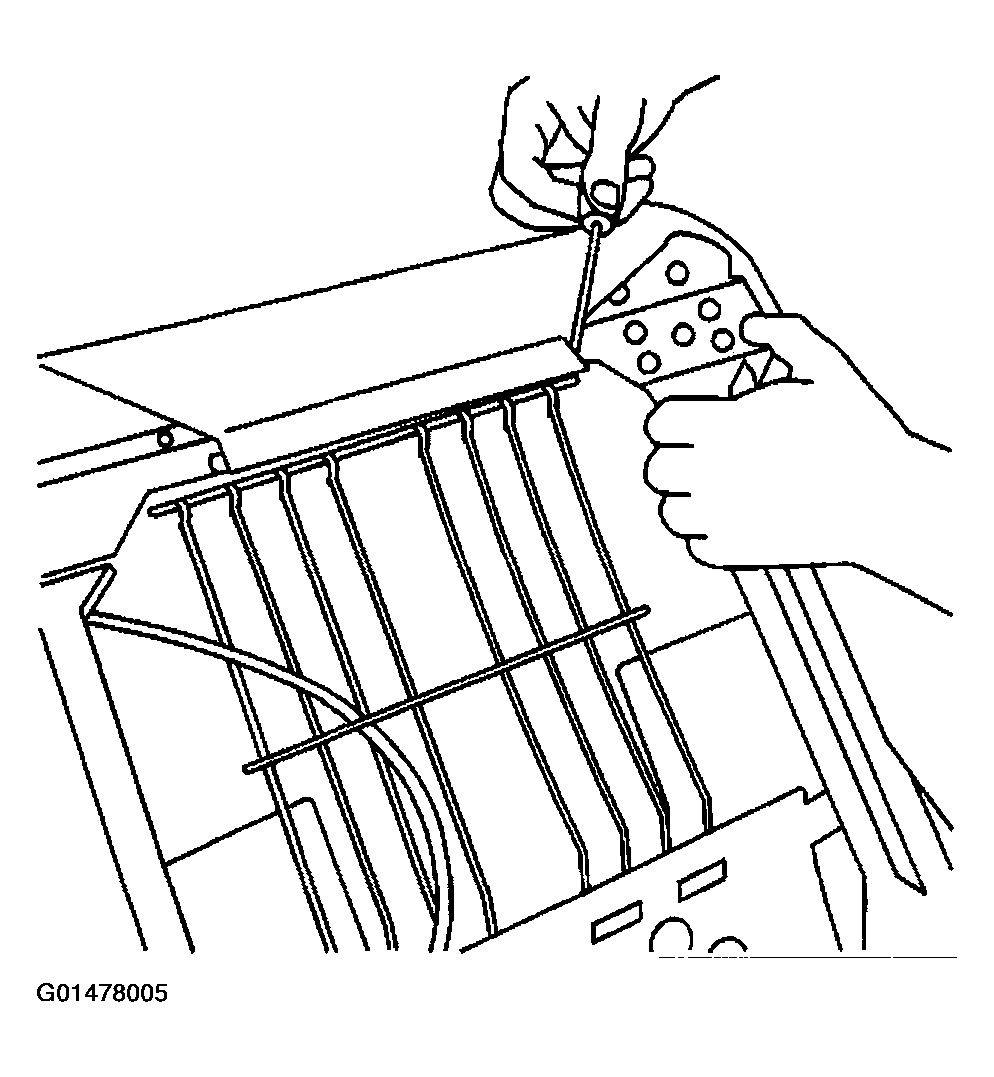

    Fig 1: Removing J-Strips From Seat Bottom Frame
    G01478005Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat bottom cover.
  7. Remove the seat bottom pad.
