Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bucket .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - Front .
  3. Remove the seat cushion trim cover and pad.

    Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT (BENCH)  or SEAT CUSHION TRIM COVER AND PAD REPLACEMENT (BUCKET) .

  4. Disconnect the electrical connector for the seat back recliner motor, if equipped.
  5. Remove the bolts securing the seat back to the seat adjuster assembly.
  6. Remove the seat back.

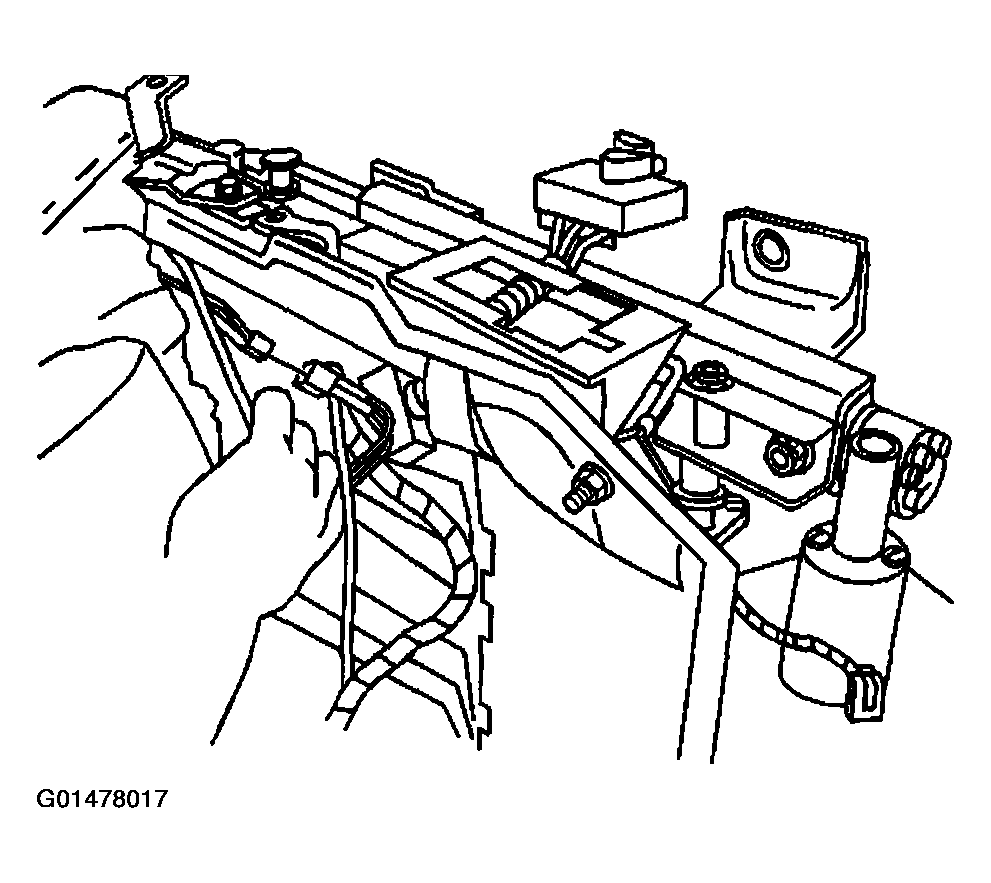

    Fig 1: Removing Seat Back From Seat Adjuster Assembly
    G01478017Courtesy of GENERAL MOTORS CORP.
