Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate lamp harness. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) or LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in Lighting Systems.
  2. Remove the bumper filler panel by pulling the retaining clips out of the body.
  3. Remove the bumper filler panel from the vehicle.

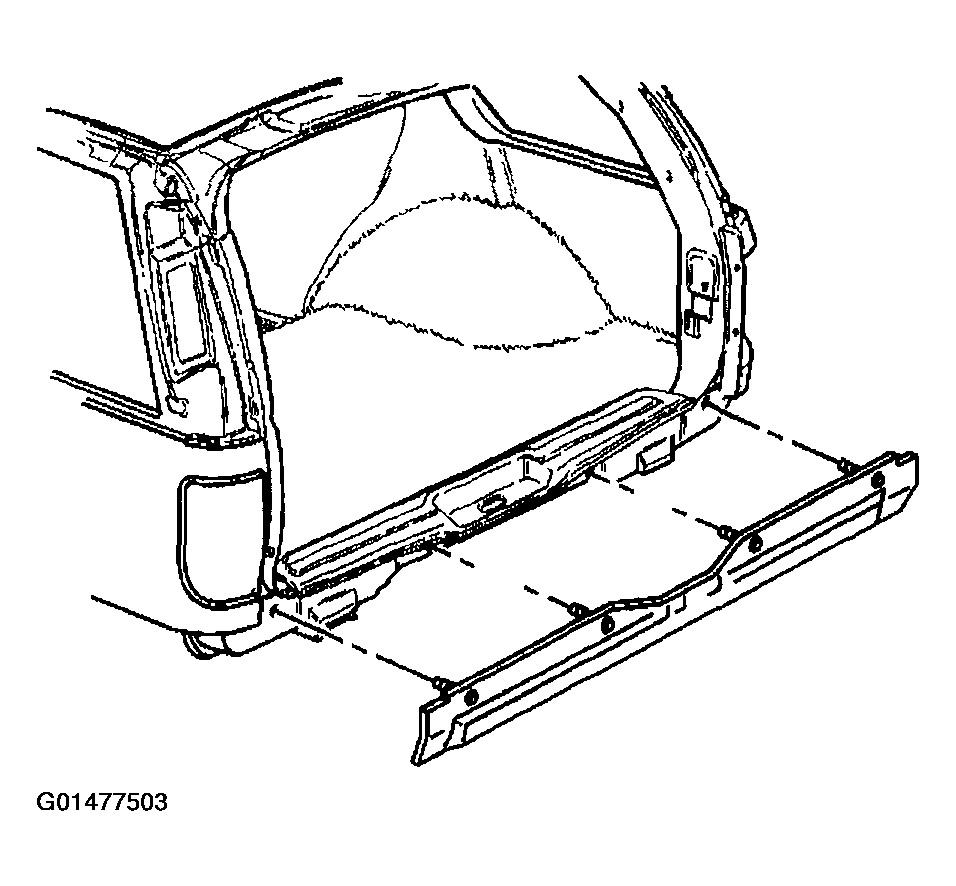

    Fig 1: Removing Bumper Filler Panel From Vehicle
    G01477503Courtesy of GENERAL MOTORS CORP.
