Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bumper filler panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts which retain the rear bumper filler panel to the vehicle.

    Tighten

    Tighten the rear bumper filler panel bolts to 1.5 N.m (14 lb in).

  3. Install the license plate lamp harness. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) or LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in Lighting Systems.

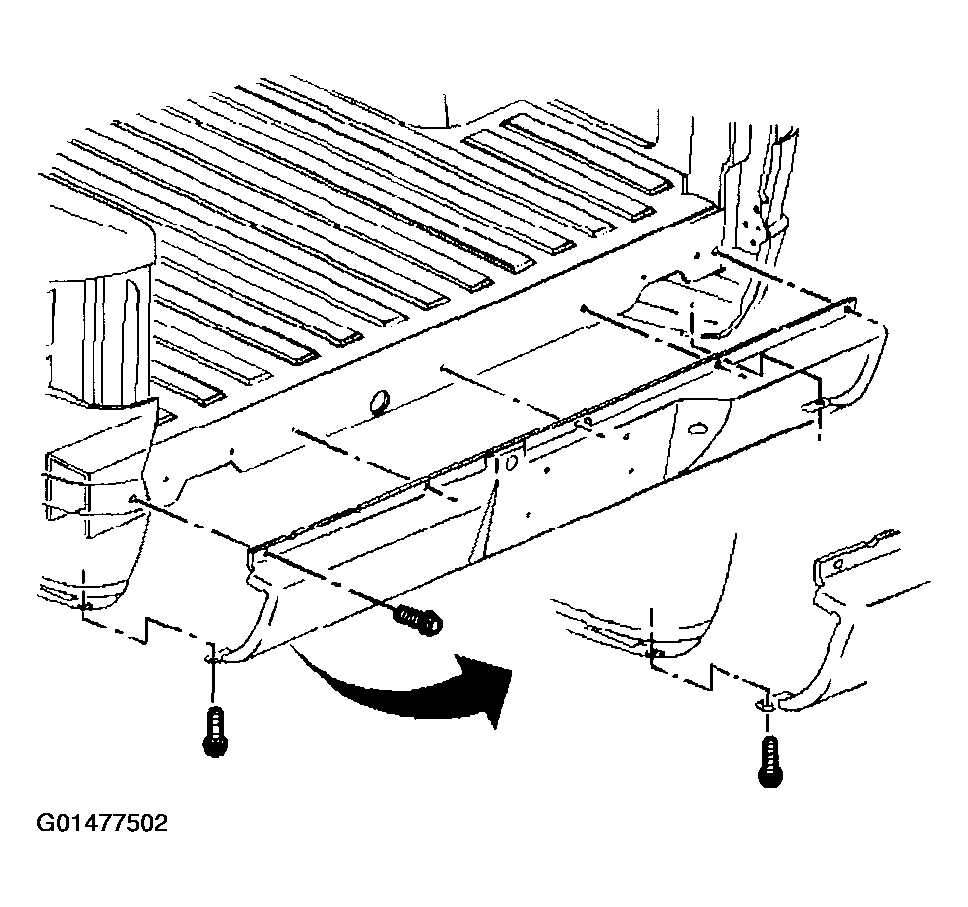

    Fig 1: Installing Bolts Retaining Rear Bumper Filler Panel To Vehicle
    G01477502Courtesy of GENERAL MOTORS CORP.
