Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper from the vehicle. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .
  2. Remove the license plate bracket, if equipped. Refer to LICENSE BRACKET REPLACEMENT - FRONT .
  3. Remove 6 push-in retainers securing the deflector to the bumper.
  4. Pull the air deflector retainers from the slots in the bumper.
  5. Remove the deflector from the vehicle.
  6. Remove the fog lamps from the deflector, if equipped. Refer to the appropriate procedure in Lighting Systems:

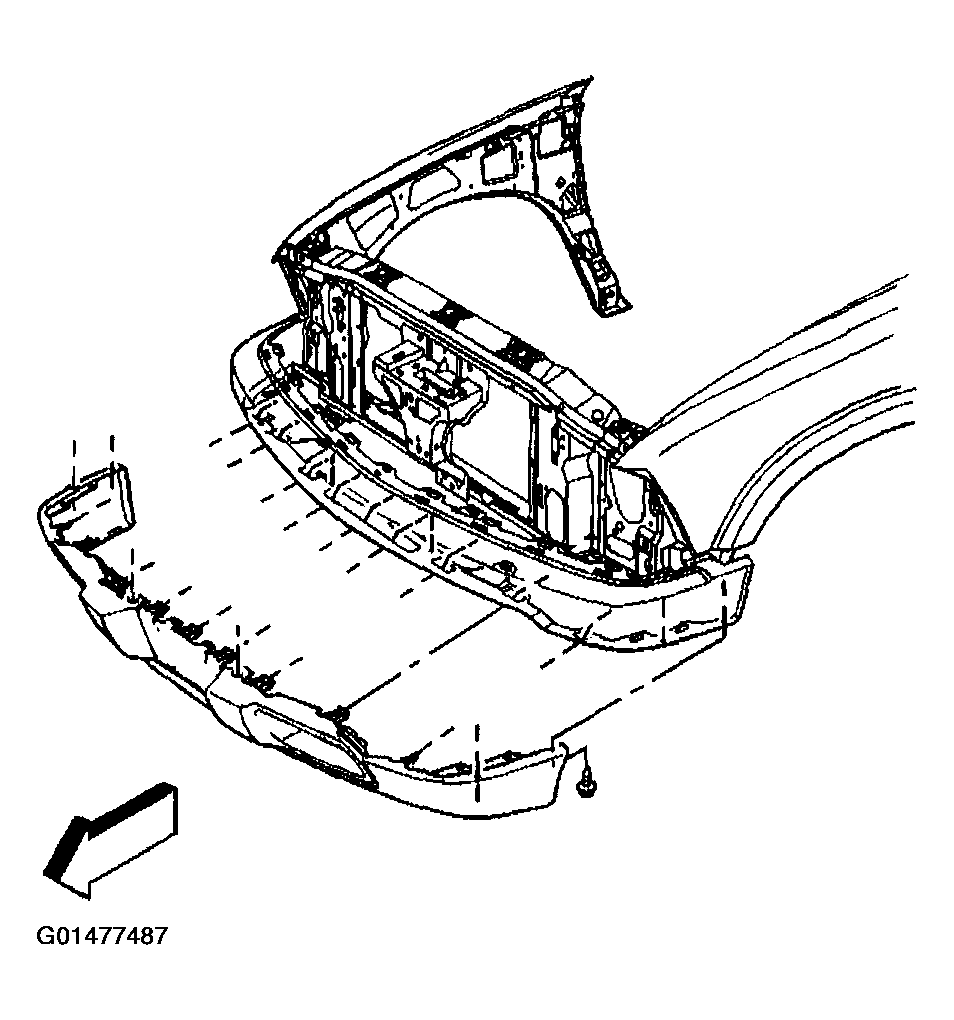

    Fig 1: Pulling Air Deflector Retainers From Slots In Bumper
    G01477487Courtesy of GENERAL MOTORS CORP.
