Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
Remove the screws that retain the instrument panel accessory trim plate to the instrument panel.
Remove the instrument panel accessory trim plate by releasing the retaining clips.

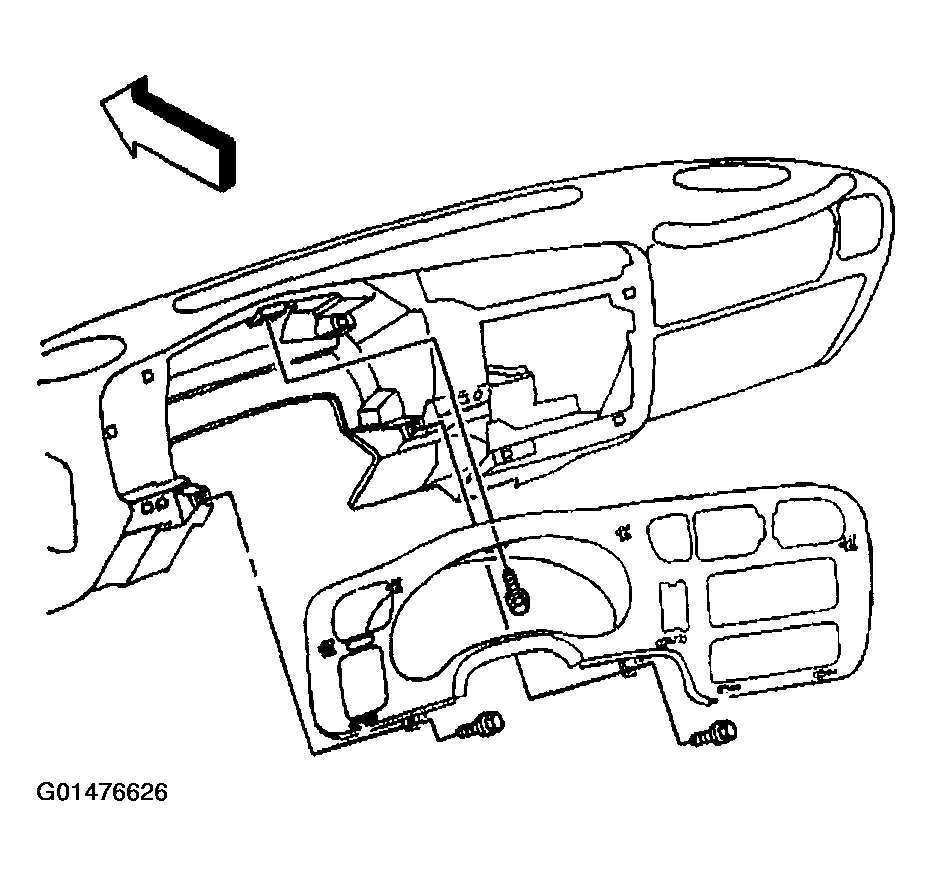

Fig 1: Removing Instrument Panel Accessory Trim Plate To Instrument Panel Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Position the instrument panel accessory trim plate in order to remove the control switches.
- Remove the selectable 4WD switch, if equipped. Refer to TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT or TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT in Transfer Case.
- Remove the inflatable restraint IP module switch. Refer to INFLATABLE RESTRAINT INSTRUMENT PANEL (I/P) MODULE DISABLE SWITCH REPLACEMENT in SIR.
- Remove the headlamp switch. Refer to HEADLAMP SWITCH REPLACEMENT in Lighting Systems.
