Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to the LOCK position.
  2. Remove the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  3. Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  4. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  5. Remove the nuts that retain the knee bolster from the steering column support.
  6. Remove the knee bolster from the studs.

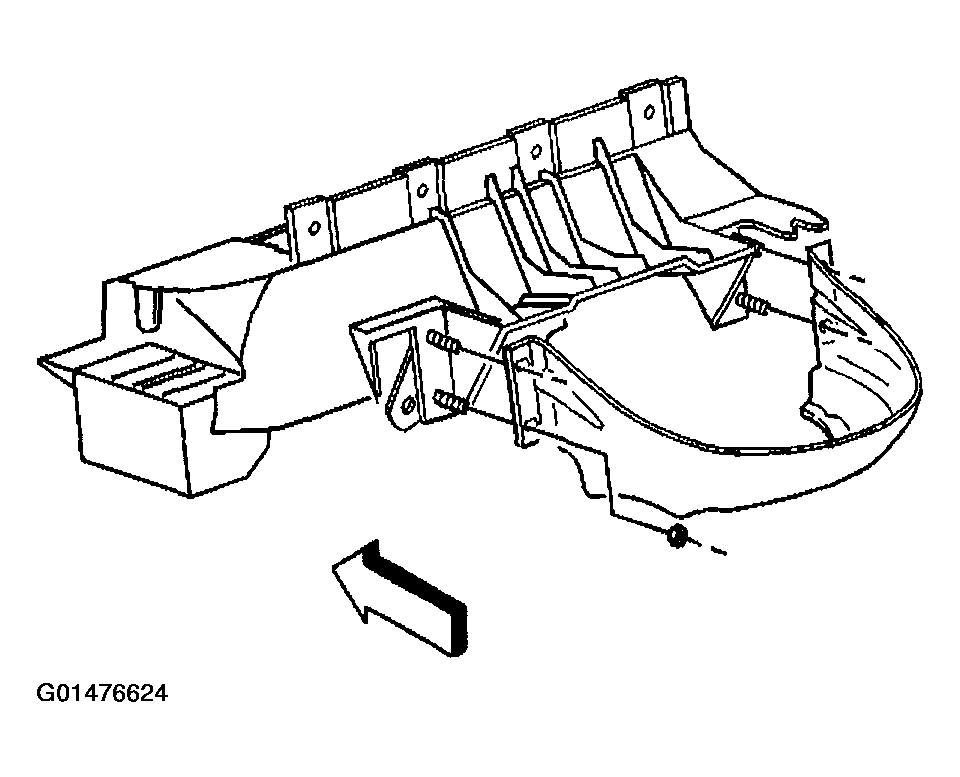

    Fig 1: Removing Knee Bolster From Studs
    G01476624Courtesy of GENERAL MOTORS CORP.
