Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster to the studs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts that retain the knee bolster to the steering column support.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  4. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  5. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

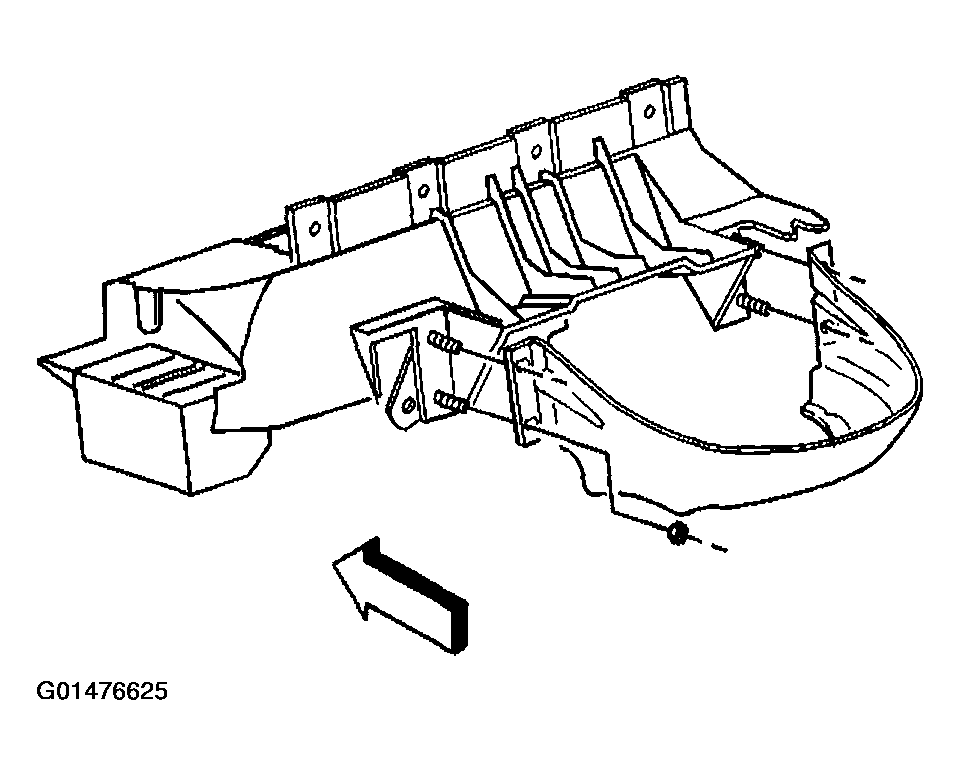

    Fig 1: Installing Knee Bolster To Studs
    G01476625Courtesy of GENERAL MOTORS CORP.
