Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw at the front of the console that retains the console to the roof.
  2. Pull downward at the rear of the console in order to remove the console from the roof.
  3. Disconnect the electrical connections as needed.

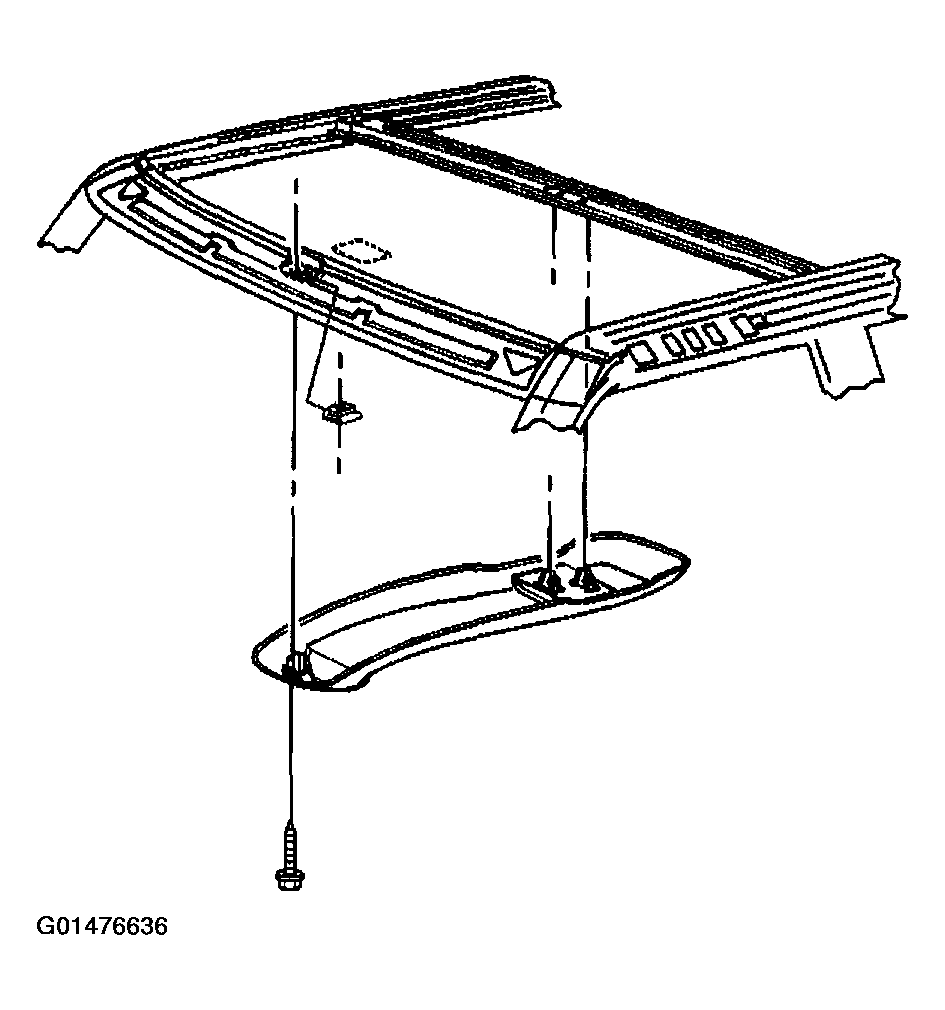

    Fig 1: Removing Console To Roof Retaining Screws
    G01476636Courtesy of GENERAL MOTORS CORP.
