Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the instrument panel compartment lamp and switch assembly.
  2. Install the storage compartment bezel to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the instrument panel compartment bezel to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

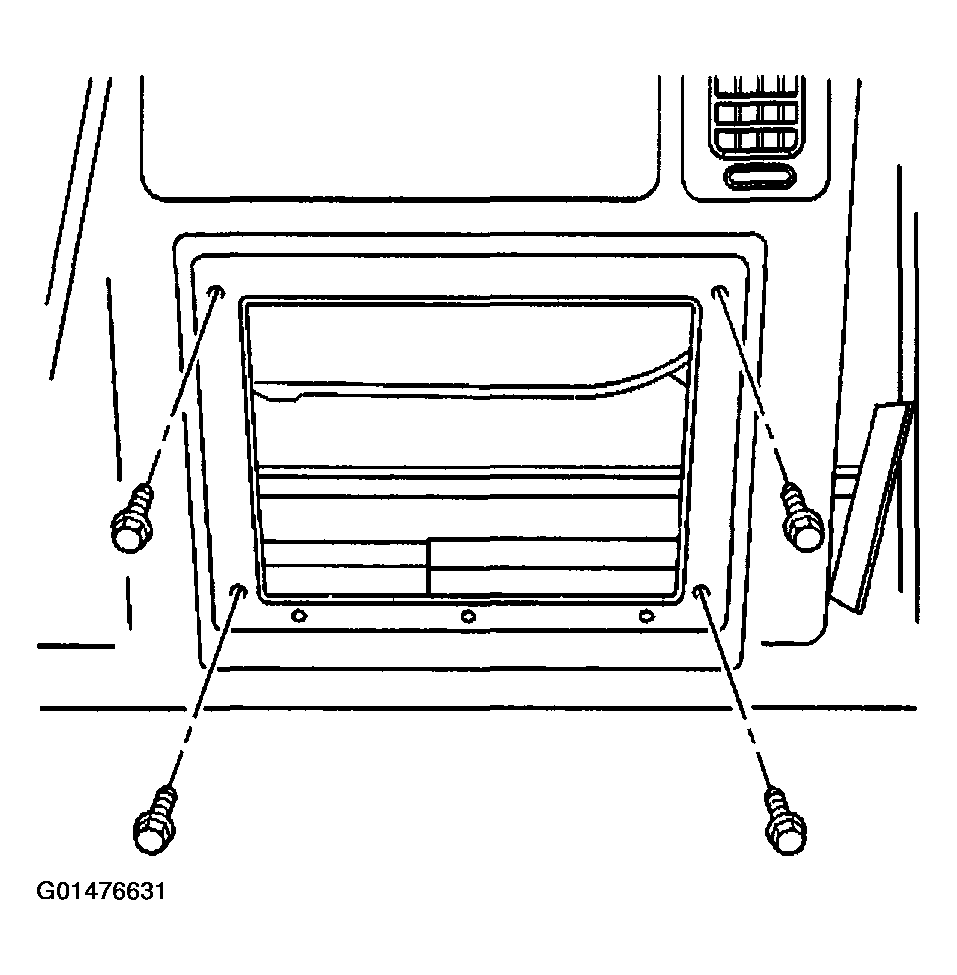

    Fig 1: Installing Instrument Panel Compartment Bezel To Instrument Panel Retaining Screws
    G01476631Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel storage compartment door to the instrument panel.
  5. Install the screws that retain the instrument panel compartment door hinges to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

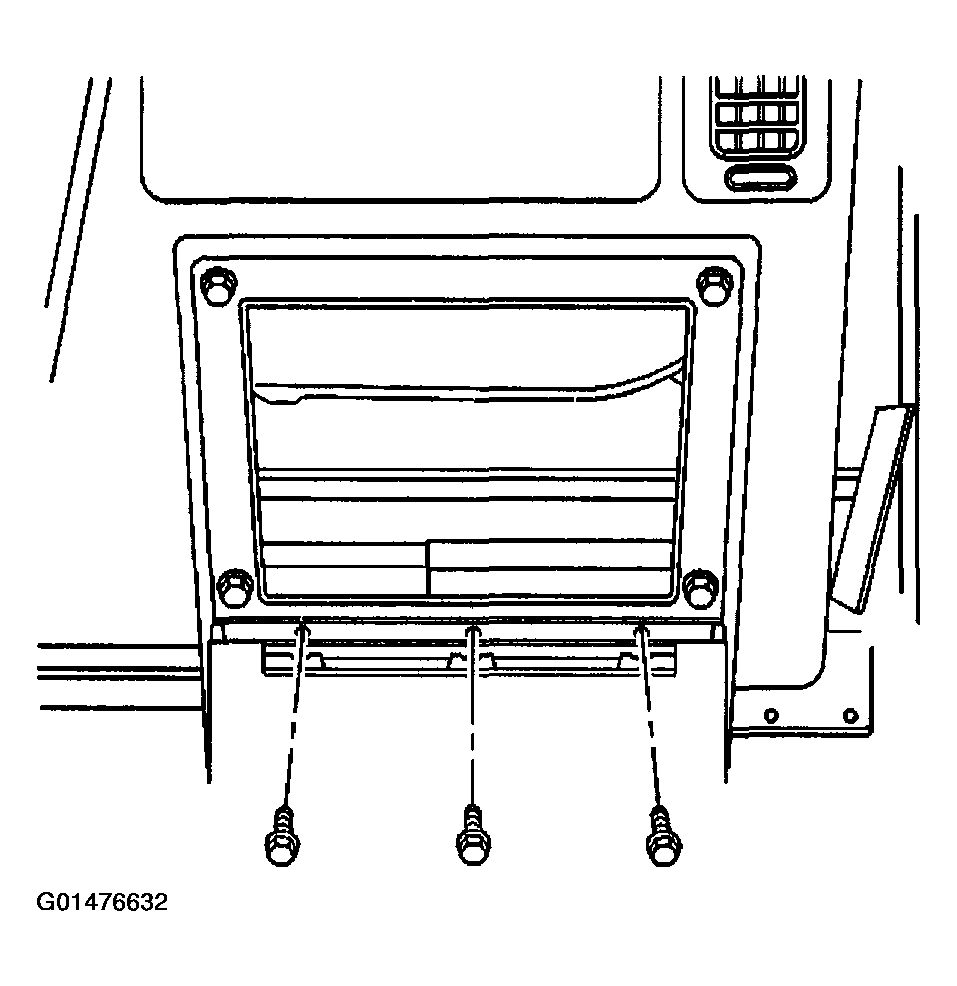

    Fig 2: Installing Instrument Panel Compartment Door Hinges To Instrument Panel Retaining Screws
    G01476632Courtesy of GENERAL MOTORS CORP.
  6. Push the storage compartment into place.
  7. Install the right side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

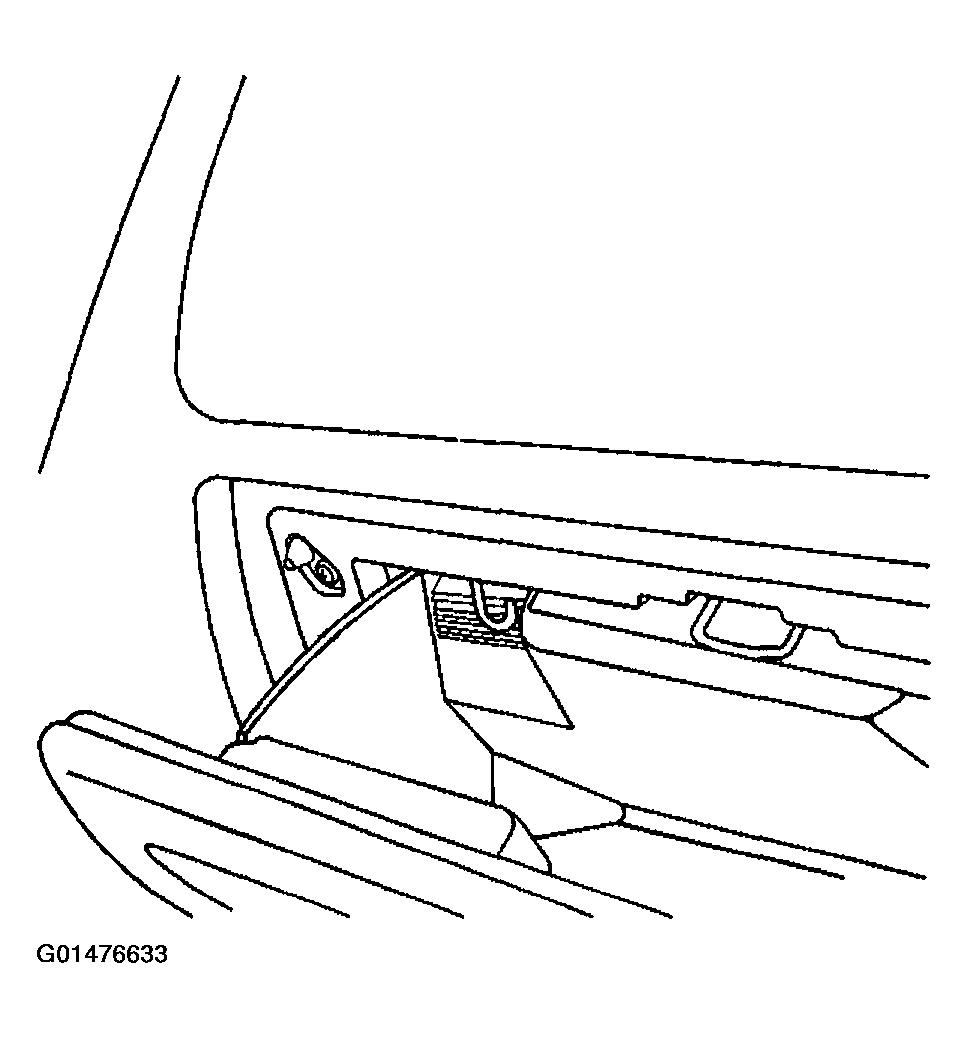

    Fig 3: Pushing Storage Compartment Into Place
    G01476633Courtesy of GENERAL MOTORS CORP.
