Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the data link connector (DLC) to the instrument panel sound insulator.

    Feed the DLC lines through the hole in the sound insulator.

  2. Remove the screws that retain the instrument panel sound insulator to the knee bolster and the cowl panel.
  3. Disconnect the electrical connectors from the remote control door lock receiver module.
  4. Remove and retain the remote control door lock receiver module from the instrument panel sound insulator (if equipped).

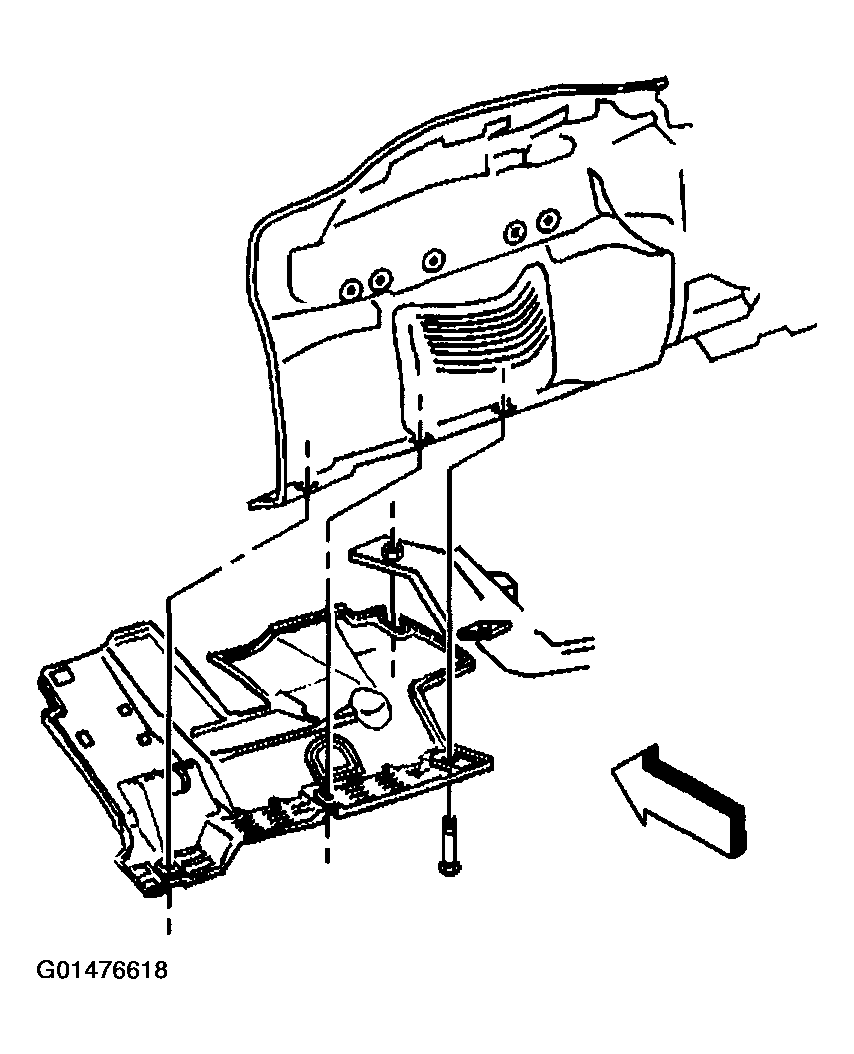

    Fig 1: Removing Instrument Panel Sound Insulator To Cowl Panel Retaining Screws
    G01476618Courtesy of GENERAL MOTORS CORP.
