Scan Tool Data List

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The scan tool data lists contain all the instrument panel, gages, and console related parameters that are available on the scan tool. The parameters in the list are arranged in alphabetical order. The data list column indicates the location of the parameter within the scan tool menu selections.

Use the scan tool data lists as directed by a diagnostic table or in order to supplement the diagnostic procedures. Begin all of the diagnostic procedures with DIAGNOSTIC SYSTEM CHECK - INSTRUMENT CLUSTER , DIAGNOSTIC SYSTEM CHECK - DRIVER INFORMATION SYSTEMS , or DIAGNOSTIC SYSTEM CHECK - AUDIBLE WARNINGS .

Use the scan tool data lists only after the following is determined:

There is no published DTC procedure nor published symptom procedure for the customer concern.
The DTC or symptom procedure indicated by the diagnostic system check does not resolve the customer concern.

The typical data values are obtained from a properly operating vehicle under the conditions specified in the first row of the scan tool data list table. Comparison of the parameter values from the suspect vehicle with the typical data values may reveal the source of the customer concern.

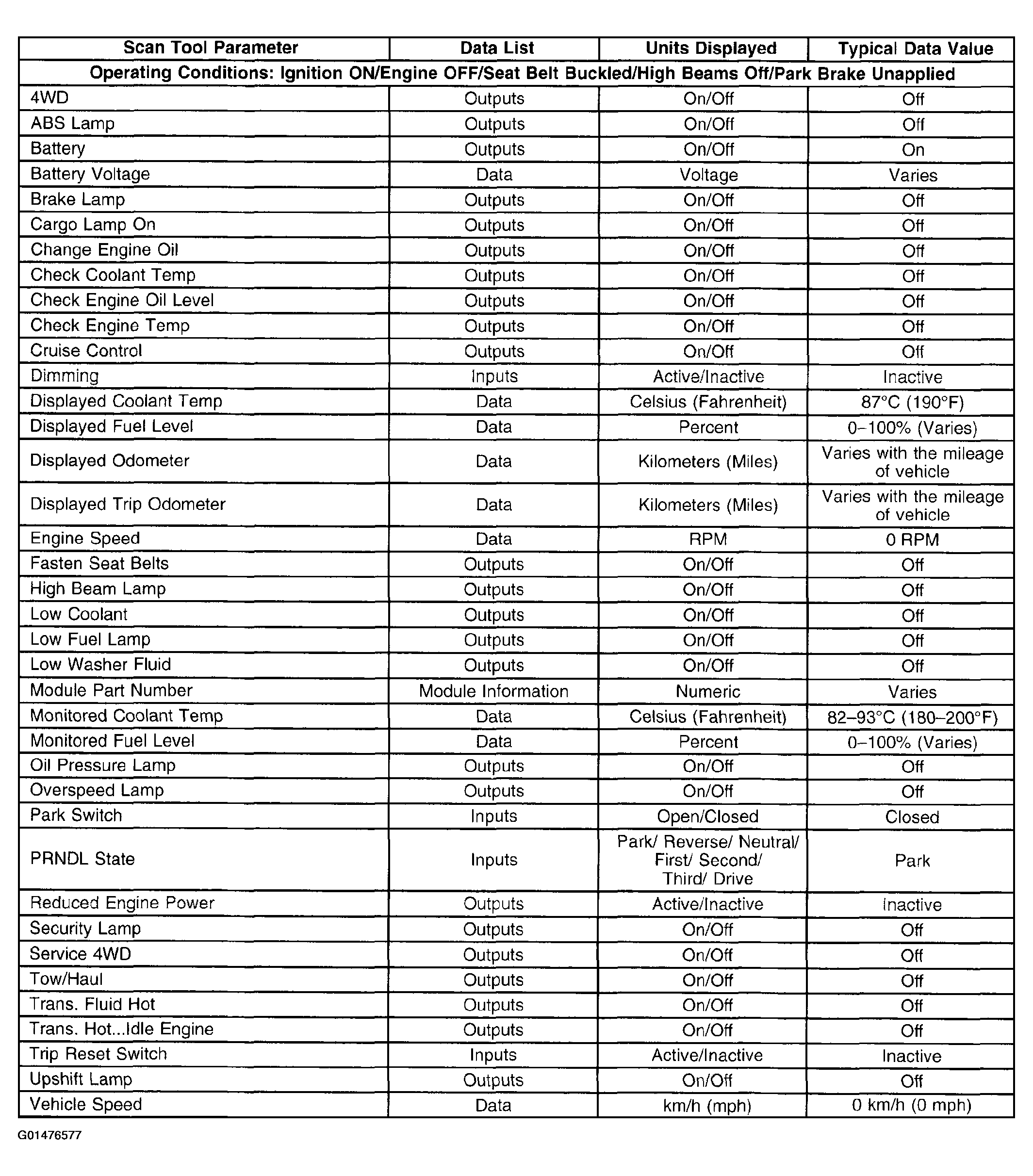

Fig 1: Body Control Module (BCM) Scan Tool Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

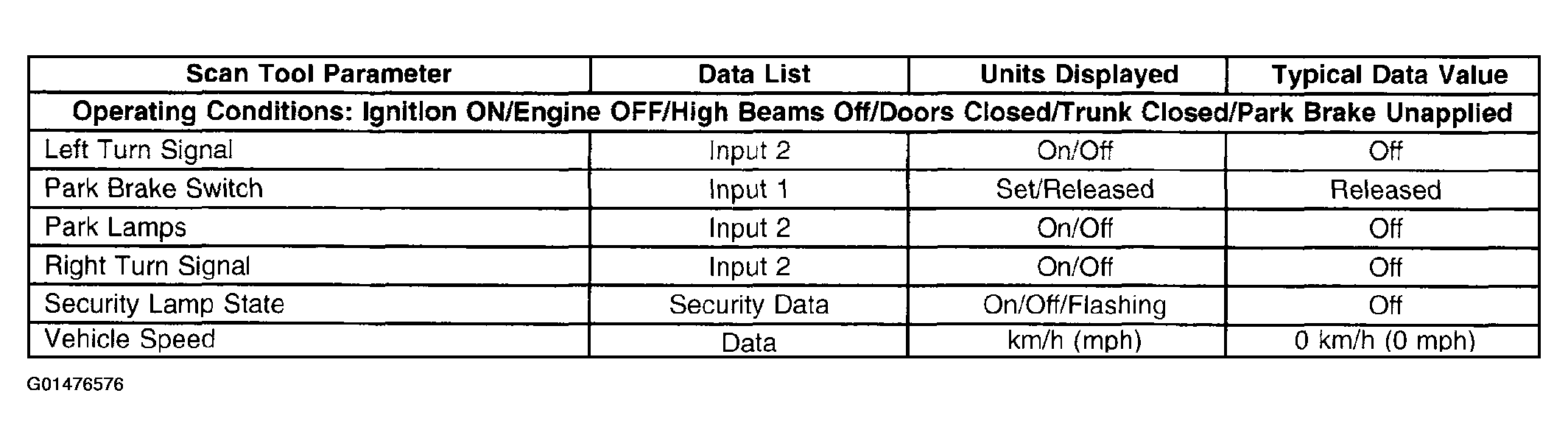

Fig 2: Body Control Module (BCM) Scan Tool Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

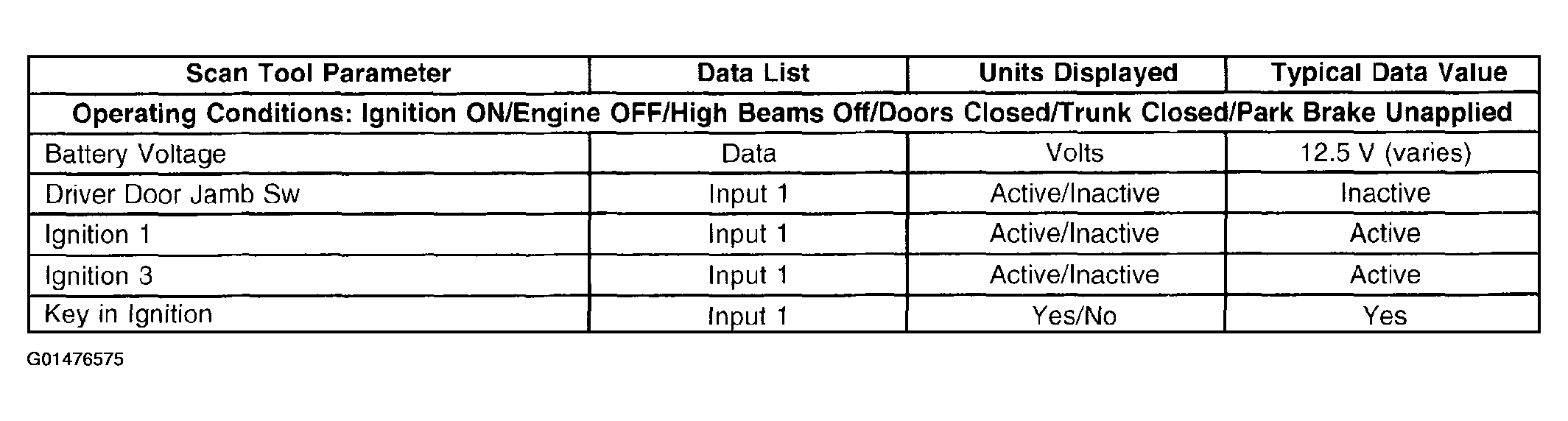

Fig 3: Instrument Panel Cluster (IPC) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

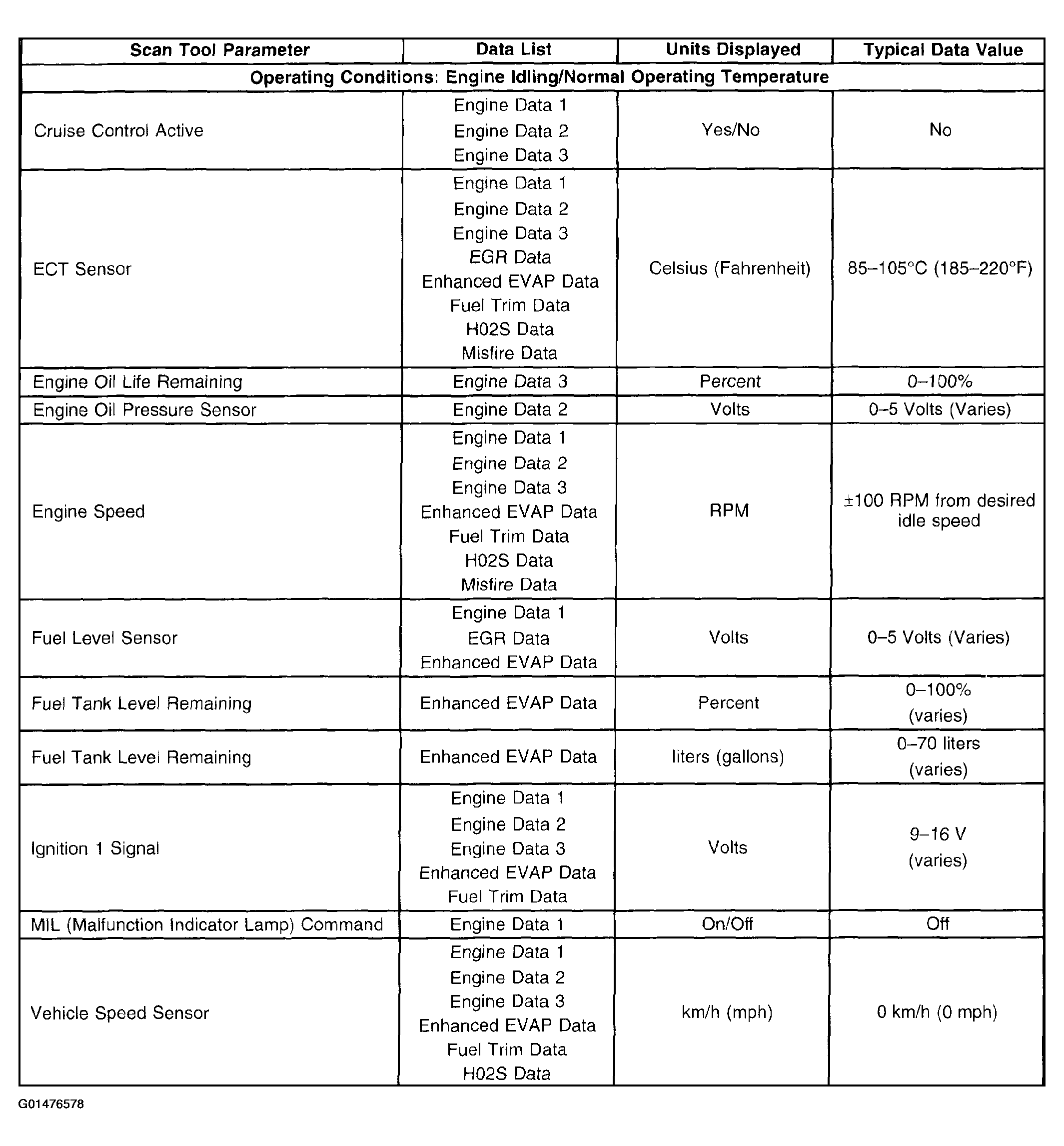

Fig 4: Powertrain Control Module (PCM) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.
