Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring seal to the vehicle speed sensor.
  2. Coat the new O-ring seal with a thin film of transmission fluid.
  3. Install the vehicle speed sensor
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the vehicle speed sensor retaining bolt.

    Tighten

    Tighten the vehicle speed sensor retaining bolt to 16 N.m (12 lb ft).

  5. Connect the vehicle speed sensor electrical connector.
  6. Lower the vehicle.

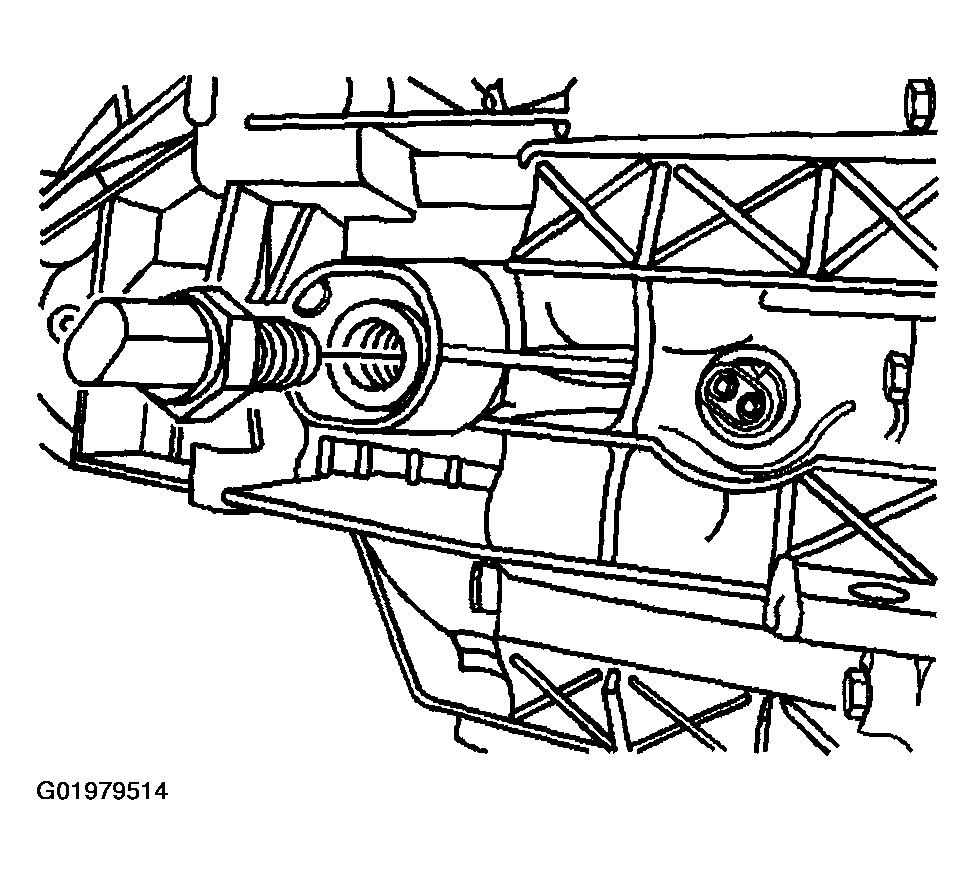

    Fig 1: Vehicle Speed Sensor
    G01979514Courtesy of GENERAL MOTORS CORP.
