Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Support the vehicle with safety stands.
  3. Disconnect the backup lamp switch electrical connector.
  4. Remove the backup lamp switch.

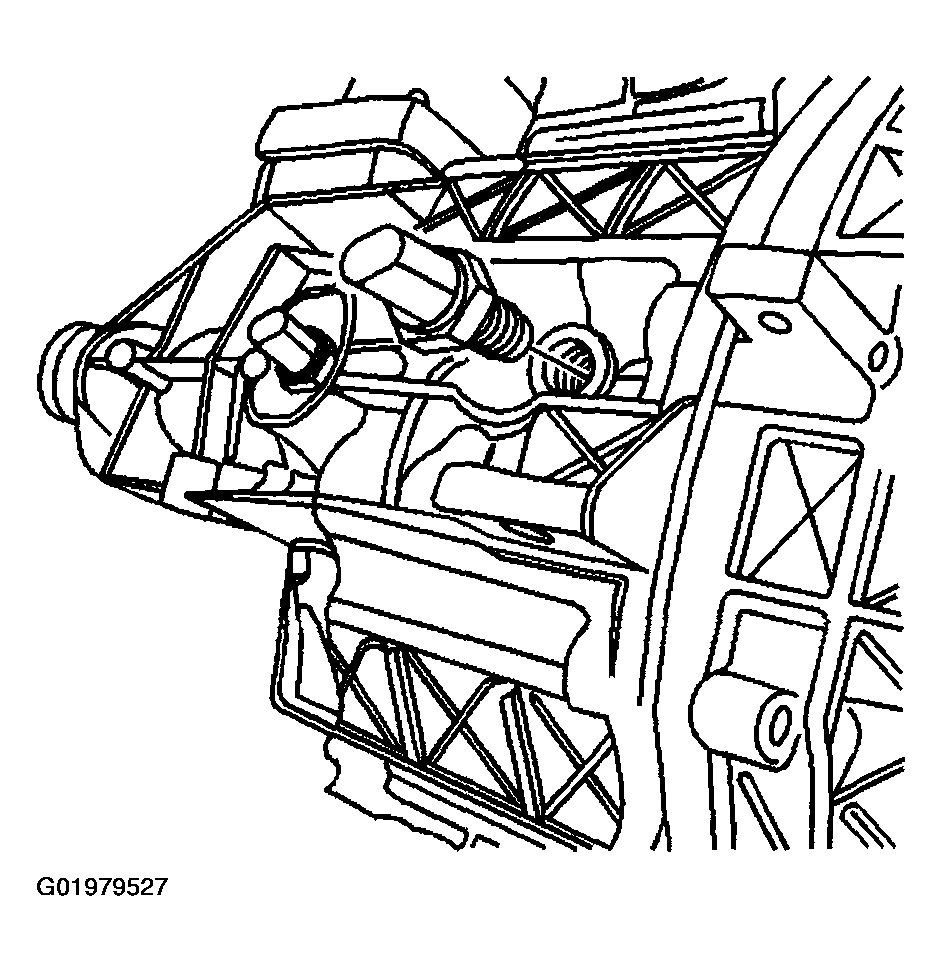

    Fig 1: Backup Lamp Switch
    G01979527Courtesy of GENERAL MOTORS CORP.
