Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. This step tests the mechanical state of the TCC. When the PCM commands the TCC solenoid valve OFF, the slip speed should increase.

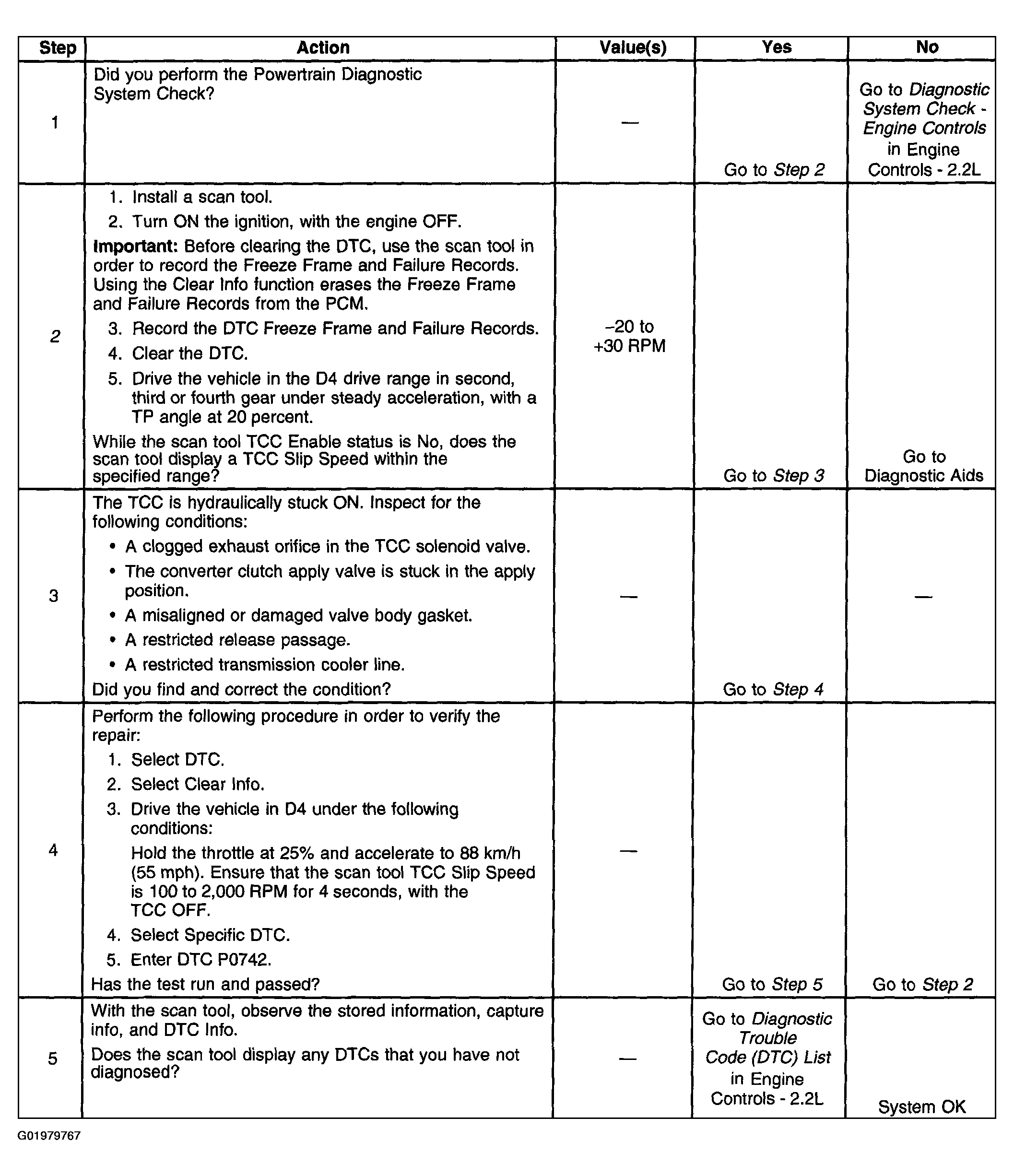

Fig 1: DTC P0742 (2.2L)
G01979767Courtesy of GENERAL MOTORS CORP.
