HVAC Schematics (Blower Controls (C42))

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

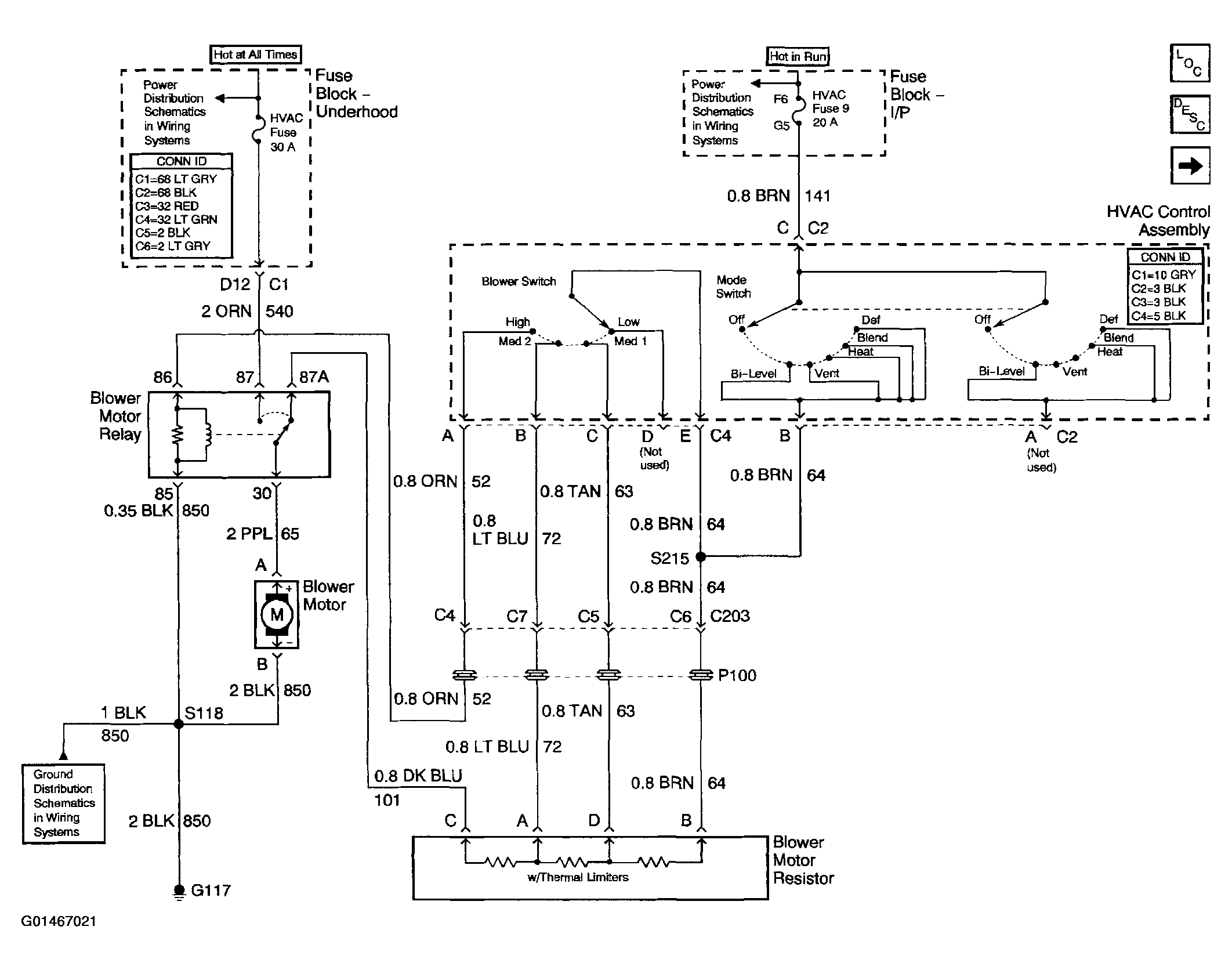

Fig 1: HVAC Schematics (Blower Controls (C42))

Courtesy of GENERAL MOTORS CORP.

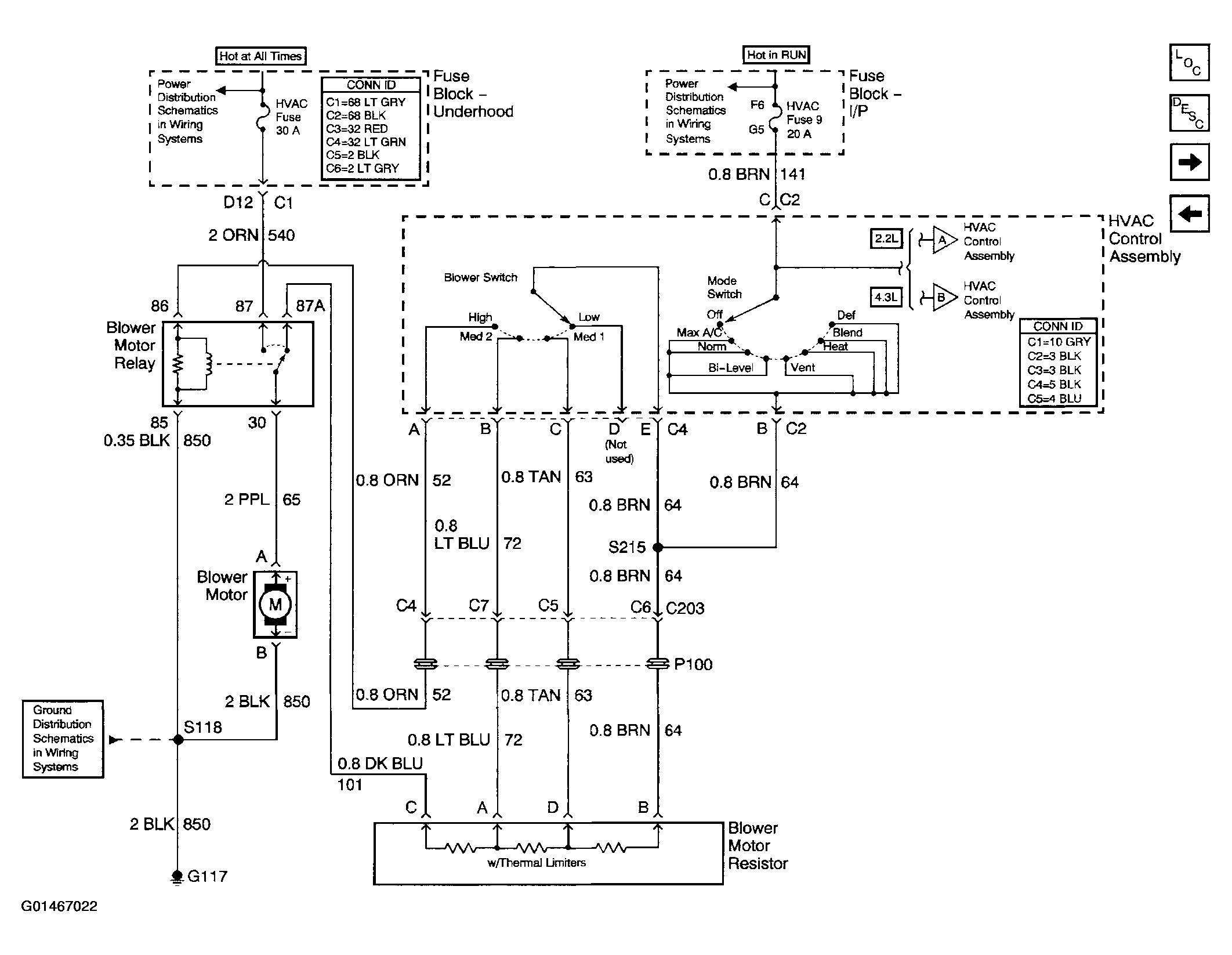

Fig 2: HVAC Schematics (Blower Controls (C60))

Courtesy of GENERAL MOTORS CORP.

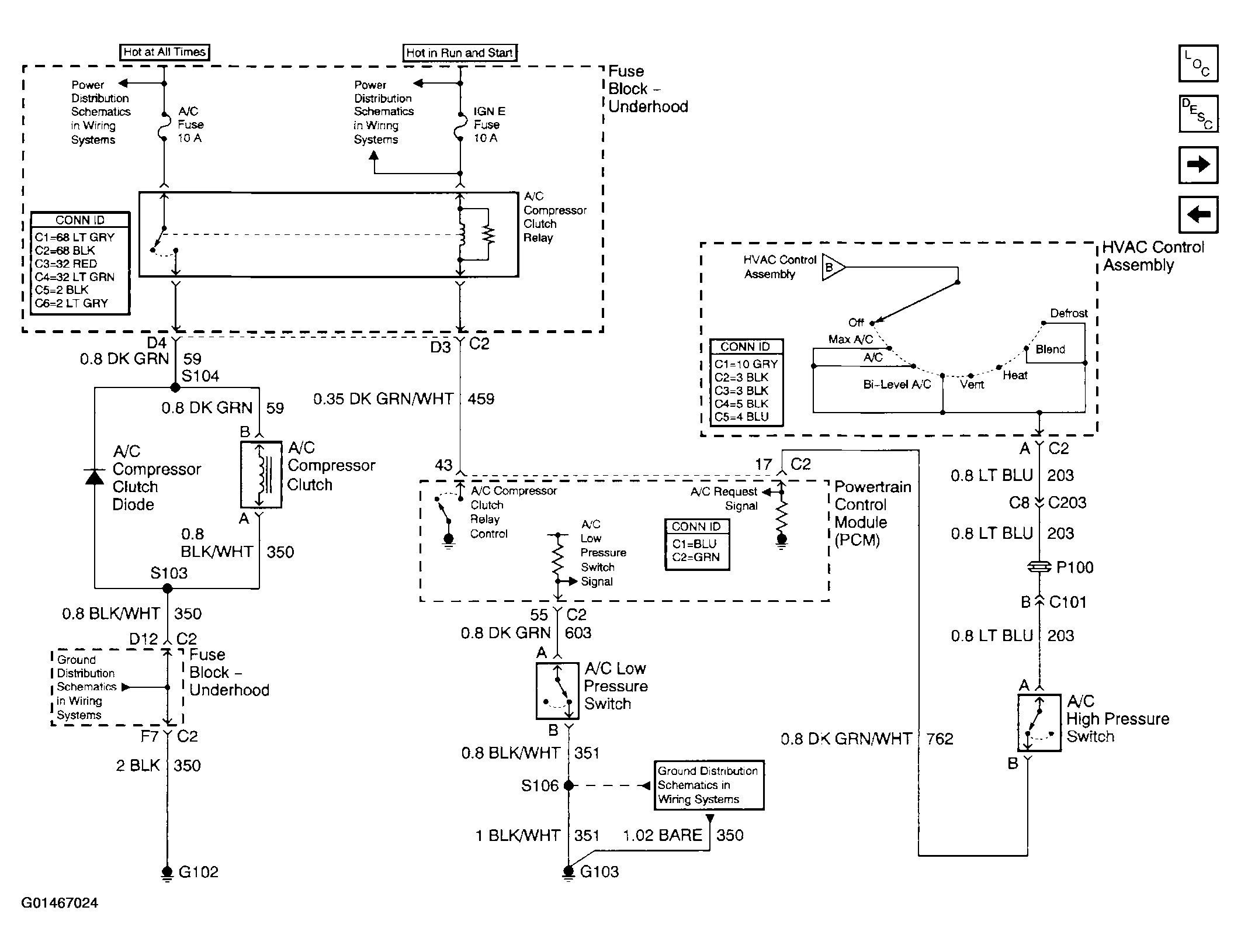

Fig 3: HVAC Schematics (Compressor Controls - 2.2L)

Courtesy of GENERAL MOTORS CORP.

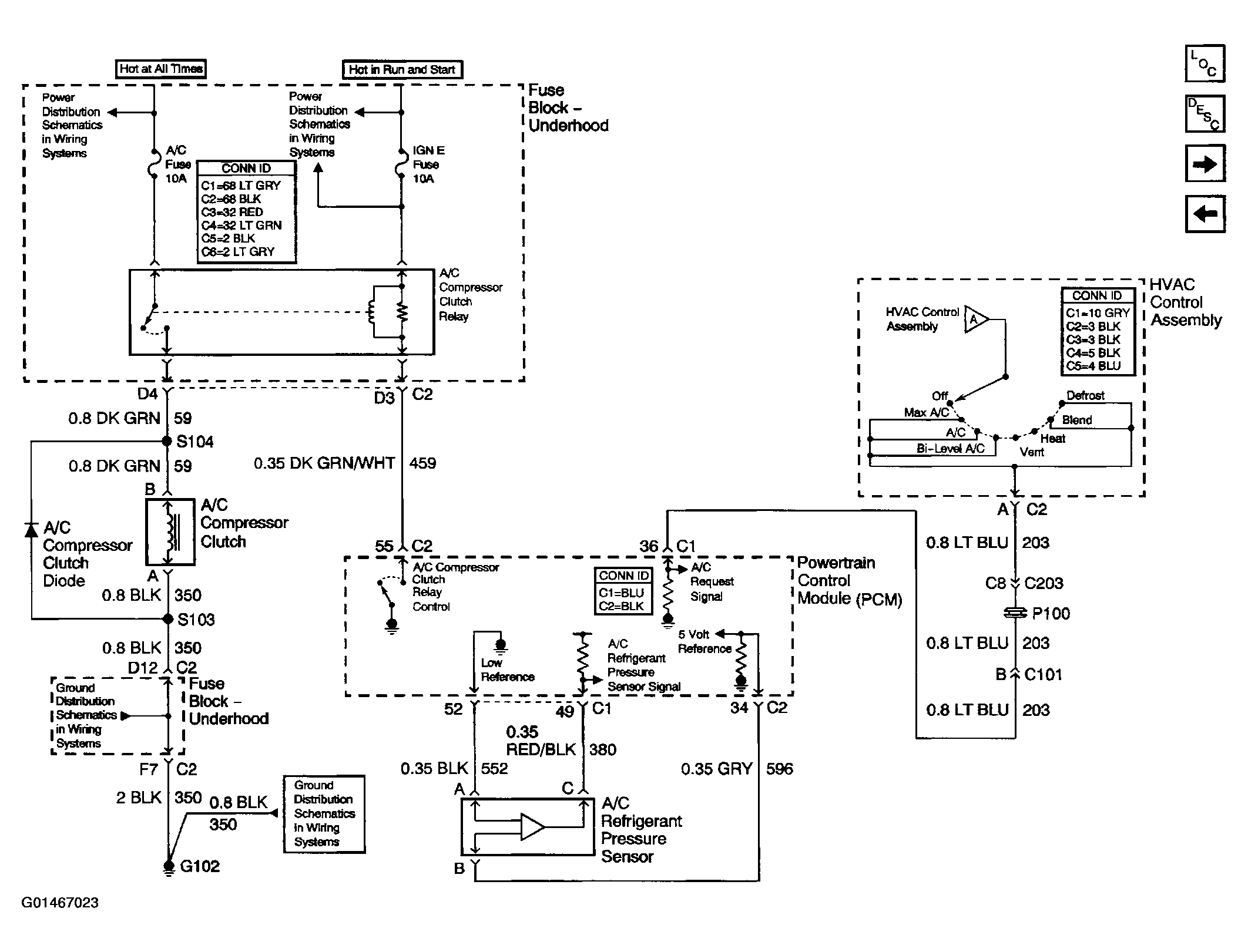

Fig 4: HVAC Schematics (Compressor Controls - 4.3L)

Courtesy of GENERAL MOTORS CORP.

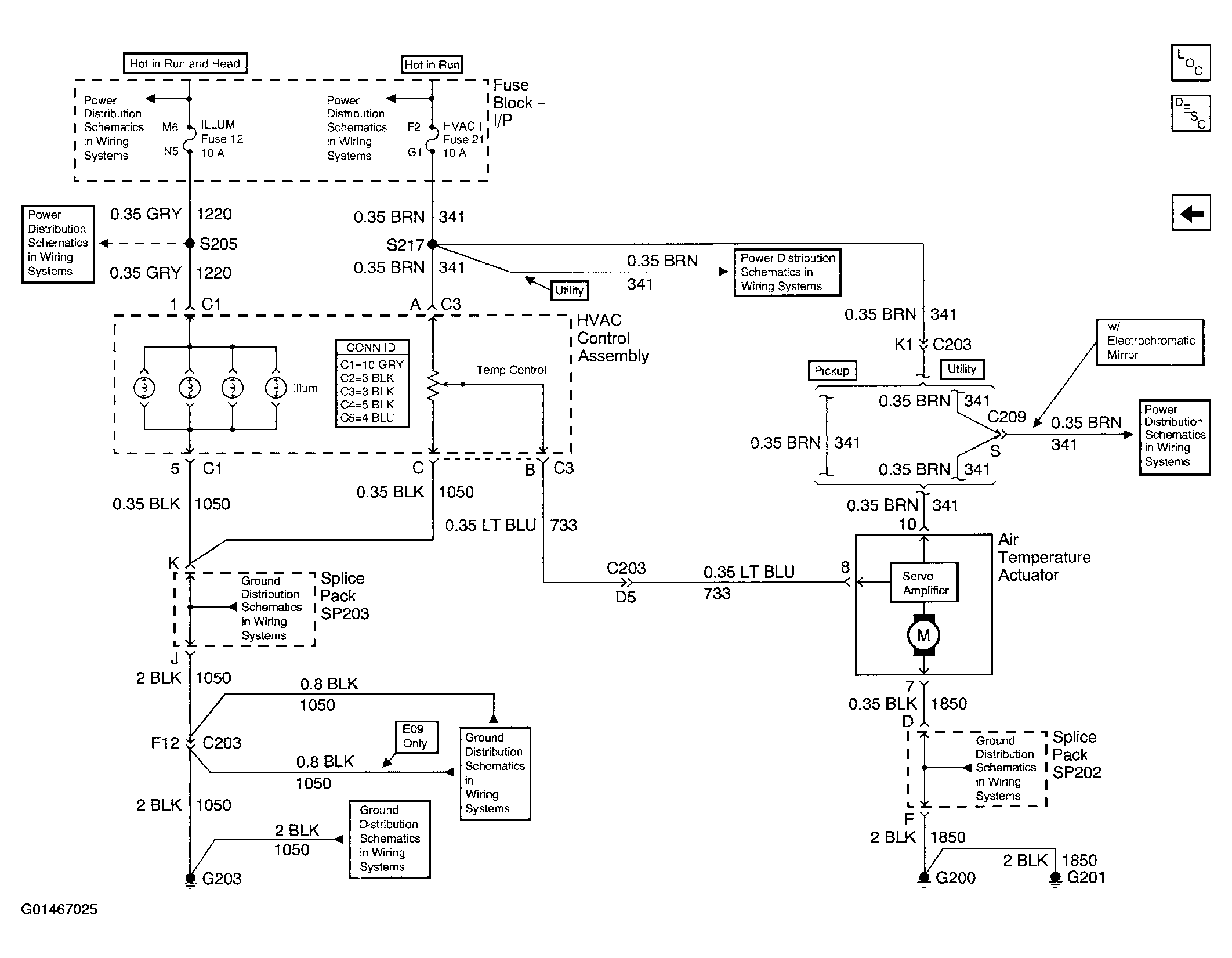

Fig 5: HVAC Schematics (Air Delivery/Temperature Controls (C42))

Courtesy of GENERAL MOTORS CORP.

Fig 6: HVAC Schematics (Air Delivery/Temperature Controls (C60))

Courtesy of GENERAL MOTORS CORP.
