Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clamp the J 34992  in a vise.
  2. Use thumb screws in order to attach the compressor to the holding fixture.

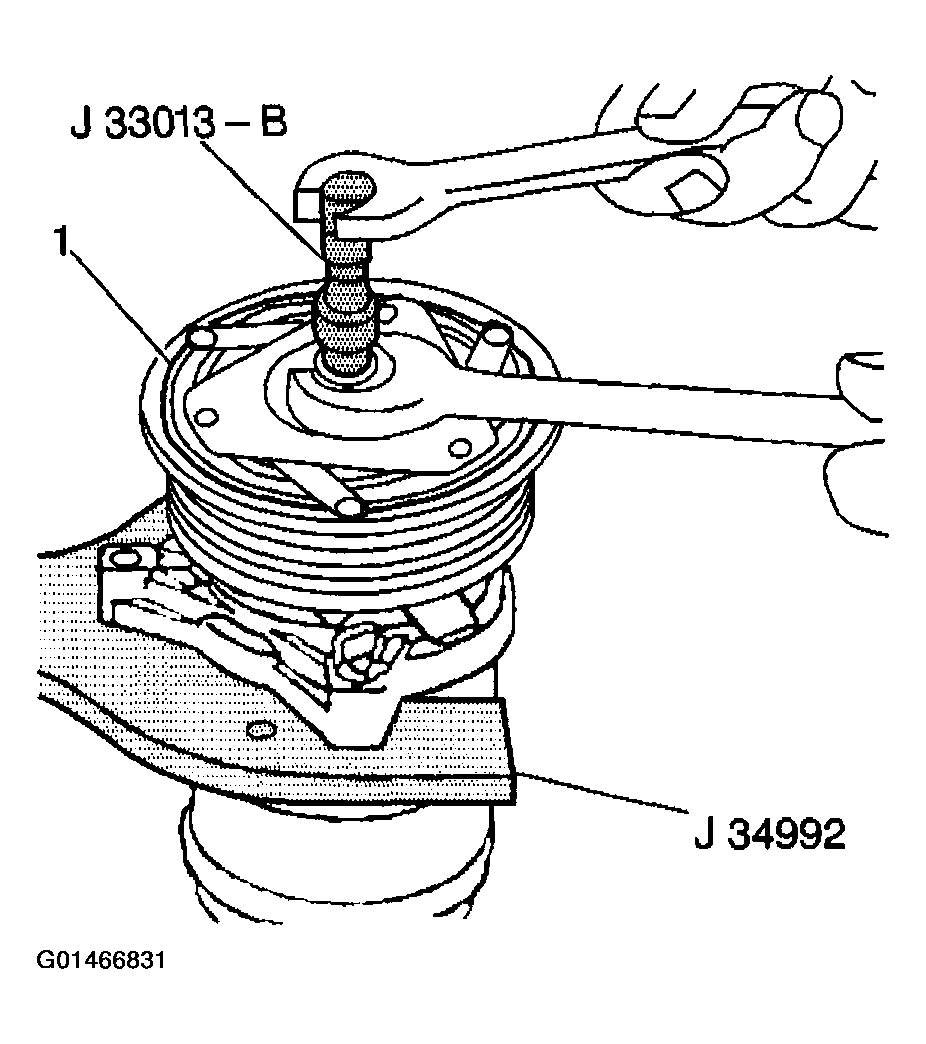

    Fig 1: Clutch Plate & Hub Assembly
    G01466831Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not drive or pound on the clutch hub or shaft. Internal damage to the compressor may result. The forcing tip on the J 33013-B remover/installer center screw must be flat or the end of the shaft/axial plate assembly will be damaged.
  3. Ensure that the center screw forces the tip to thrust against the end of the shaft.
  4. Thread the J 33013-B  into the hub.
  5. While holding the body of J 33013-B  of the remover with a wrench, turn the center screw into the remover body in order to remove the clutch plate and hub assembly (1).
  6. Remove the shaft key. Retain the shaft key for reassembly.
