Oil Cooler Pipes: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.
  1. Install the TOC hose connector retainers. See Fig 1 .
  2. Install the TOC hoses to the radiator. See Figure .
  3. Install the TOC inlet hose to the transaxle. See Figure .
  4. Install the TOC outlet hose to the transaxle. See Figure .
  5. Install the TOC hose retainer and the bolt. See Figure . Tighten the TOC hose retainer bolt to specification. See TORQUE SPECIFICATIONS  .
  6. Lower the vehicle.
    7. CAUTION: DO NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
  7. Adjust the fluid level. See CHECKING FLUID LEVEL & CONDITION  under LUBRICATION.

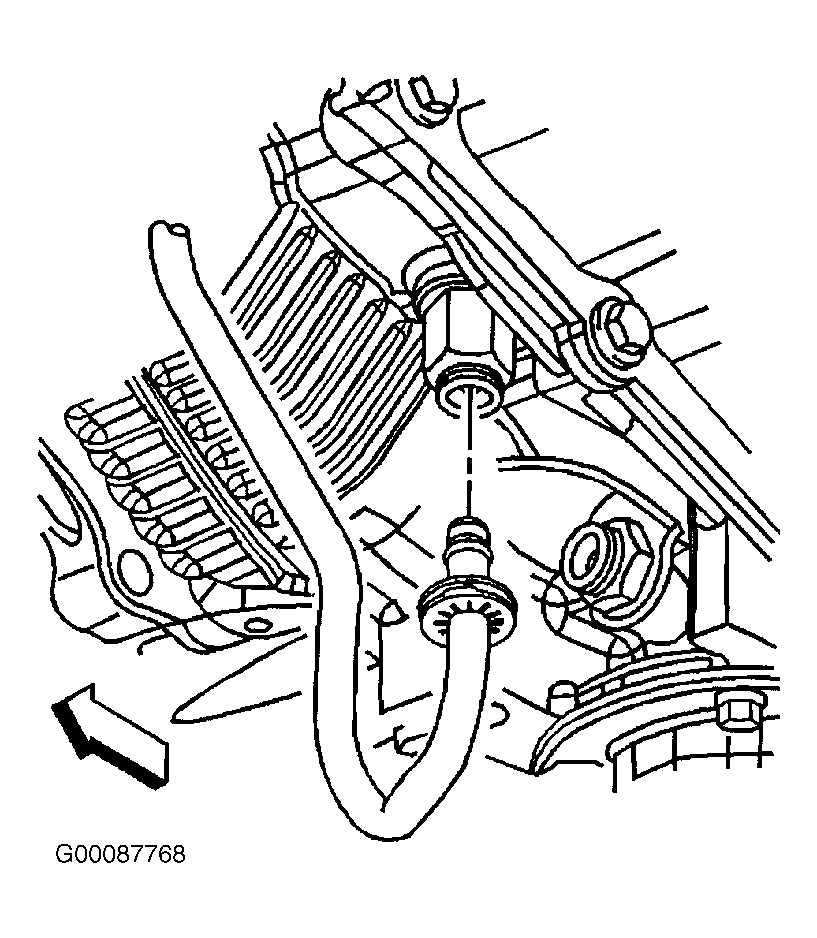

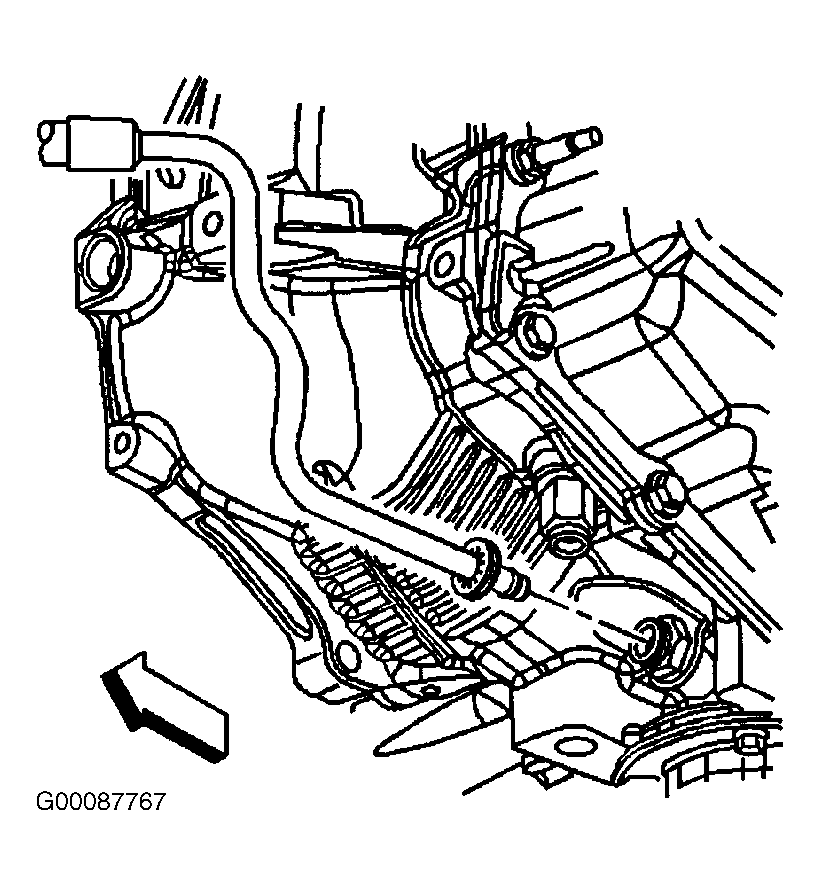

Fig 1: Installing Oil Cooler Hose Retainer
G00087769Courtesy of GENERAL MOTORS CORP.
