Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
NOTE: Never operate the starter motor for more than 30 seconds at a time. Allow it to cool for at least two minutes. Overheating, caused by too much cranking, will damage the starter motor.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Raise the vehicle and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  3. Remove the engine to transmission brace rod mounting bolts.
  4. Remove the engine to transmission brace rod.

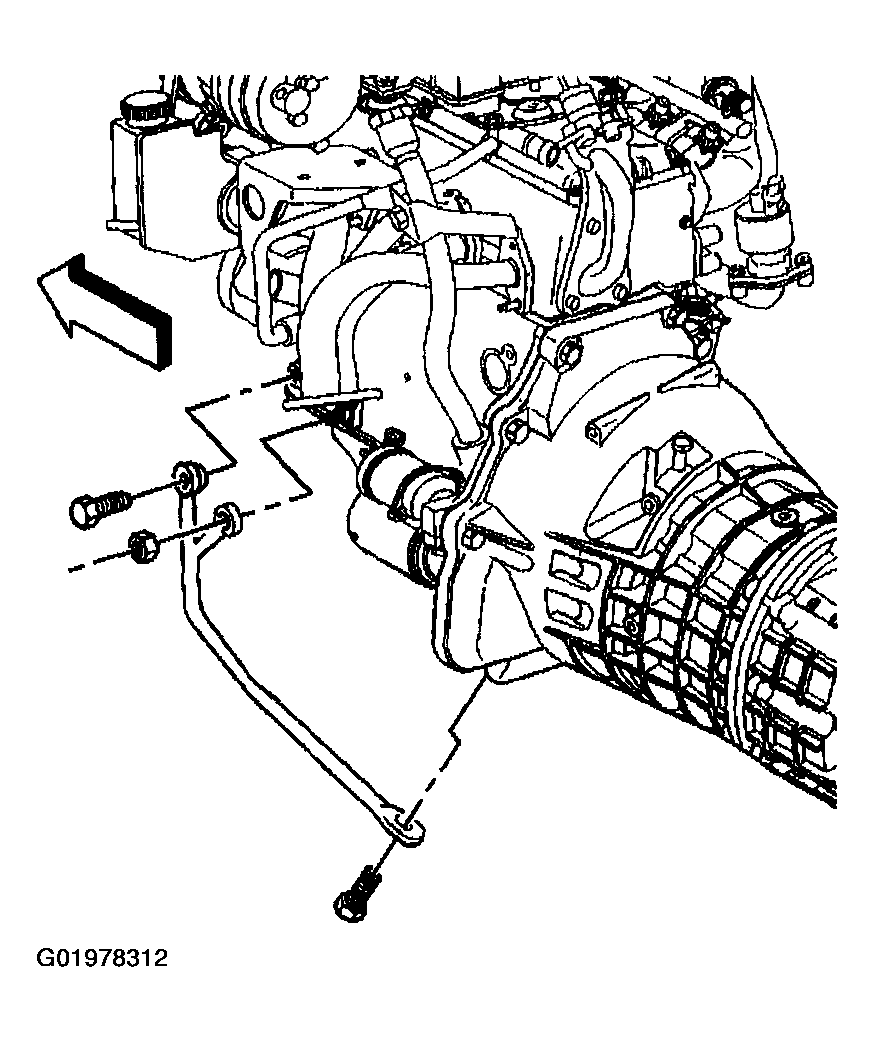

    Fig 1: Removing Engine To Transmission Brace Rod
    G01978312Courtesy of GENERAL MOTORS CORP.
  5. Remove the starter heat shield.

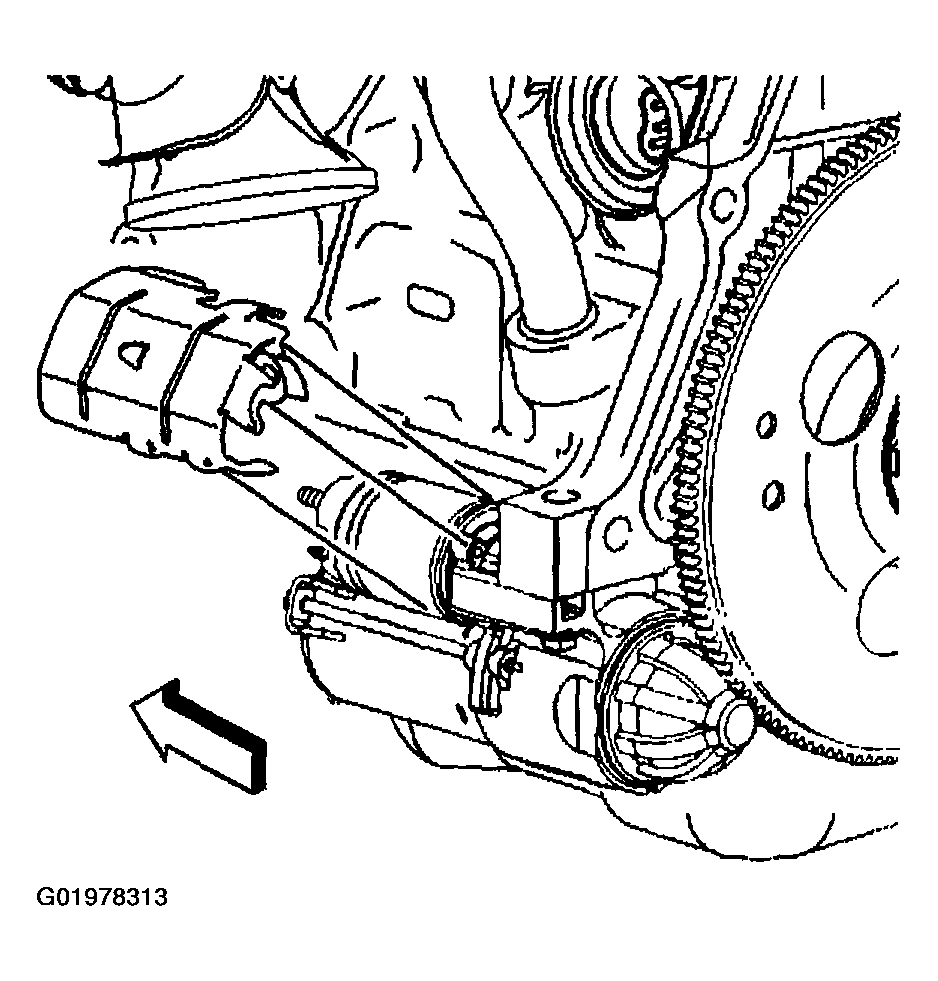

    Fig 2: Removing Starter Heat Shield
    G01978313Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the wires from the starter solenoid.

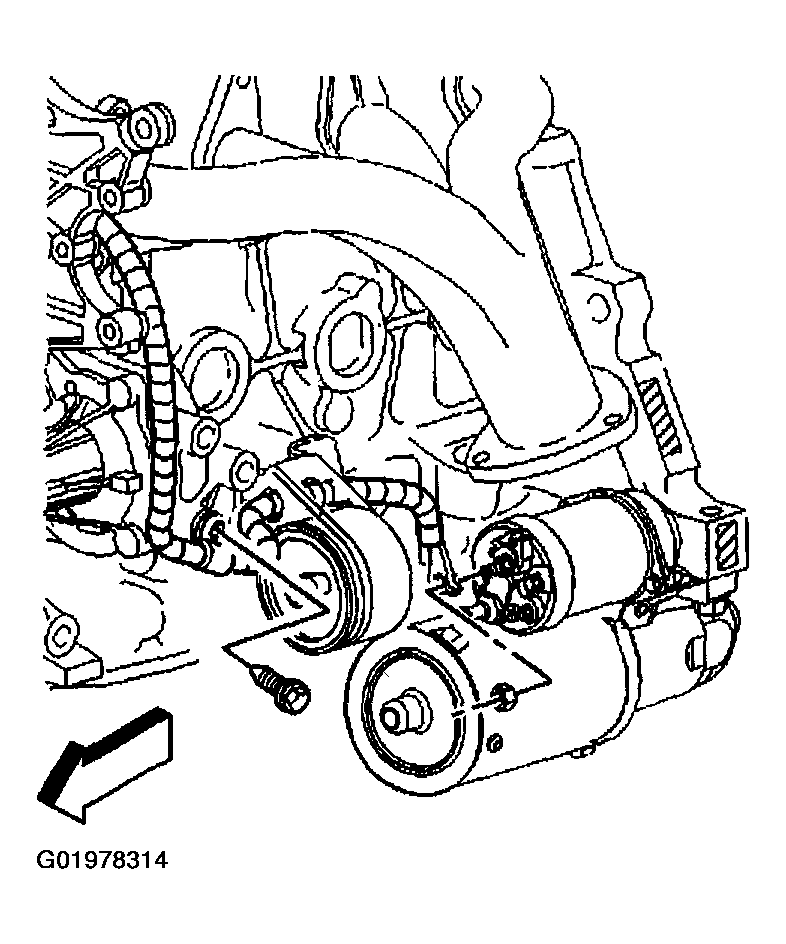

    Fig 3: Disconnecting Wires From Starter Solenoid
    G01978314Courtesy of GENERAL MOTORS CORP.
  7. Remove the starter motor mounting bolts.
  8. Remove the starter from the vehicle.

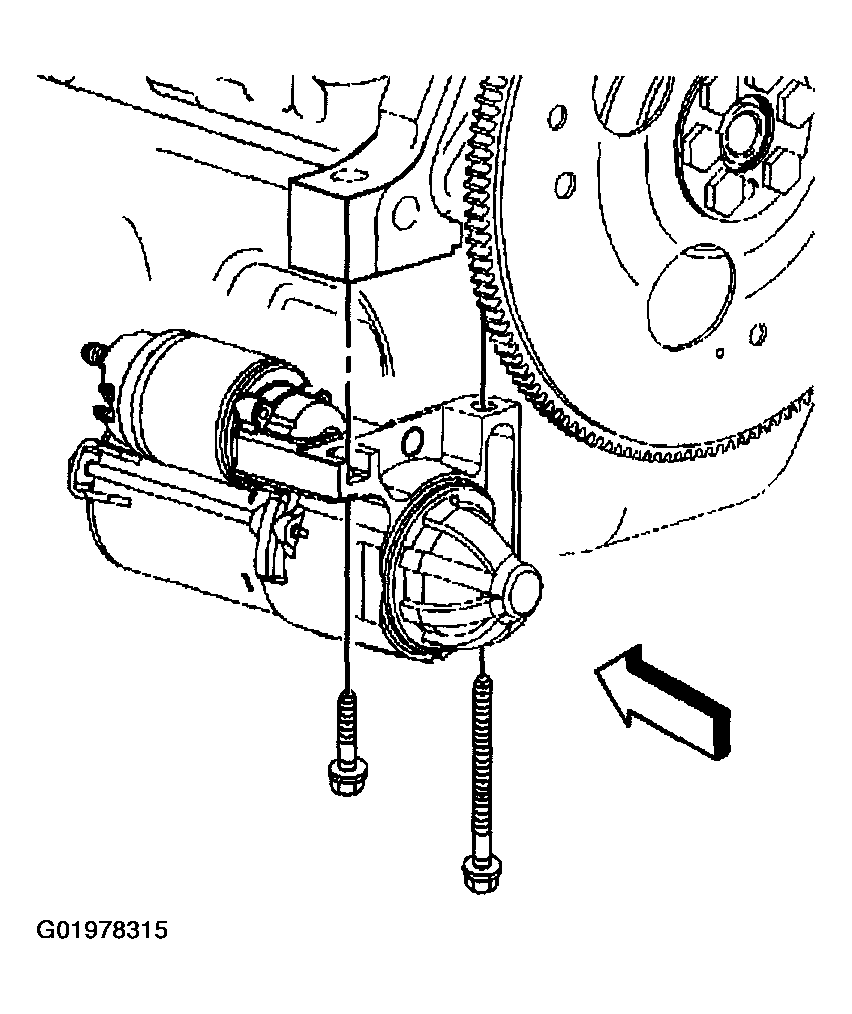

    Fig 4: Removing Starter From Vehicle
    G01978315Courtesy of GENERAL MOTORS CORP.
