Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump drive. Do this by twisting the oil pump drive into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil pump drive bolt.

    Tighten

    Tighten the oil pump drive bolt to 25 N.m (18 lb ft).

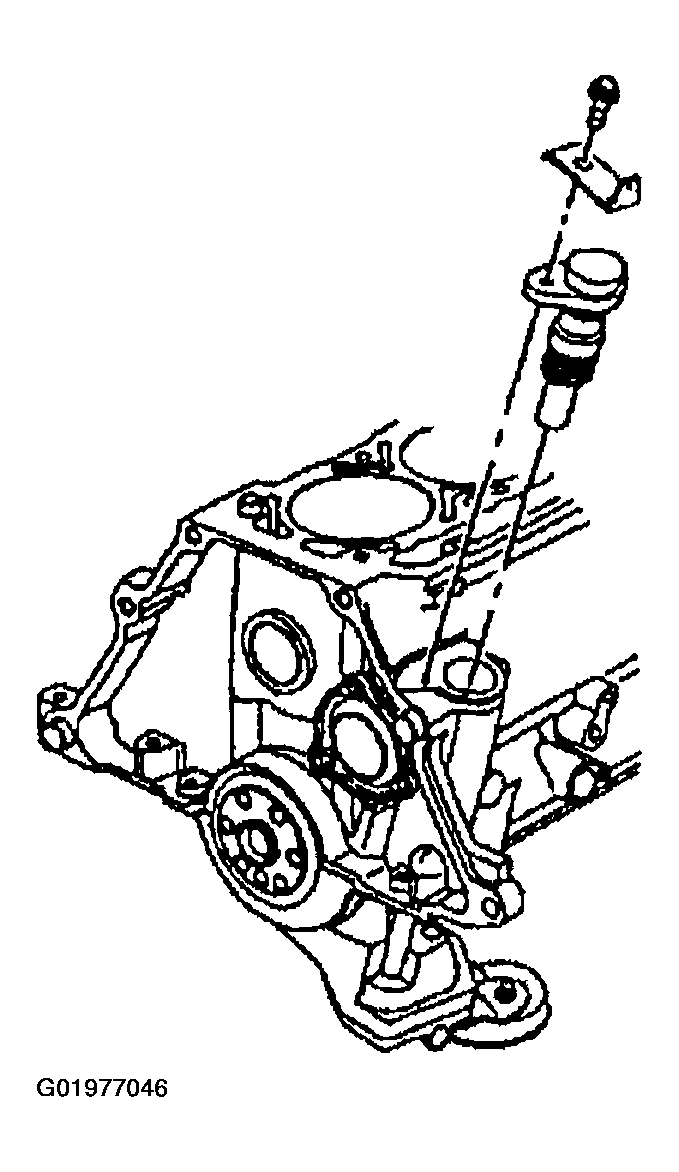

    Fig 1: Installing Oil Pump Drive
    G01977046Courtesy of GENERAL MOTORS CORP.
  3. Heat the oil pump drive shaft retainer in hot water.
  4. Install the oil pump drive shaft retainer on the oil pump drive shaft.

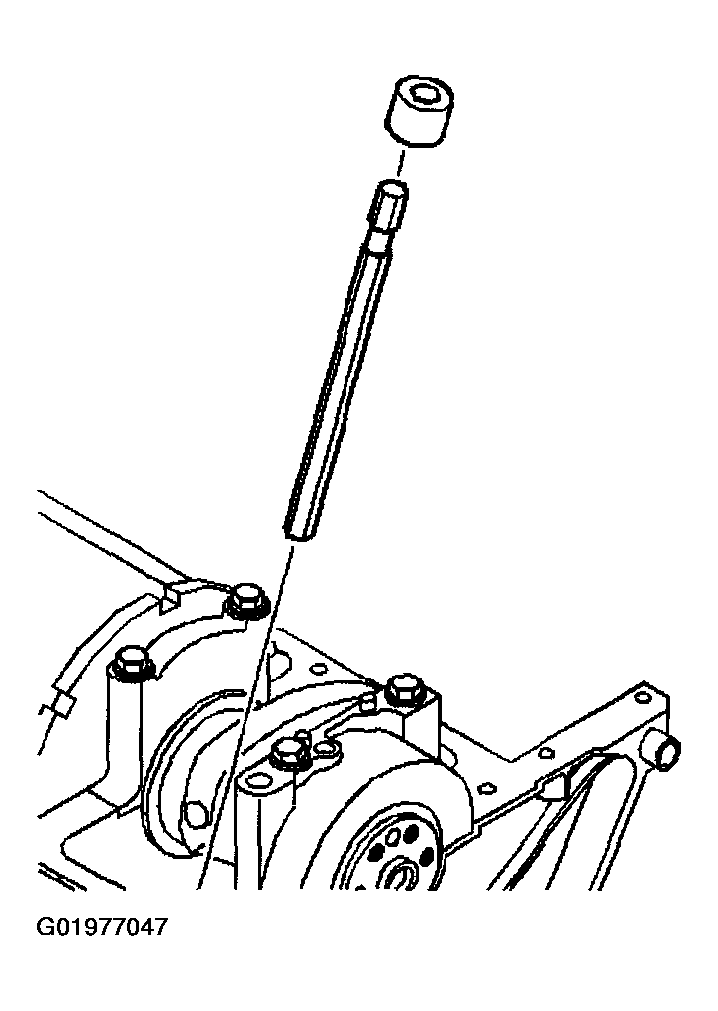

    Fig 2: Installing Oil Pump Drive Shaft Retainer On Oil Pump Drive Shaft
    G01977047Courtesy of GENERAL MOTORS CORP.

    Important:  Do not crack the oil pump drive shaft retainer when installing the oil pump drive shaft.

  5. Install the oil pump drive shaft into the oil pump.

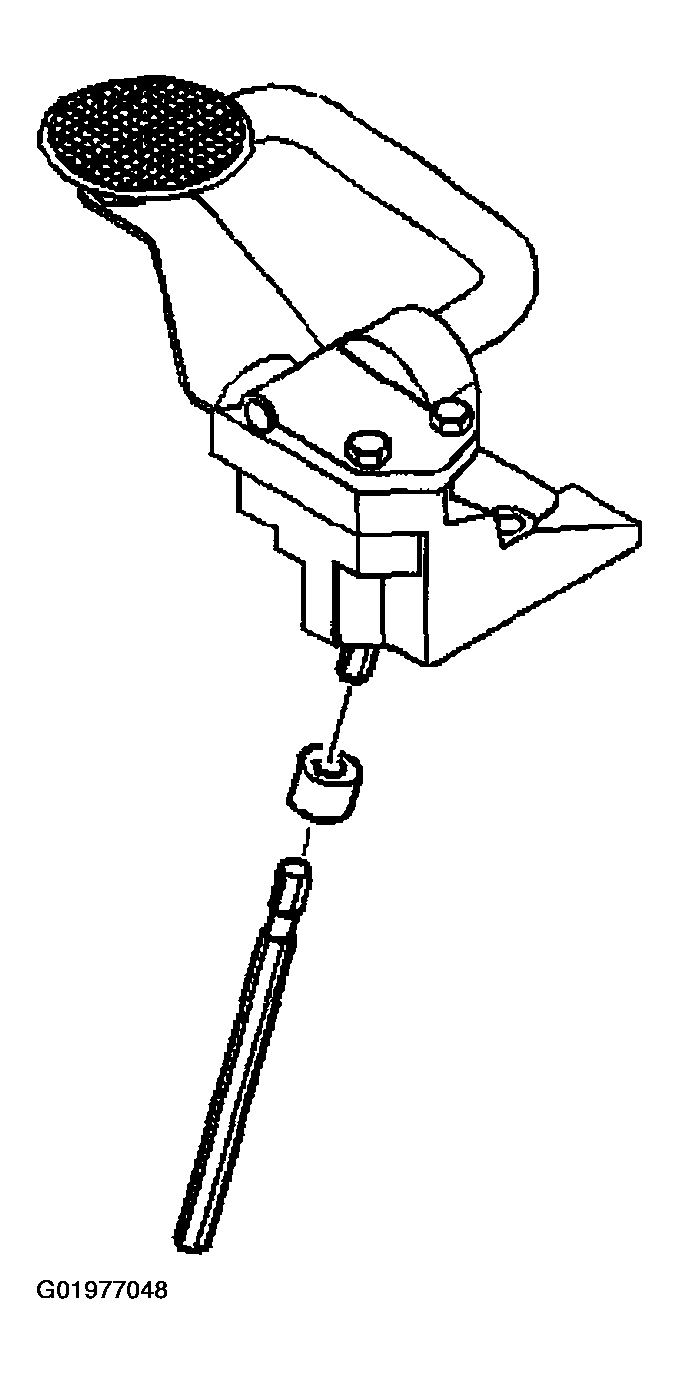

    Fig 3: Installing Oil Pump Drive Shaft Into Oil Pump
    G01977048Courtesy of GENERAL MOTORS CORP.
  6. Install the oil pump.
  7. Install the bolt that attaches the oil pump to the rear main bearing cap.

    Tighten

    Tighten the bolt that attaches the oil pump to the rear main bearing cap to 43 N.m (32 lb ft).

  8. Install the engine oil pan. Refer to OIL PAN REPLACEMENT  .

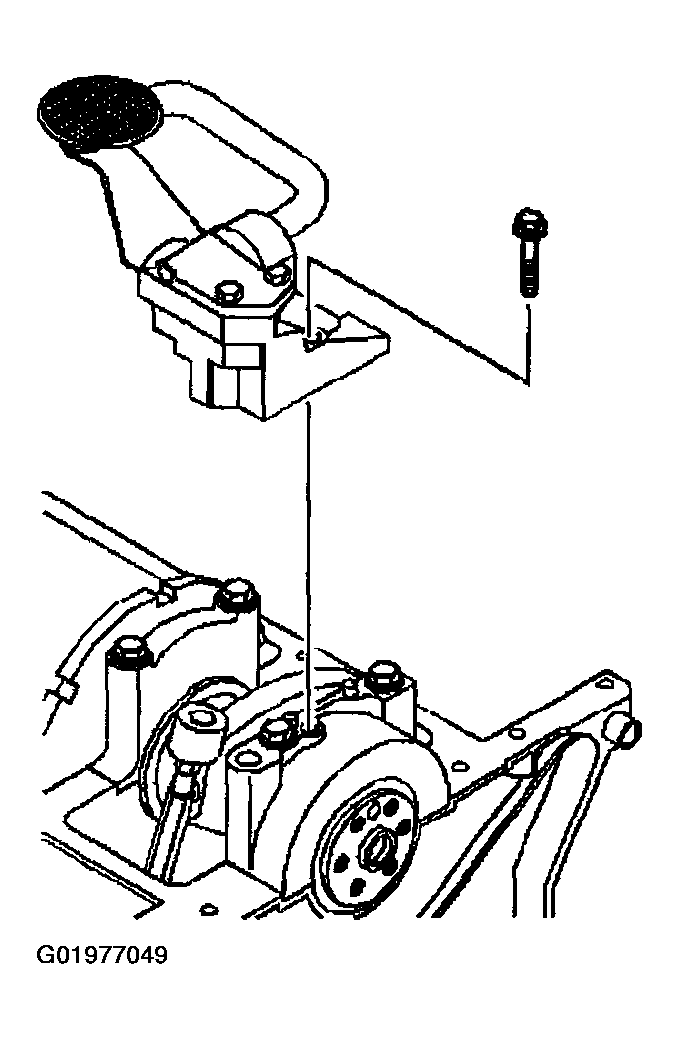

    Fig 4: Installing Oil Pump
    G01977049Courtesy of GENERAL MOTORS CORP.
