Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not crack the oil pump drive shaft retainer.

  1. Install the oil pump drive by twisting the oil pump drive into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil pump drive bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  3. Install the intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT  .

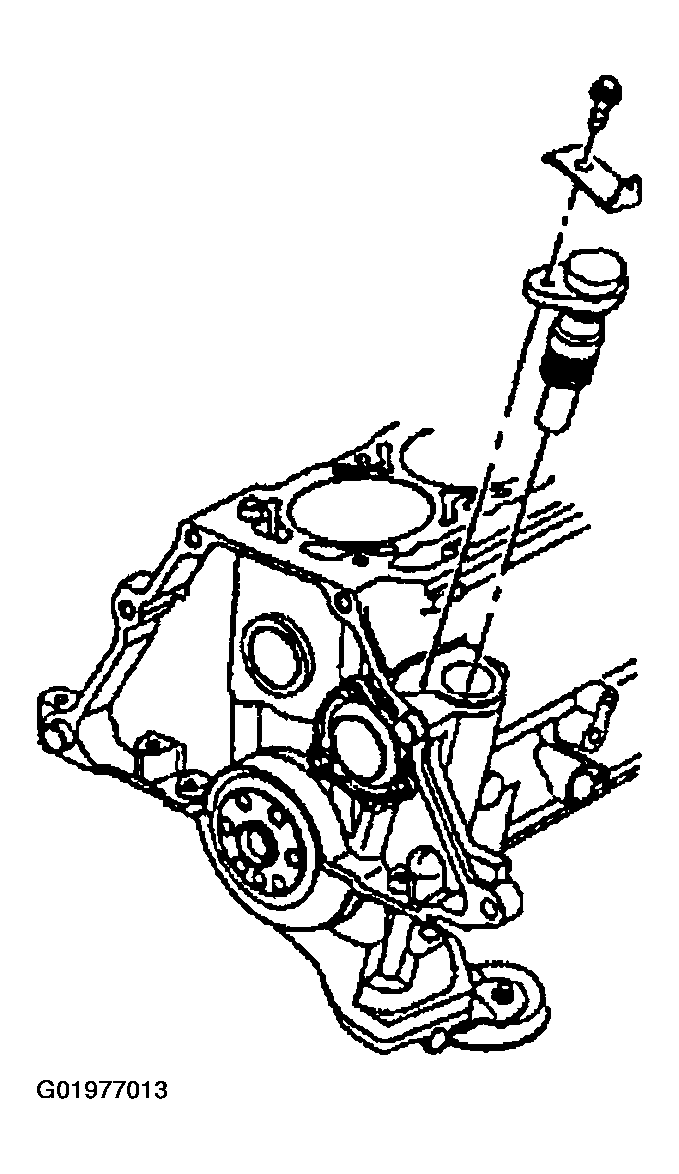

    Fig 1: Installing Oil Pump Drive
    G01977013Courtesy of GENERAL MOTORS CORP.
