Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator nut and the bracket from the exhaust manifold.

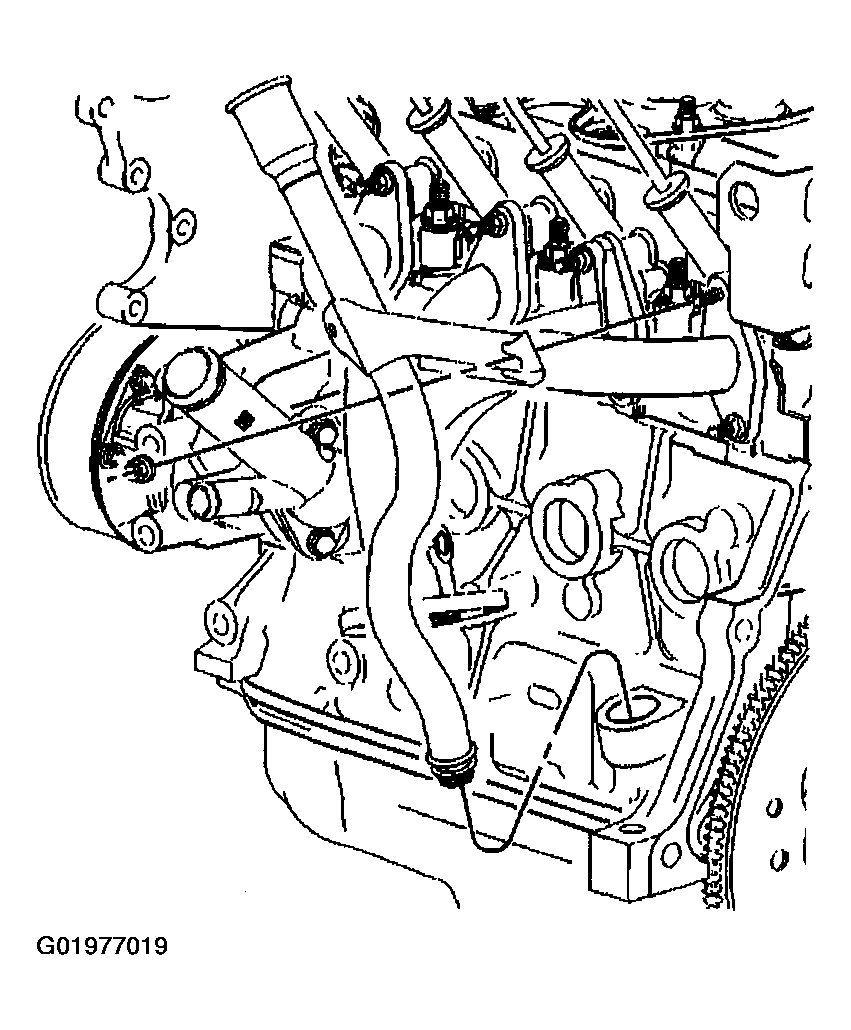

    Fig 1: Removing Oil Level Indicator Nut And Bracket From Exhaust Manifold
    G01977019Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level indicator bolt from the heater hose pipe.
  4. Remove the oil level indicator tube and seal.

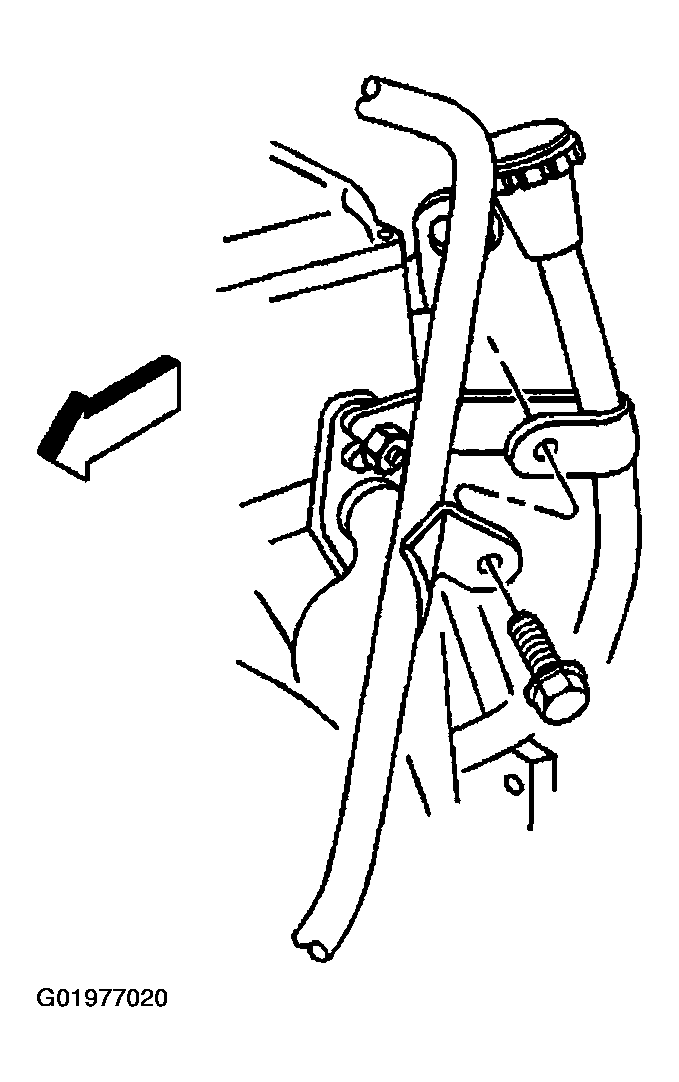

    Fig 2: Removing Oil Level Indicator Bolt From Heater Hose Pipe
    G01977020Courtesy of GENERAL MOTORS CORP.
