Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. From under the vehicle, install the drive belt tensioner assembly and bolt to the engine.

    Ensure that the pin on the tensioner fits into the locating hole on the engine front cover.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .

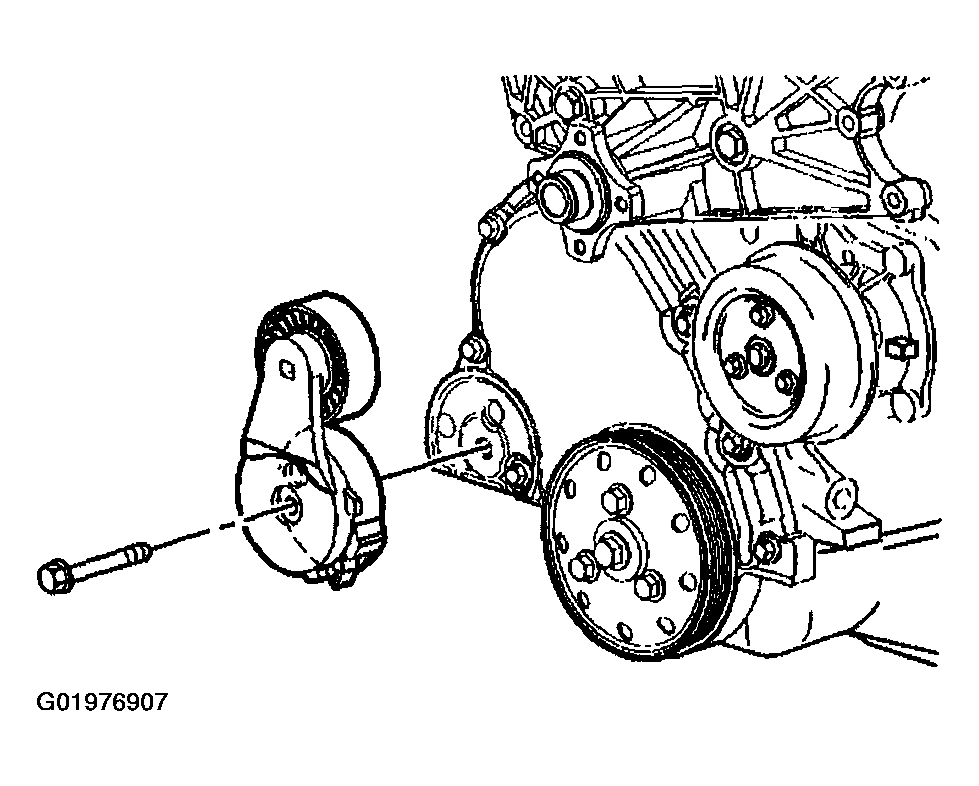

    Fig 1: Installing Drive Belt Tensioner Assembly
    G01976907Courtesy of GENERAL MOTORS CORP.
