Oil Pan Cleaning and Inspection

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil pan mating surface.
  2. Clean the oil pan. Remove all sludge and oil deposits.
  3. Inspect the threads for the engine oil drain plug.
  4. Inspect the oil pan for dents or distortion.
  5. Repair or replace the oil pan if necessary.

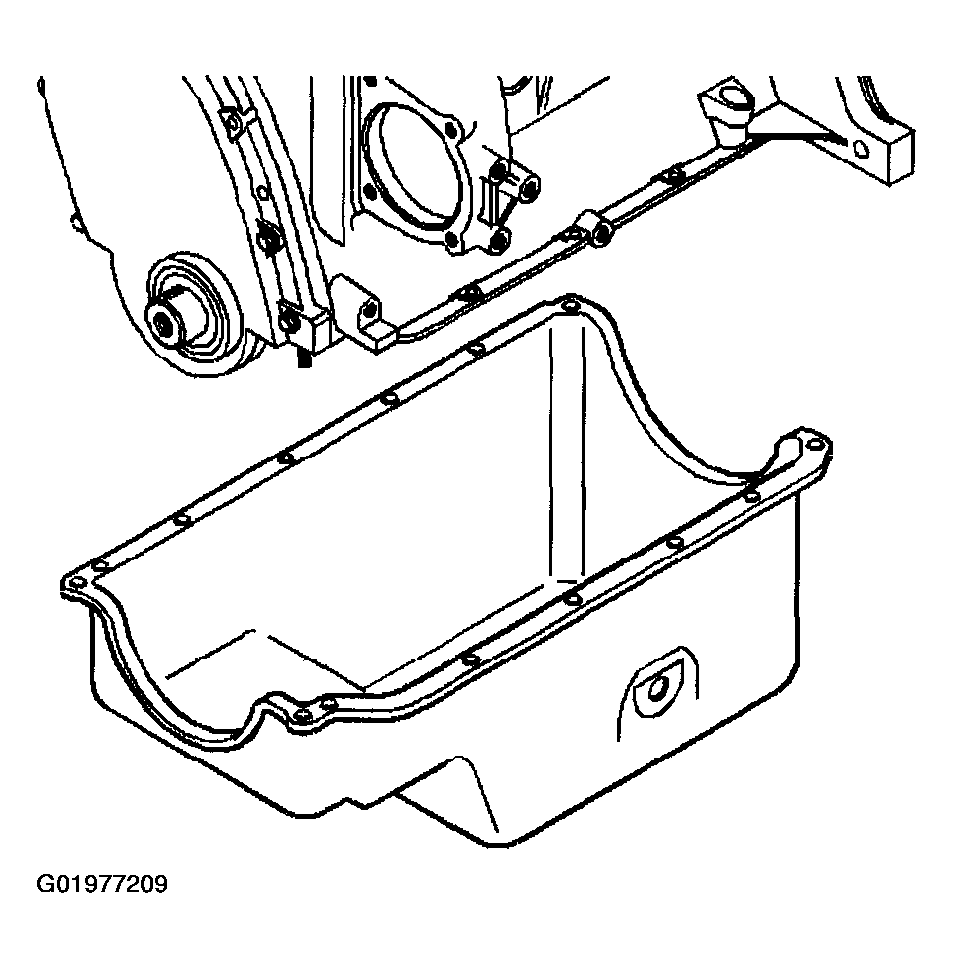

    Fig 1: Inspecting Oil Pan
    G01977209Courtesy of GENERAL MOTORS CORP.
