Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case right rear speed sensor.

    Tighten

    Tighten the transfer case right rear speed sensor to 15 N.m (11 lb ft).

  2. Install the transfer case right rear speed sensor electrical connector.
  3. Install the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  4. Lower the vehicle. Refer to JACKING AND LIFTING in General Information.

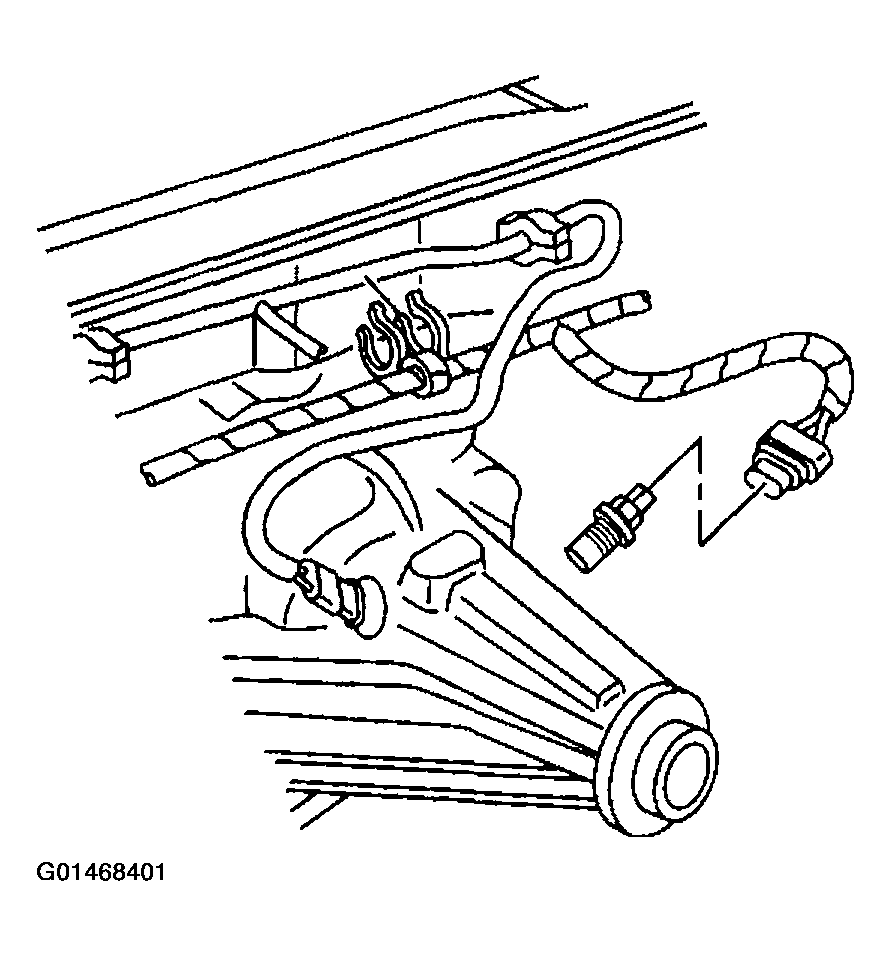

    Fig 1: Installing Transfer Case Right Rear Speed Sensor Electrical Connector
    G01468401Courtesy of GENERAL MOTORS CORP.
