Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the bearing with axle lubricant. Use the proper fluid.
  2. Install the clutch shaft pilot bearing using the J 33842  .
  3. Install the clutch shaft to the differential carrier assembly.
  4. Install the inner axle shaft and housing assembly. Refer to INNER SHAFT AND/OR HOUSING REPLACEMENT - FRONT DRIVE AXLE (S4WD)  or INNER SHAFT AND/OR HOUSING REPLACEMENT - FRONT DRIVE AXLE (A4WD)  .

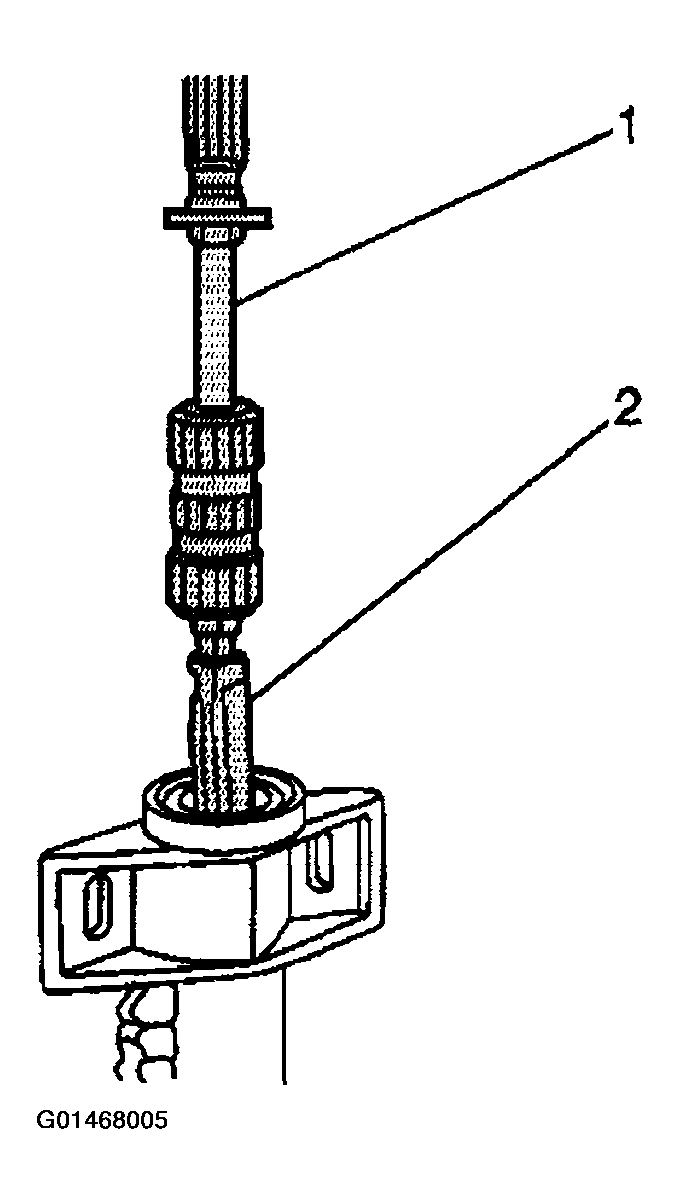

    Fig 1: Removing Left Or Right Wheel Drive Shaft
    G01468005Courtesy of GENERAL MOTORS CORP.
