Tire and Wheel Runout Specifications

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

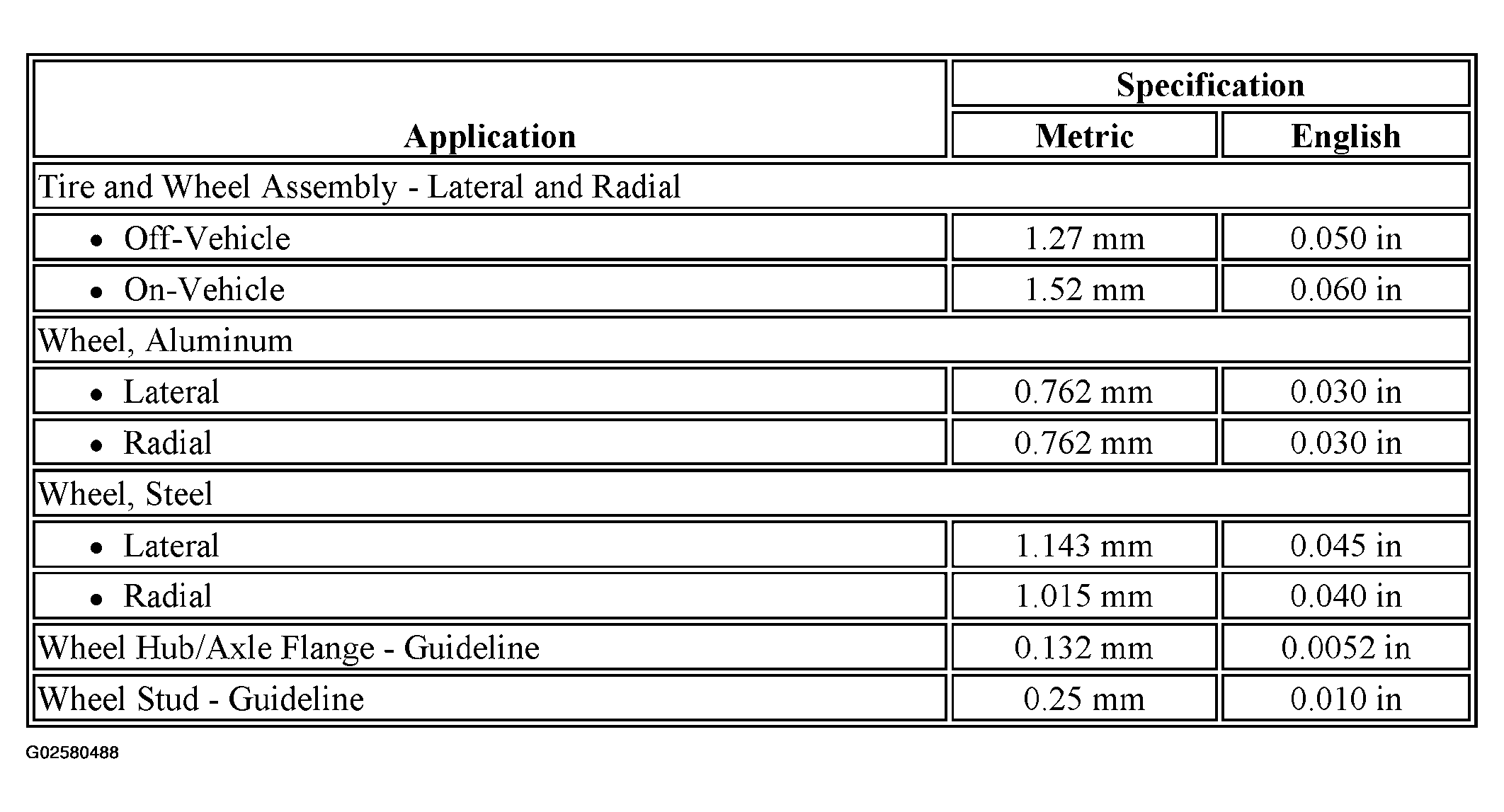

Fig 1: Tire and Wheel Runout Specifications
G02580488Courtesy of GENERAL MOTORS CORP.
